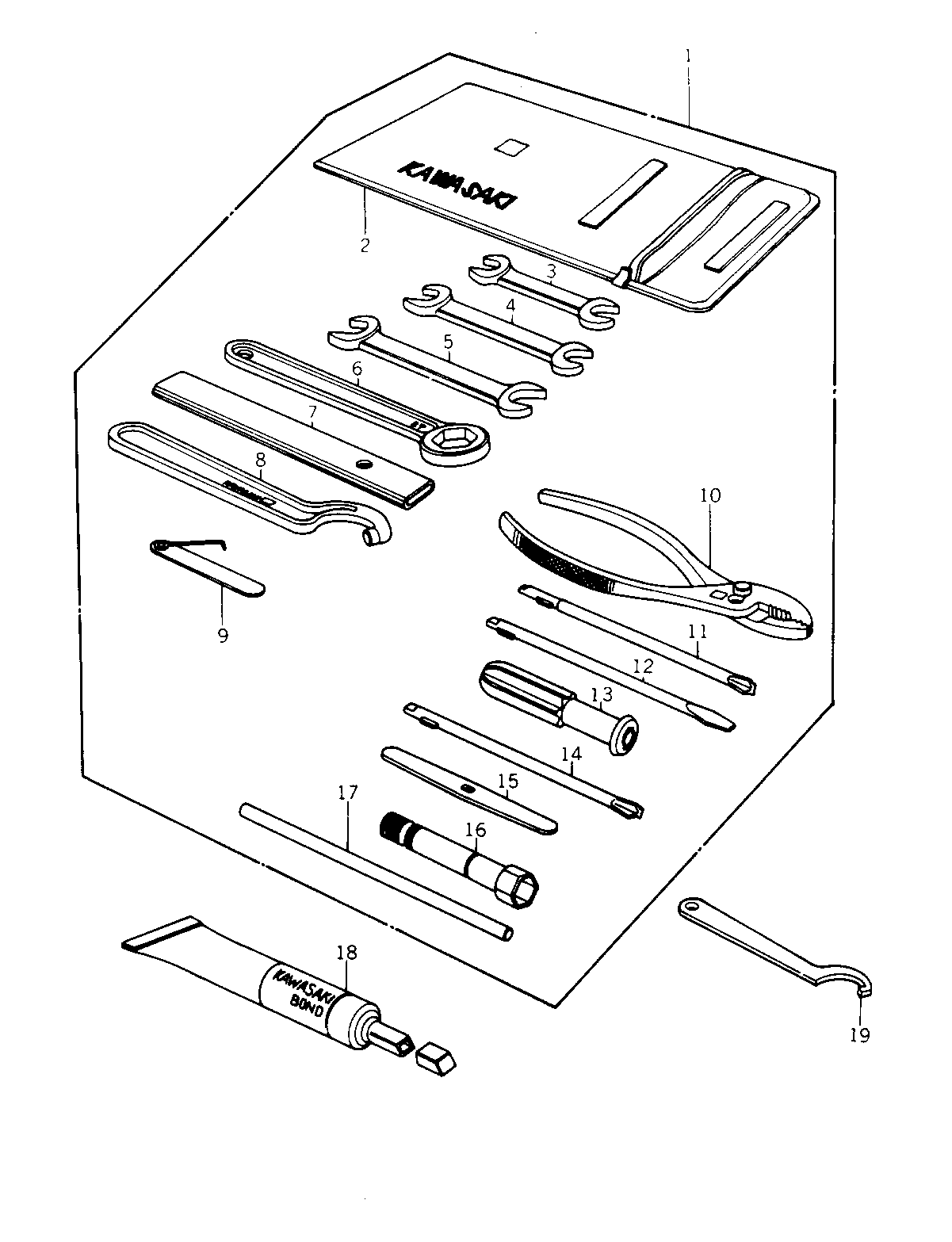

1979 KZ1000 LTD - OWNER TOOLS (KZ1000-B3)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
TOOL KIT | 1 | 56007-049 | 1 | ||
.BAG,TOOL | 2 | 56008-006 | 1 | ||
.WRENCH,OPEN,8X10 | 3 | 92126-001 | 1 | ||
.WRENCH,OPEN END,12X13 | 4 | 92126-002 | 1 | ||
.TOOL-WRENCH,OPEN END, | 5 | 92110-1153 | 1 | ||
.TOOL-WRENCH,BOX END,2 | 6 | 92110-1147 | 1 | ||
.TOOL-WRENCH,BOX END,2 | 7 | 92111-004 | 1 | ||
.92110-1035 (Canada) | 8 | 92108-007 | 1 | ||
.GAUGE,THICKENSS | 9 | 92128-001 | 1 | ||
.PLIERS,160MM | 10 | 92112-003 | 1 | ||
.TOOL-DRIVER | 11 | 92107-1052 | 1 | ||
.92107-1052 (Canada) | 12 | 92107-007 | 1 | ||
.GRIP,SCREW DRIVER | 13 | 92106-1001 | 1 | ||
.92107-1002 (Canada) | 14 | 92107-008 | 1 | ||
.LEVER,SCREW DRIVER | 15 | 92111-006 | 1 | ||
.WRENCH,SPARK PLUG | 16 | 92108-008 | 1 | ||
.LIQUID GASKET | 17 | 92104-002 | 1 | ||
LIQUID GASKET | 18 | 92104-002 | 10 | ||
LIQUID GASKET | 18 | 92104-002 | 1 | ||
ADJUSTER,REAR SHOCK | 19 | 92108-014 | 1 |
