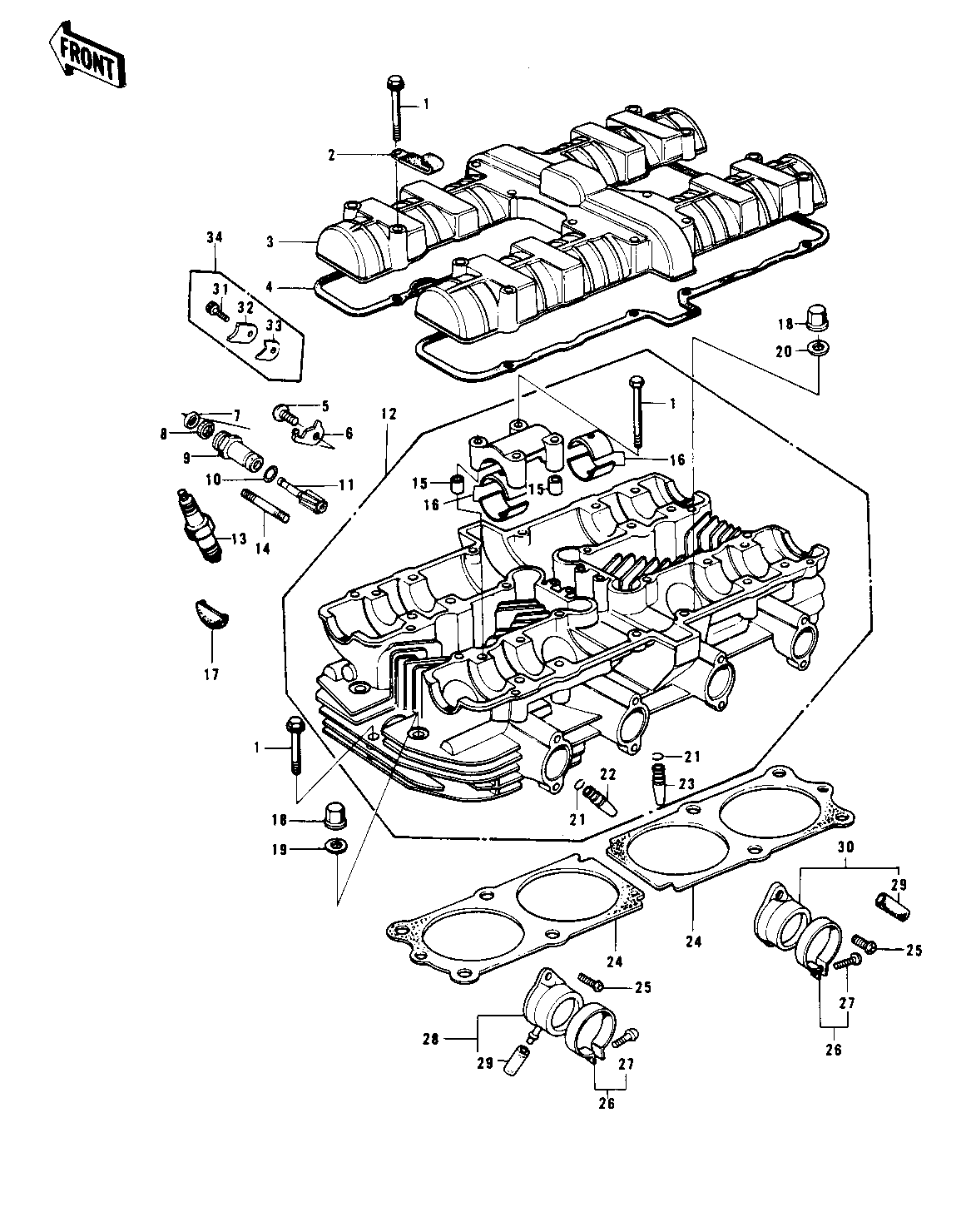

1978 Police 1000 - CYLINDER HEAD/COVER ('78 C1/C1A)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT,HEX HEAD,6X45 | 1 | 92003-092 | 34 | ||
CLAMP,WIRING HARNESS | 2 | 21126-008 | 2 | ||
COVER,CYLINDER HEAD | 3 | 11022-012-2H | 1 | ||
GASKET,CYL HEAD COVE | 4 | 11023-006 | 1 | ||
SCREW PAN HEAD 6X10 | 5 | 220B0610 | 1 | ||
PLATE,STOPPER | 6 | 13169-015 | 1 | ||
GASKET,TACHOMETER GE | 7 | 92065-103 | 1 | ||
OIL SEAL | 8 | 92050-075 | 1 | ||
GUIDE,TACHOMETER GEA | 9 | 92087-010 | 1 | ||
RING-O,10MM | 10 | 92055-1149 | 1 | ||
GEAR,TACHOMETER,10T | 11 | 13223-011 | 1 | ||
CYLINDER HEAD,BARREL | 12 | 11002-1011-2H | 1 | ||
SPARK PLUG B8ES | 13 | B8ES | 4 | ||
STUD,8X30 | 14 | 92004-1069 | 8 | ||
PIN-DOWEL | 15 | 92042-007 | 8 | ||
BUSHING,CAMSHAFT | 16 | 13034-030 | 16 | ||
PLUG,CAM SHAFT | 17 | 92066-017 | 4 | ||
NUT,CYLINDER HEAD | 18 | 92015-076 | 12 | ||
WASHER,PLAIN,10MM | 19 | 92022-215 | 4 | ||
WASHER PLAIN 10MM | 20 | 411B1000 | 8 | ||
CIRCLIP-VALVE | 21 | 92036-023 | 8 | ||
GUIDE,INLET VALVE | 22 | 12013-009 | 4 | ||
GUIDE,EXHAUST VALVE | 23 | 49002-1002 | 4 | ||
GASKET,CYLINDER HEAD | 24 | 11004-076 | 2 | ||
SCREW PAN HEAD 6X18 | 25 | 220B0618 | 8 | ||
CLAMP,HOLDER | 26 | 92037-077 | 4 | ||
SCREW,PAN HEAD | 27 | 92011-037 | 4 | ||
HOLDER,CARBURETOR,L. | 28 | 16065-029 | 2 | ||
RUBBER PLUG | 29 | 92068-006 | 4 | ||
HOLDER-R.H CARBRETOR | 30 | 16065-028 | 2 | ||
BOLT,6X14 | 31 | 120P0614 | 1 | ||
HOLDER,TACHOMETER2.3 | 32 | 13091-1008 | 1 | ||
HOLDER,TACHOMETR,3.2 | 33 | 13091-1009 | 1 | ||
HOLDER SET,TACHOMETE | 34 | 13091-5001 | 1 | ||
CAP,RUBBER TACH DRIV | 35 | 11012-4001 | 1 |
