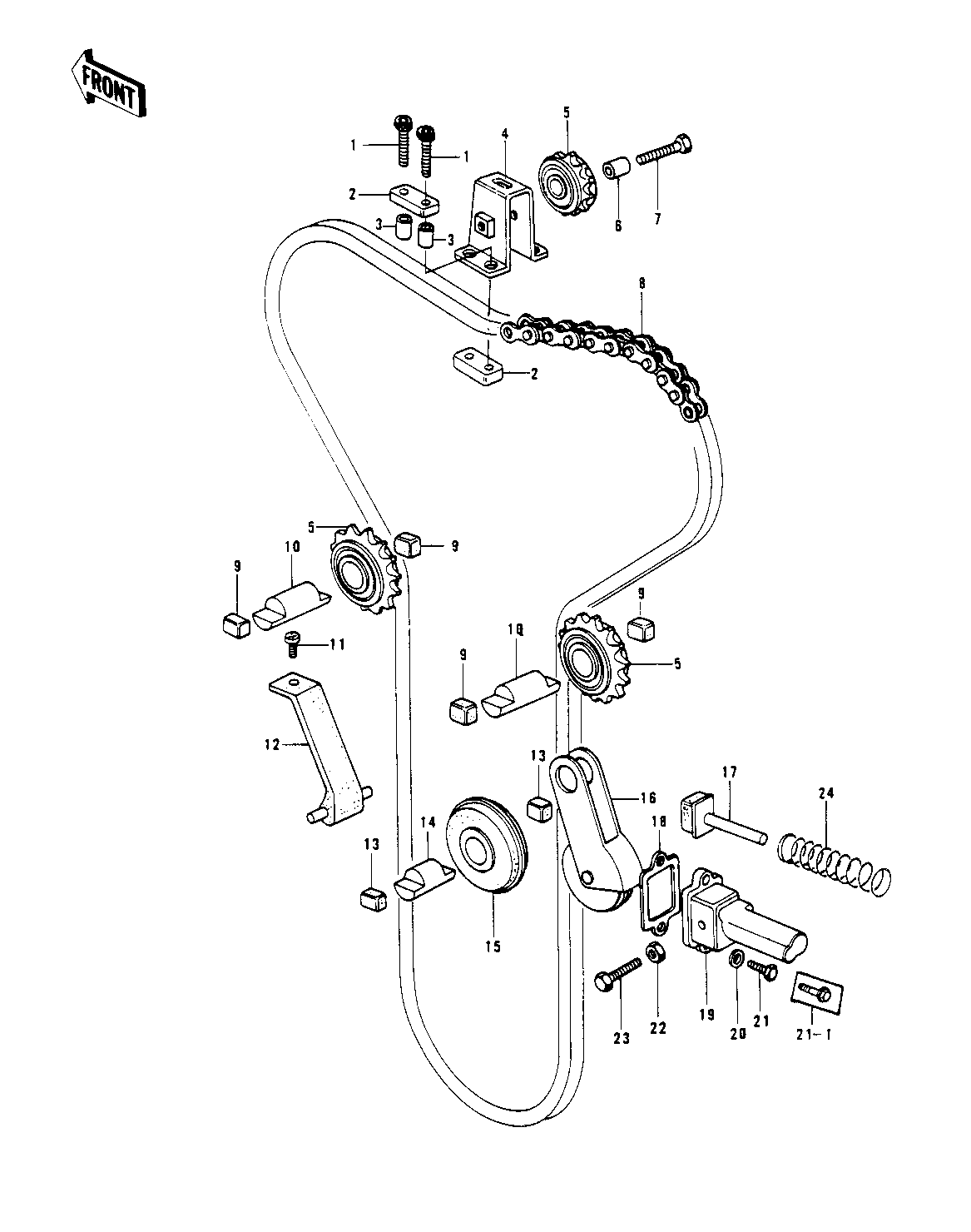

1978 Police 1000 - CAM CHAIN/TENSIONER ('78 C1/C1A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 1200632 4
DAMPER RUBBER 2 92075-289 4
COLLAR,8X15 3 92027-1079 4
IDLER ASSY,CAM CHAIN 4 12053-1016 1
IDLER ASSY 5 12057-002 3
COLLAR,IDLER 6 92027-261 1
BOLT,FLANGED,6X25 7 130G0625 1
CHAIN,CAM SHAFT 8 21070-003 1
RUBBER,GUIDE ROLLAR 9 92075-232 4
SHAFT,GUIDE ROLLER 10 12052-005 2
SCREW PAN HEAD 6X10 11 220B0610 1
GUIDE,CAM CHAIN 12 12053-019 1
DAMPER RUBBER 13 92075-123 2
SHAFT,CAM CHAIN GUID 14 12052-003 1
ROLLER,CAM CHAIN GUI 15 12055-002 1
TENSIONER ASSY,CHAIN 16 12048-001 1
PUSH ROD,CAM CHAIN 17 12054-001 1
GASKET,TENSIONER 18 11009-1980 1
HOLDER,TENSIONER 19 12049-1003 1
WASHER PLAIN 6MM 20 410B0600 2 NOT USE FOR P/N 130G0630
BOLT-UPSET,6X20 21 112G0620 2
BOLT,FLANGED,6X30 21-1 130G0630 2 USE FOR P/N 12049-1003
NUT 6MM 22 311B0600 1
BOLT,TENSIONER ADJUS 23 92003-093 1
SPRING,TENSTIONER 24 92081-107 1
