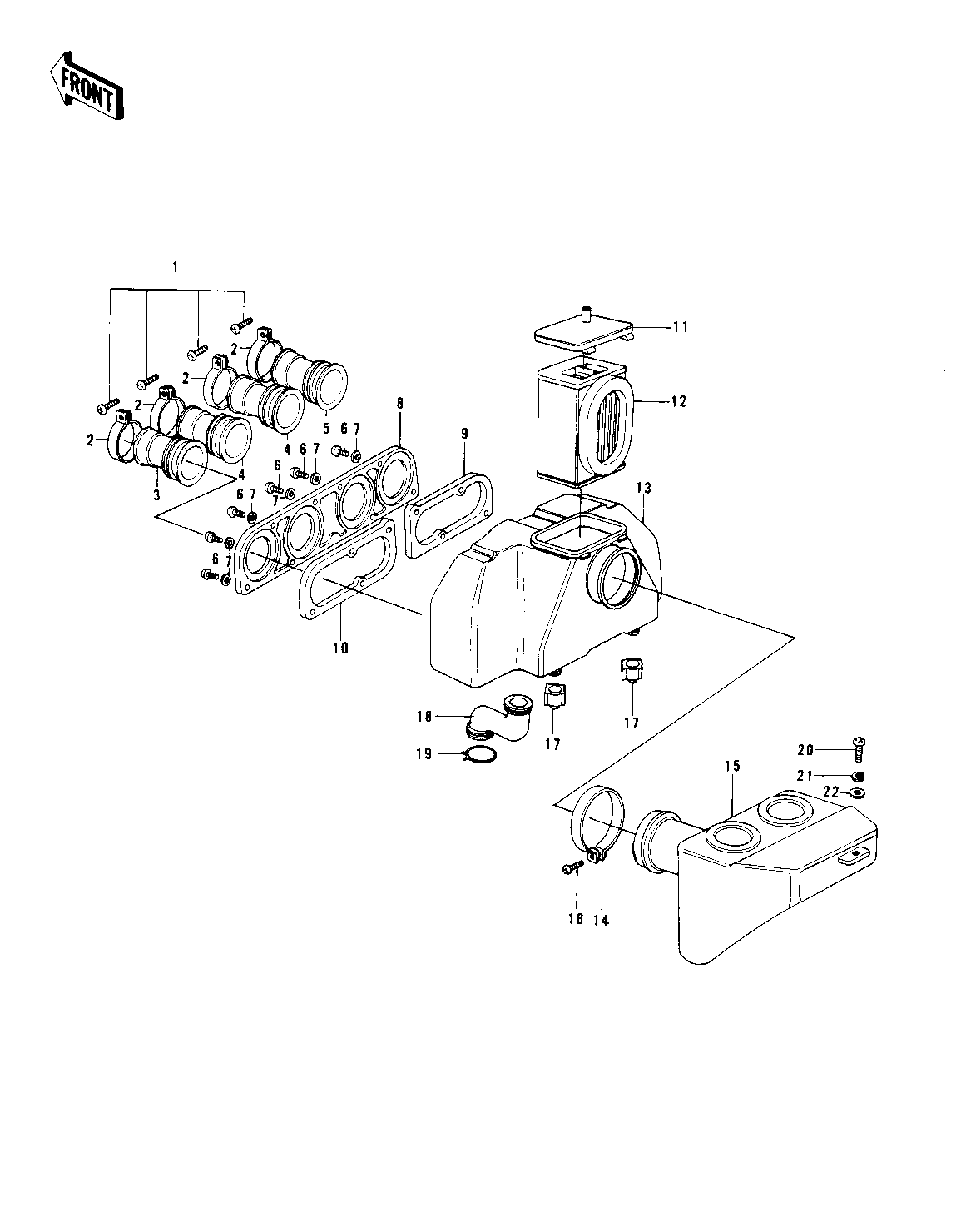

1978 Police 1000 - AIR CLEANER ('78 C1/C1A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS | 1 | 220B0535 | 4 | ||
| CLAMP-INLET PIPE | 2 | 92037-061 | 4 | ||
| DUCT,AIR CLEANER,#1 | 3 | 14073-1022 | 1 | ||
| DUCT,AIR CLEANER,#2, | 4 | 14073-1023 | 2 | ||
| DUCT,AIR CLEANER,#4 | 5 | 14073-1024 | 1 | ||
| SCREW PAN HEAD 4X16 | 6 | 220B0416 | 8 | ||
| WASHER PLAIN 4MM | 7 | 410B0400 | 8 | ||
| PLATE,CARBURETOR HOL | 8 | 11040-001 | 1 | ||
| PLATE,CARBURETOR HOL | 9 | 11040-003 | 1 | ||
| PLATE,CARBURETOR HOL | 10 | 11040-002 | 1 | ||
| CAP,AIR CLEANER | 11 | 11012-075 | 1 | ||
| ELEMENT,AIR CLNR | 12 | 11013-063 | 1 | ||
| BODY,AIR CLEANER | 13 | 11011-1025 | 1 | ||
| CLAMP | 14 | 92037-106 | 1 | ||
| SILENCER | 15 | 11016-009 | 1 | ||
| BOLT,5X50 | 16 | 92011-036 | 1 | ||
| CAP,DRAIN | 17 | 11012-1083 | 2 | ||
| TUBE,DRAIN | 18 | 92059-124 | 1 | ||
| CLAMP BREATHER PIPE | 19 | 92037-028 | 1 | ||
| SCREW PAN HEAD 6X16 | 20 | 220B0616 | 1 | ||
| WASHER SPRING 6MM | 21 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 22 | 410B0600 | 1 |
