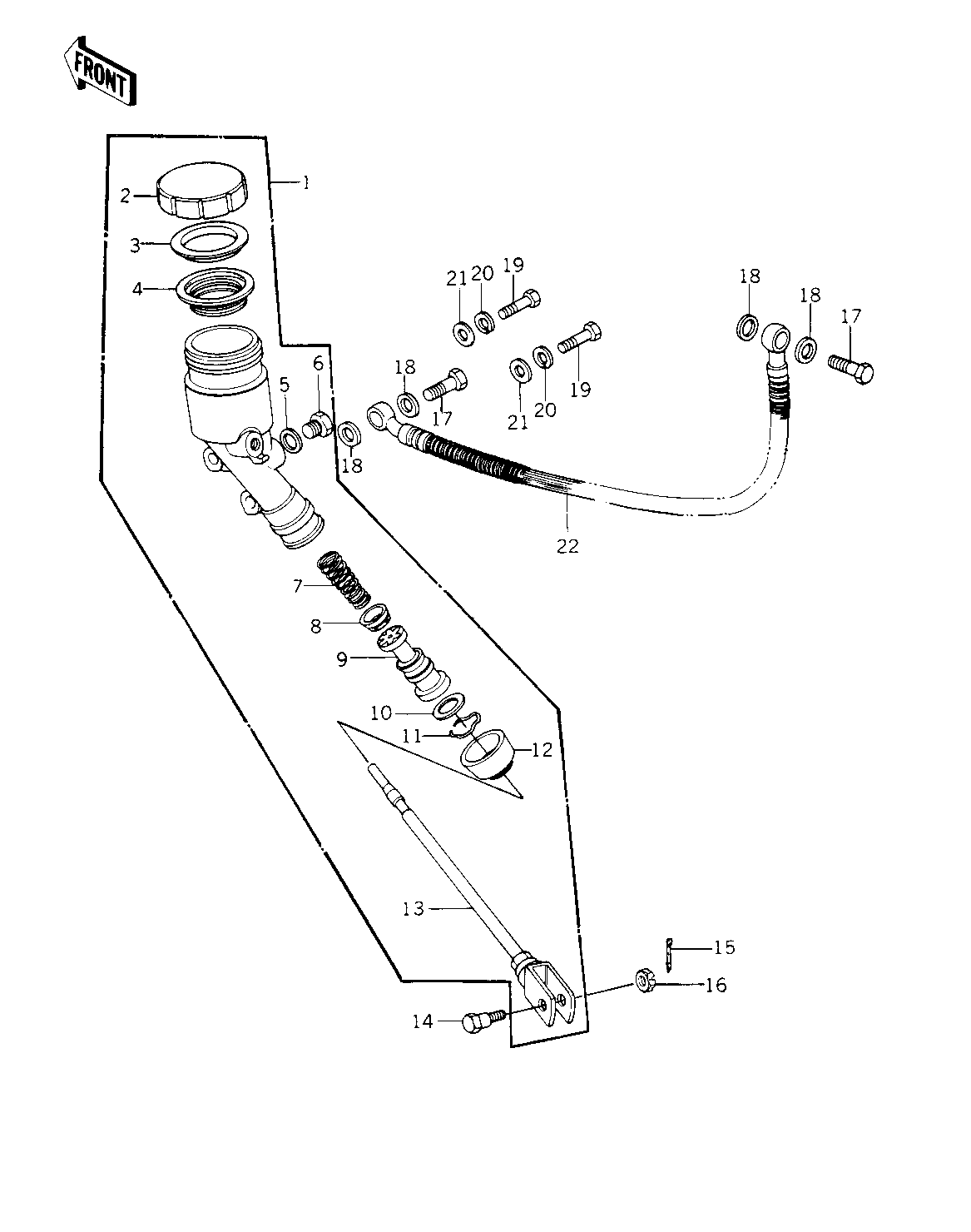

1978 Police 1000 - REAR MASTER CYLINDER ('78 C1/C1A)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER ASSY,REAR | 1 | 43015-033 | 1 | ||
CAP,OIL CUP | 2 | 43026-004 | 1 | ||
PLATE-MASTER CYLINDE | 3 | 43027-001 | 1 | ||
DIAPHRAGM | 4 | 43028-003 | 1 | ||
'O'RING | 5 | 43079-002 | 1 | ||
BOLT | 6 | 43070-003 | 1 | ||
SPRING ASSY, RETURN | 7 | 43018-002 | 1 | ||
CUP, PRIMARY | 8 | 43019-002 | 1 | ||
PISTON ASSY | 9 | 43072-004 | 1 | ||
STOPPER,PISTON | 10 | 43022-002 | 1 | ||
RING,DUST SEAL | 11 | 43058-004 | 1 | ||
DUST COVER | 12 | 43024-003 | 1 | ||
ROD,BRAKE | 13 | 43010-021 | 1 | ||
BOLT | 14 | 92003-198 | 1 | ||
PIN COTTER 2.0X20 | 15 | 550D2020 | 1 | ||
NUT CASTLE | 16 | 321B0800 | 1 | ||
BOLT,OIL,L=23 | 17 | 92002-1888 | 2 | ||
WASHER-OIL BOLT | 18 | 43067-001 | 4 | ||
BOLT,10X45 | 19 | 92001-1182 | 2 | ||
WASHER SPRING 8MM | 20 | 461F0800 | 2 | ||
WASHER PLAIN 8MM | 21 | 410B0800 | 2 | ||
HOSE,REAR MASTER CYL | 22 | 43059-031 | 1 |
CYLINDER ASSY,REAR | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,OIL CUP | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-MASTER CYLINDE | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
'O'RING | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING ASSY, RETURN | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CUP, PRIMARY | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON ASSY | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER,PISTON | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING,DUST SEAL | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUST COVER | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD,BRAKE | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN COTTER 2.0X20 | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT CASTLE | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-OIL BOLT | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,10X45 | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 8MM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 8MM | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOSE,REAR MASTER CYL | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
