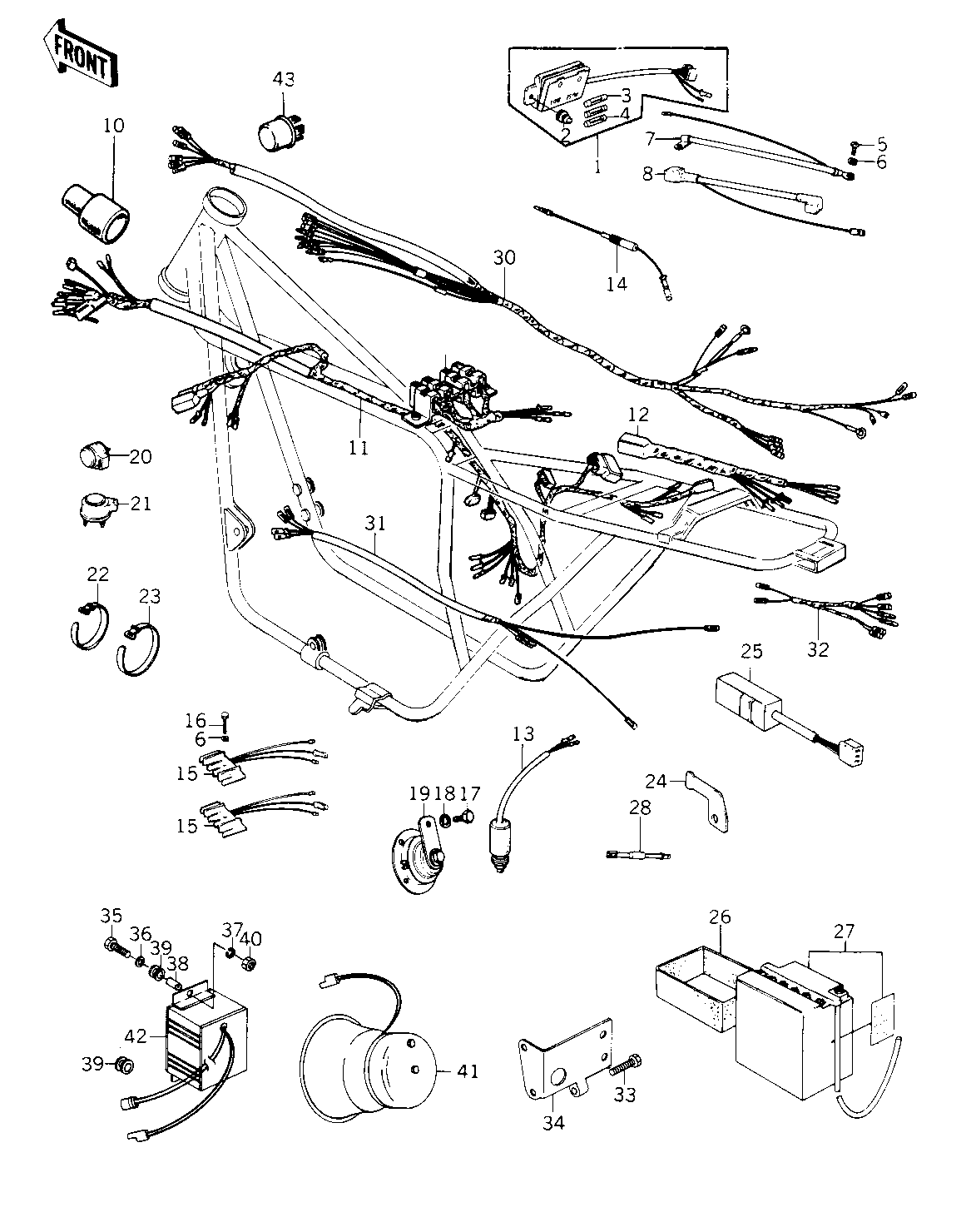

1978 Police 1000 - CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FUSE ASSY | 1 | 26004-035 | 1 | ||
| DAMPER RUBBER,FUSE | 2 | 92075-279 | 1 | ||
| FUSE-20A | 3 | 26006-005 | 2 | ||
| FUSE 10A | 4 | 26006-003 | 3 | ||
| BOLT,HEX HEAD,6MM | 5 | 92001-137 | 1 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 1 | ||
| WIRE,BATTERY GROUND | 7 | 26010-054 | 1 | ||
| WIRE,STARTER LEAD | 8 | 26010-053 | 1 | ||
| WIRING HARNESS,CENTER | 9 | 26002-057 | 1 | ||
| COVER WIRING HARNESS | 10 | 26009-003 | 1 | ||
| WIRING HARNESS,MAIN | 11 | 26001-145 | 1 | KZ1000-C1 | |
| WIRING HARNESS,MAIN | 11 | 26001-1035 | 1 | KZ1000-C1A | |
| WIRING HARNESS,REAR | 12 | 26002-031 | 1 | ||
| SWITCH-BRAKE LAMP | 13 | 27010-017 | 1 | ||
| FUSE ASSY | 14 | 26004-1001 | 1 | ||
| REGULATOR,HAZARD | 15 | 21066-024 | 2 | ||
| BOLT HEX HEAD 6X40 | 16 | 110B0640 | 1 | ||
| BOLT HEX HEAD 8X16 | 17 | 110B0816 | 1 | ||
| WASHER SPRING 8MM | 18 | 461F0800 | 1 | ||
| HORN | 19 | 27003-065 | 1 | KZ1000-C1 | |
| HORN | 19 | 27003-1006 | 1 | KZ1000-C1A | |
| RELAY-TURN SIGNAL | 20 | 27002-011 | 1 | ||
| RELAY,TURN SIGNAL | 21 | 27002-016 | 1 | ||
| BAND,SHORT | 22 | 92072-030 | 2 | KZ1000-C1 | |
| BAND,SHORT | 22 | 92072-030 | 8 | KZ1000-C1A | |
| BAND,WIRING HARNESS | 23 | 92072-056 | 7 | KZ1000-C1 | |
| BAND,WIRING HARNESS | 23 | 92072-056 | 8 | KZ1000-C1A | |
| BRACKET,OUTAGE SWITCH | 24 | 32060-014 | 1 | ||
| SWITCH,OUTAGE,INDICTR | 25 | 28019-001 | 1 | ||
| CASE,BATTERY | 26 | 32099-015 | 1 | ||
| YUA BAT YB14L-A2 | 27 | 26012-1008 | 1 | ||
| REGULATOR | 28 | 21066-026 | 1 | KZ1000-C1 | |
| LABEL-WARNING,BATTERY | 29 | 56022-157 | 1 | ||
| WIRING HARNESS,MAIN | 30 | 26001-1011 | 1 | ||
| WIRING HARNESS,HAZARD | 31 | 26001-1012 | 1 | ||
| WIRING HARNESS,TAIL | 32 | 26001-1013 | 1 | ||
| BOLT,FLANGED,10X70 | 33 | 113B1070 | 1 | OPTIONAL | |
| BRACKET,SIREN (OPT) | 34 | 11034-4001 | 1 | OPTIONAL | |
| BOLT HEX HEAD 6X18 | 35 | 110B0618 | 2 | OPTIONAL | |
| WASHER-PLAIN | 36 | 92022-193 | 2 | OPTIONAL | |
| WASHER SPRING 6MM | 37 | 461F0600 | 2 | OPTIONAL | |
| COLLAR | 38 | 92027-103 | 2 | OPTIONAL | |
| DAMPER RUBBER | 39 | 92075-105 | 3 | OPTIONAL | |
| NUT 6MM | 40 | 310B0600 | 2 | OPTIONAL | |
| 41 | NA | ||||
| 42 | NA | ||||
| RELAY,ALT FLASH (OPT) | 43 | 27034-1001 | 1 |
