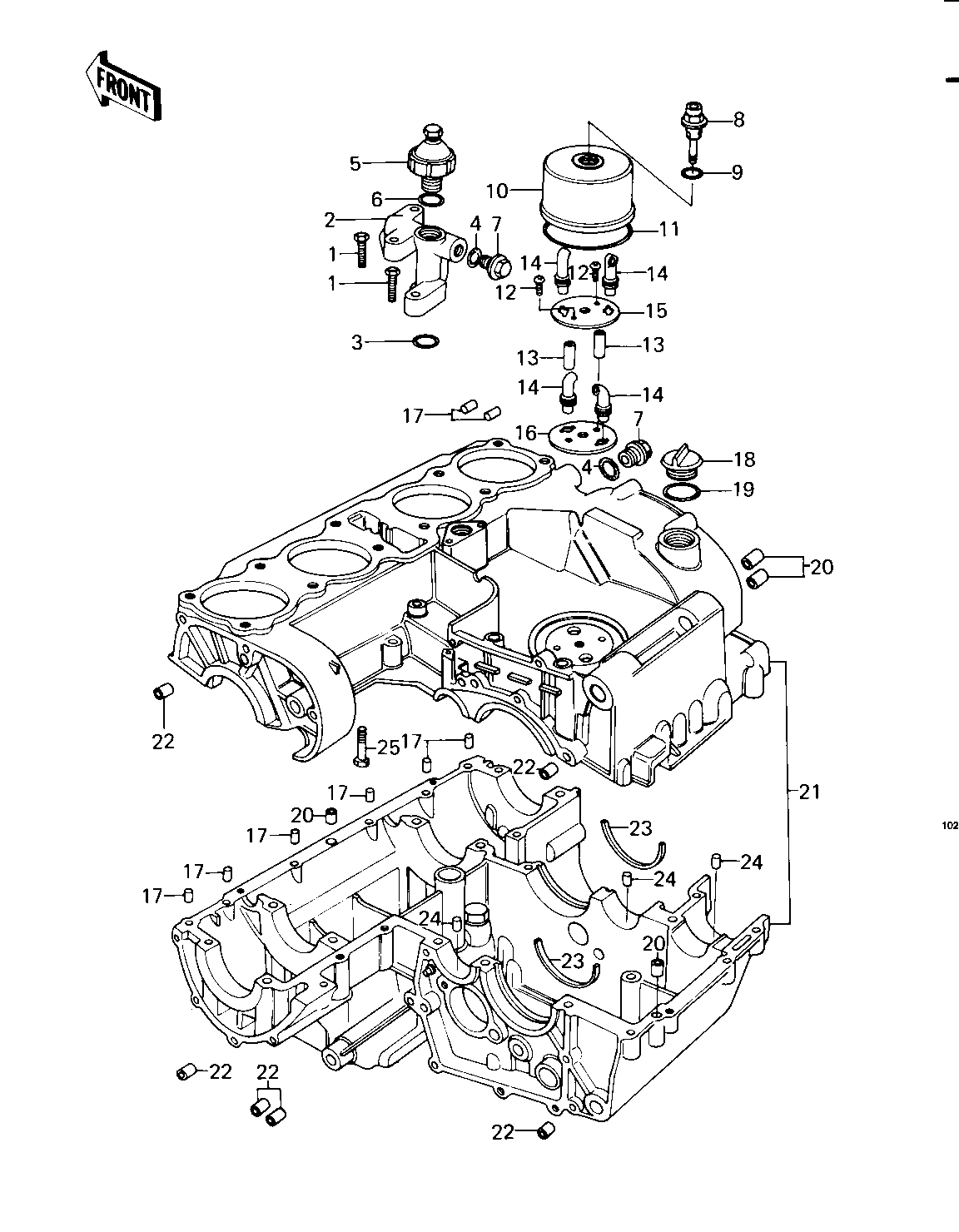

1979 Police 1000 - CRANKCASE/BREATHER COVER ('79-'81 C2/C3/

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,6X35 1 92001-164 4
PIPE 2 16109-003 1
"0" RING,18MM 3 670B2018 2
"O" RING,15MM 4 670B2015 2
SWITCH,OIL PRESSURE 5 27010-1013 1
"O" RING 6 92055-055 1
PLUG 7 92066-021 2
BOLT,BREATHER FITTIN 8 92003-098 1
"0" RING,16MM 9 670B2016 1
BODY,BREATHER 10 14070-007 1
"O" RING,91MM 11 92055-052 1
SCREW PAN HEAD 6X40 12 220B0640 2
COLLAR,IGNITION COIL 13 92027-276 2
TUBE,BREATHER 14 92059-140 4
PLATE,BREATHER 15 14068-009 1
PLATE,BREATHER 16 14068-007 1
PIN,DOWEL,6X14 17 610A0614 8
PLUG,OIL FILLER 18 16115-013 1
"0" RING,31MM 19 92055-049 1
PIN,DOWEL,10X8.2X14 20 92043-1037 4
CRANKCASE SET 21 14001-5025 1
PIN-DOWEL 22 92042-007 8
RING,POSITION 23 14013-1004 2
RING-BEARING SET 23 14013-013 AR
PIN DOWEL 6MM 24 92042-016 3
BOLT,HEX HEAD,8X72 25 92003-107 4
