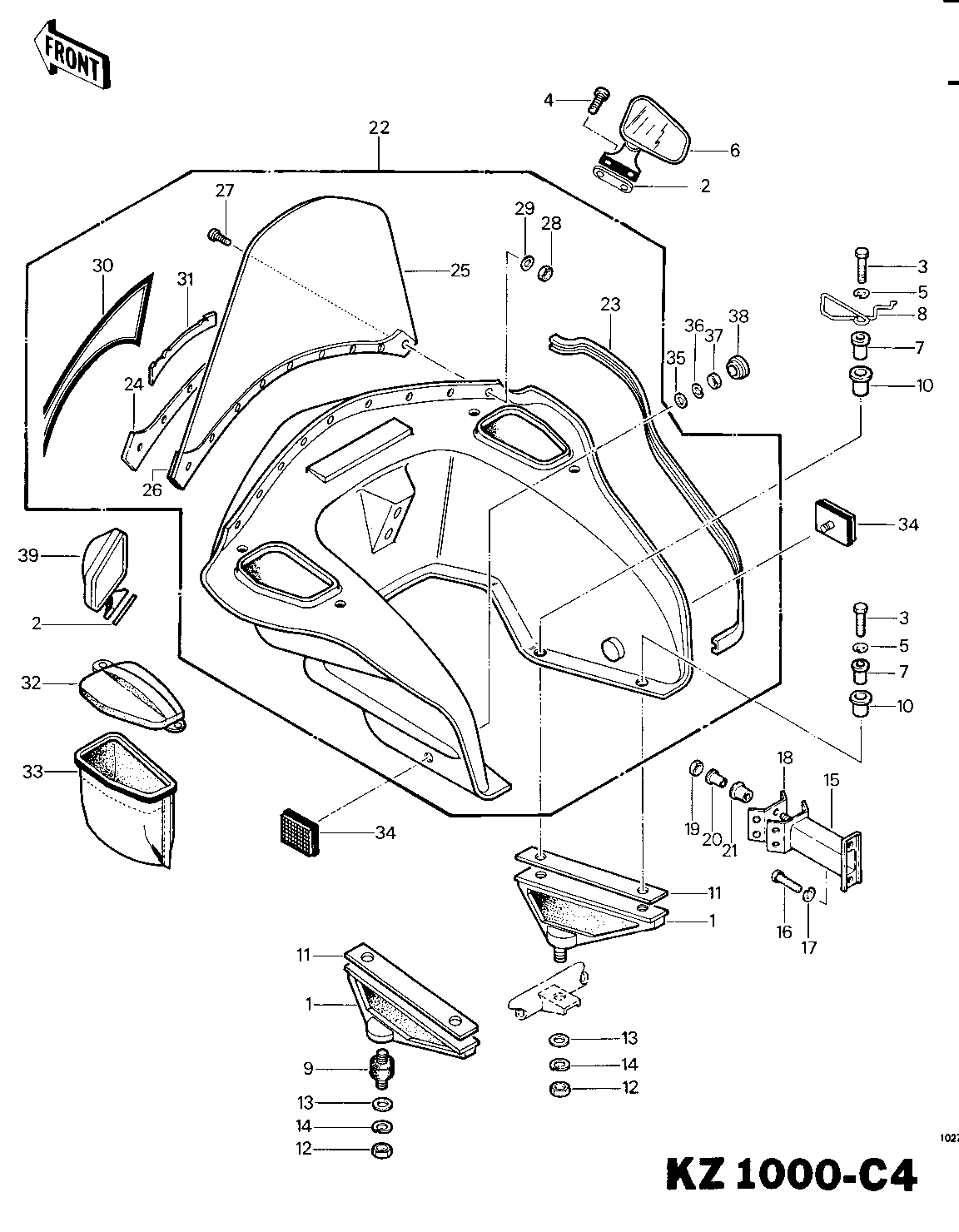

1981 Police 1000 - FAIRING (KZ1000-C4)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 1 11034-4084 2
DAMPER,REAR VIEW MIR 2 92075-1230 2
BOLT HEX HEAD 8X28 3 114G0828 4
SCREW 4 92009-4006 4
WASHER SPRING 8MM 5 461F0800 4
MIRROR-ASSY 6 56001-4003 1
COLLAR,FR COWLING 7 92027-4015 4
CLAMP 8 92037-4005 1
DAMPER,RUBBER 9 92075-4013 2
DAMPER 10 92075-4020 4
DAMPER 11 92075-4018 2
NUT 12 350BA1000 2
WASHER PLAIN 8MM 13 411B0800 2
WASHER SPRING 8MM 14 461F0800 2
BRACKET,COWLING,FR 15 11034-4089 1
BOLT-SMALL-UPSET,8X1 16 115G0816 2
WASHER SPRING 8MM 17 461F0800 2
DAMPER,COWLING FITT 18 92075-1179 1
NUT,LOCK,8MM 19 92015-1124 2
COLLAR,FR COWLING 20 92027-4015 2
DAMPER 21 92075-4020 2
COWLING ASSY 22 55027-4001-8C 1
TRIM 23 53044-4001 2
PLATE,WINDSHIELD 24 13169-4014 1
WINDSHIELD 25 39154-4003 1
ADHESIVE,WINDSHIELD 26 56042-4003 1
SCREW,PLASTIC 5X28 27 92009-4005 9
NUT,HEX PLASTIC 5MM 28 92015-4014 9
WASHER PL PLASTIC 5M 29 92022-4015 9
PATTERN, FAIRING 30 56027-4056 1
PATTERN,FAIRING 30 56027-4055 1
EMBLEM 31 56014-4011 1
COVER 32 14025-4013 2
BAG 33 56008-4003 2
REFLECTOR,REFLEX(FRO 34 28012-1003 2
WASHER PLAIN 5MM 35 411B0500 2
WASHER SPRING 5MM 36 461F0500 2
NUT,5MM 37 311B0500 2
PLUG 38 92074-027 2
MIRROR-ASSY 39 56001-4002 1
