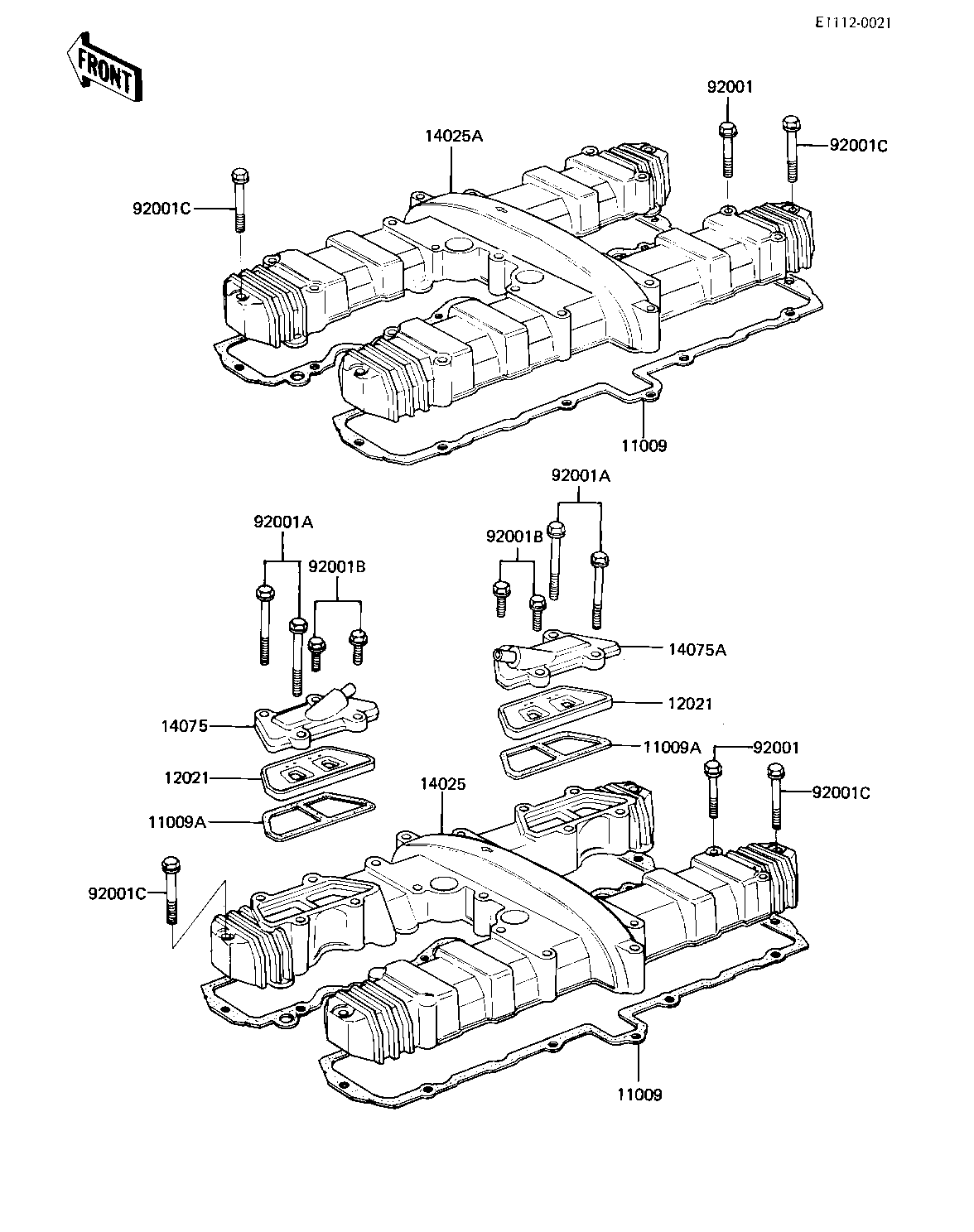

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11060-1261 1
GASKET,REED VALVE 11009A 11060-1066 2 US
VALVE-ASSY-REED 12021 12021-1008 2 US
COVER,CYLINDER HEAD, 14025 14025-1465 1 US
14025-1466 (Canada) 14025A 14025-1255 1 CN
CAP-ASSY,REED VALVE, 14075 14075-5018 1 US
CAP-ASSY,REED VALVE, 14075A 14075-5019 1 US
BOLT,FLANGED,6X45 92001 92001-1350 16 US
BOLT,FLANGED,6X45 92001 92001-1350 20 CN
BOLT,FLANGED,6X70 92001A 92001-1351 4 US
BOLT,FLANGED,6X22 92001B 92001-1352 4 US
BOLT,FLANGED,6X52 92001C 92001-1353 4
