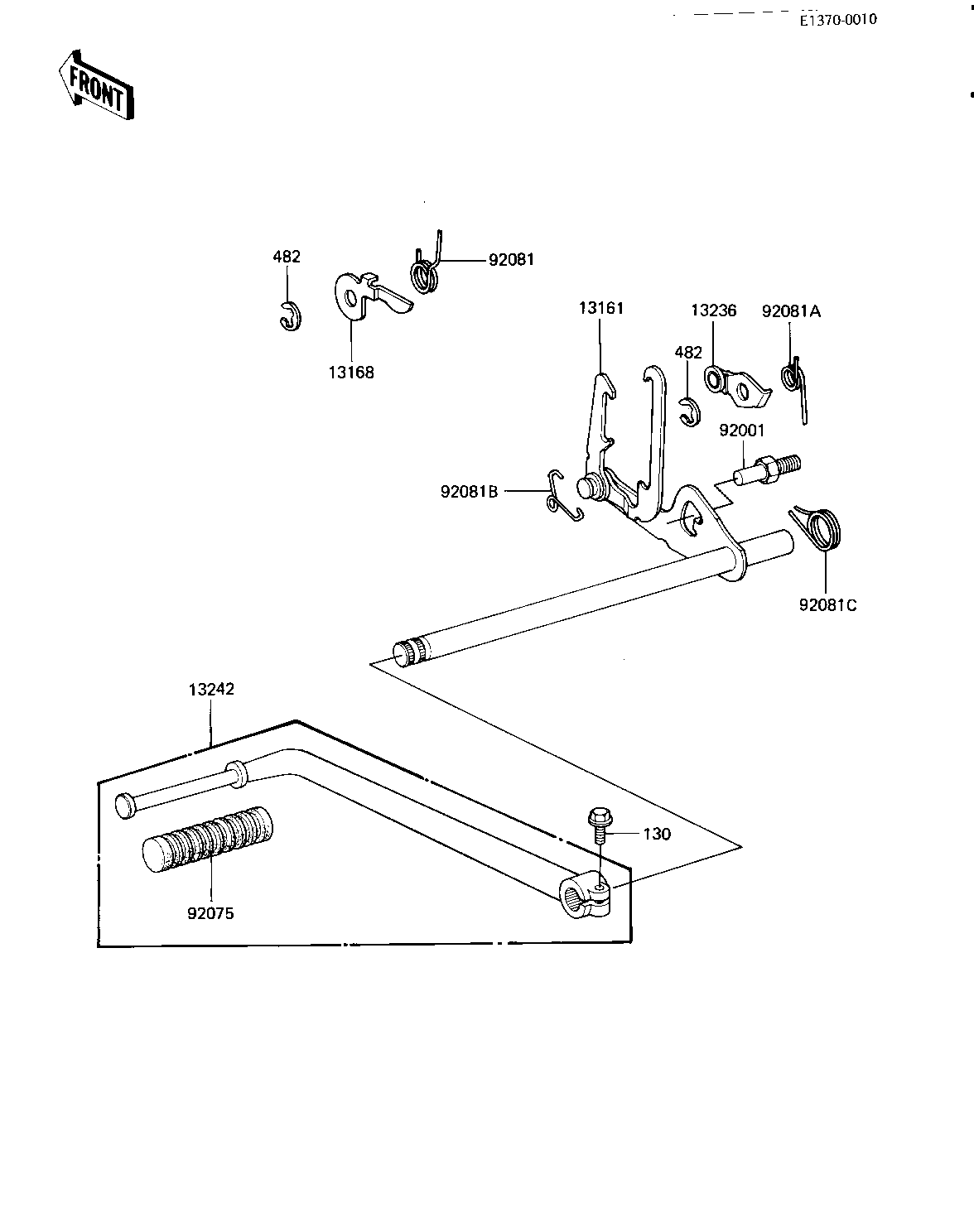

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SH 13161 13161-1023 1
LEVER,GEAR POSITIONI 13168 13168-1074 1
LEVER-COMP,NEUTRAL P 13236 13236-1029 1
PEDAL ASSY,GEAR CHAN 13242 13242-006 1
BOLT,RETURN SPRING 92001 92001-1401 1
RUBBER CHANGE PEDAL 92075 13157-004 1
SPRING,POSITIONING L 92081 92081-1284 1
SPRING 92081A 92081-1285 1
SPRING,KICK PAWL 92081B 92083-018 1
SPRING,CHG PEDL RTRN 92081C 92083-028 1
BOLT-FLANGED,6X20 130 130P0620 1
CIRCLIP 6MM 482 482J6000 2
