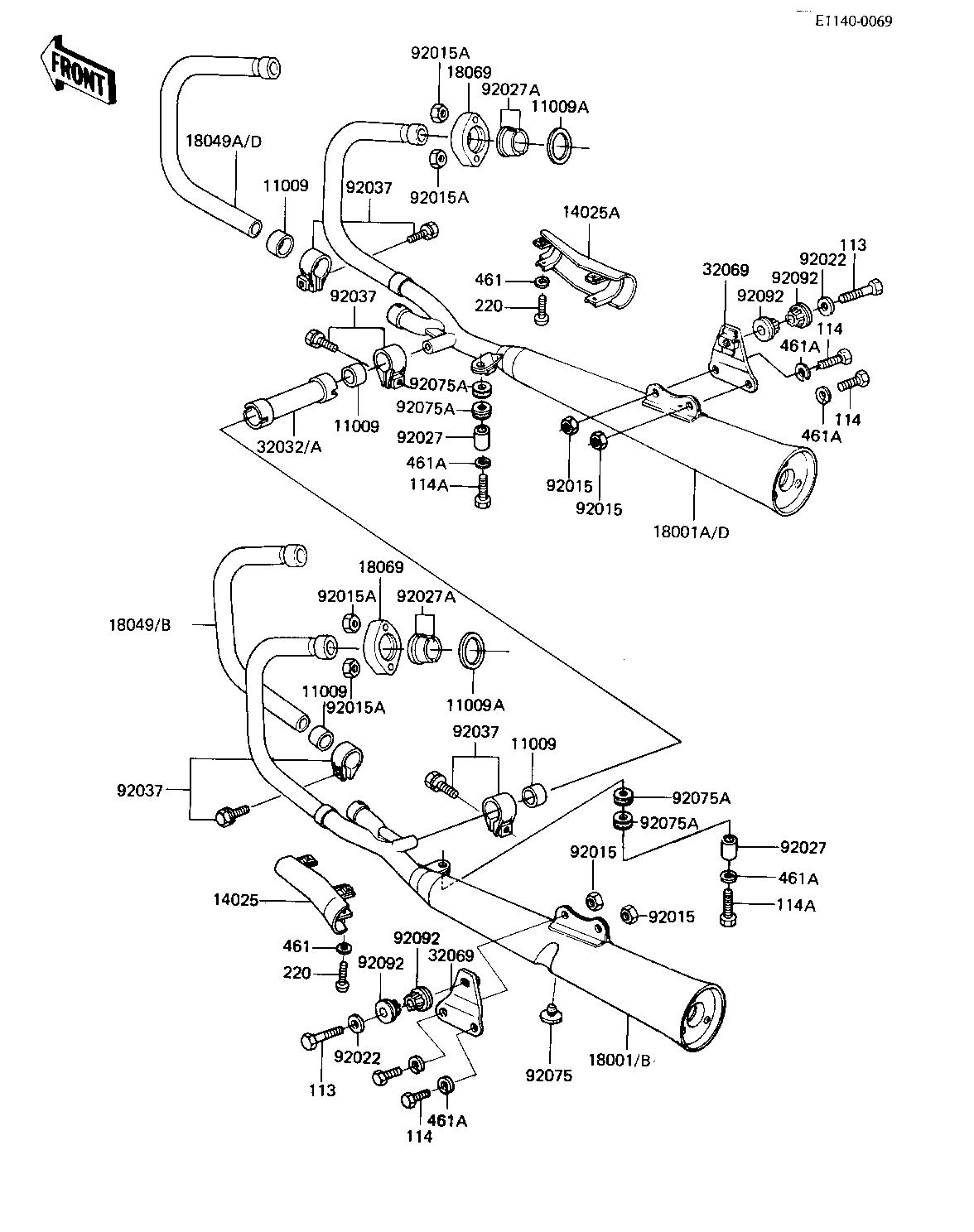

1982 LTD - MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MANIFOLD EXHA 11009 11060-1068 4
GASKET,EXHAUST PIPE 11009A 11009-1906 4
COVER,MUFFLER,LH 14025 14025-1355 1
COVER,MUFFLER,RH 14025A 14025-1356 1
MUFFLER,RH 18001A 18001-1317 ) (SUBSTITUTES
MUFFLER,RH 18001A 18001-1317 1 (SUBSTITUTES
MUFFLER,LH 18001B 18001-1316 1
MUFFLER,RH 18001D 18001-1317 1
PIPE-EXHAUST,#3 18049A 18049-1135 ) (SUBSTITUTES
PIPE-EXHAUST,#3 18049A 18049-1135 1 (SUBSTITUTES
PIPE-EXHAUST,#2 18049B 18049-1188 1
PIPE-EXHAUST,#3 18049D 18049-1189 1
HOLDER-EXHAUST PIPE 18069 18069-1015 4
PIPE,MUFFLER CONNECT 32032 32032-1676 1 (SUBSTITUTES
PIPE,MUFFLER CONNECT 32032A 32032-1676 1
BRACKET-MUFFLER,LH 32069 32069-1074 2
NUT,LOCK,8MM 92015 92015-1124 4
NUT-8MM 92015A 92015-1143 8
WASHER,PLAIN 92022 92022-289 2
COLLAR 92027 92027-1064 2
COLLAR,EXHAUST PIPE 92027A 92027-1300 8
CLAMP,MUFFLER 92037 92037-1258 4
DAMPER RUBB MAIN STA 92075 92075-015 1
DAMPER RUBBER 92075A 92075-1042 4
BUSHING-RUBBER 92092 92092-1013 4
BOLT-HEX HEAD,10X55 113 113N1055 2
UNAVAILABLE IN PRICE BOOK 114 114N0816 4
BOLT HEX HEAD 114A 114N0835 2
UNAVAILABLE IN PRICE BOOK 220 220N0645 4
WASHER SPRING 6MM 461 461F0600 4
WASHER SPRING 8MM 461A 461F0800 6
