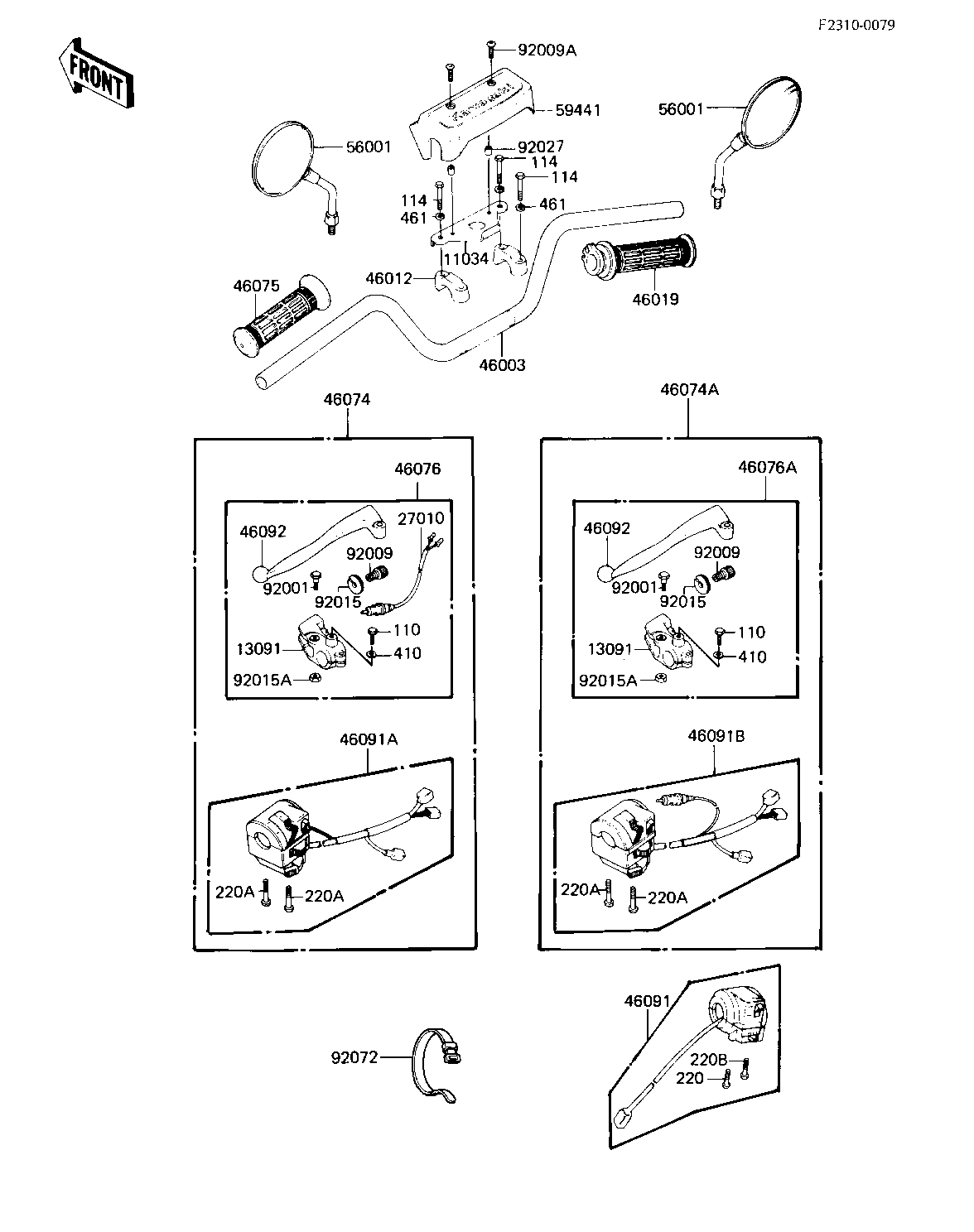

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,HANDLE COVER 11034 11034-1899 1
HOLDER,CLUTCH LEVER 13091 13091-1046 1
HANDLEBAR 46003 46003-1070 1
HOLDER-HANDLE 46012 46012-1011 2
GRIP-ASSY,THROTTLE 46019 46019-1015 1
GRIP,LH 46075 46075-1022 1
LEVER-ASSY-GRIP,CLTC 46076A 46076-1019 1
HOUSING-ASSY-CNTRL,R 46091 46091-1155 1
HOUSING-ASSY-CNTRL,L 46091B 46091-1183 1
LEVER,CLUTCH 46092 46092-1005 1
MIRROR-ASSY 56001 56001-1340 2
COVER-HANDLE 59441 59441-1001 1
BOLT,CLUTCH LEVER FI 92001 92001-1075 1
SCREW CABLE ADJUST 92009 46055-003 1
SCREW,4X16 92009A 92009-1108 2
NUT-LOCK 92015 46056-005 1
NUT 92015A 92019-008 1
COLLAR,4.5X6.5X9.3 92027 92027-1313 2
BAND,MIDDLE 92072 92072-031 4
BOLT, HEX HEAD 6X22 110 110N0622 1
BOLT,SMALL UPSET 114 115G0835 4
SCREW PAN HEAD 5X30 220 220B0530 1
SCREW-PAN-CROS 220A 220B0535 2
SCREW-PAN-CROS 220B 220B0540 1
WASHER PLAIN 6MM 410 410B0600 1
WASHER SPRING 6MM 461 461F0600 4
