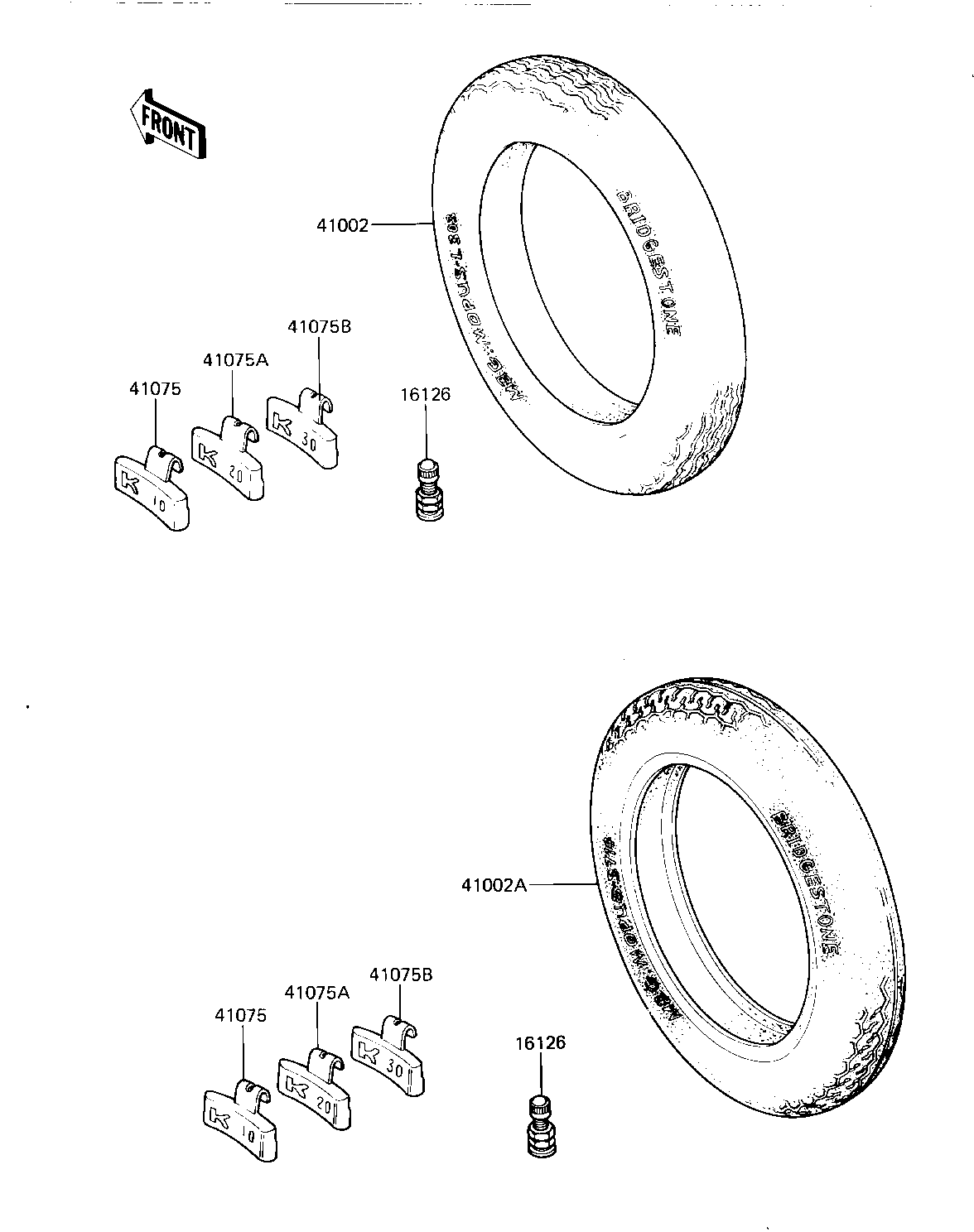

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-1136 2
TIRE 325H-19 L303 41002 41002-1236 1
TIRE 130/90-16 G504 41002A 41002-1187 1
BALANCER-WHEEL,10G 41075 41075-1011 AR
BALANCER-WHEEL,20G 41075A 41075-1012 AR
BALANCER-WHEEL,30G 41075B 41075-1013 AR
