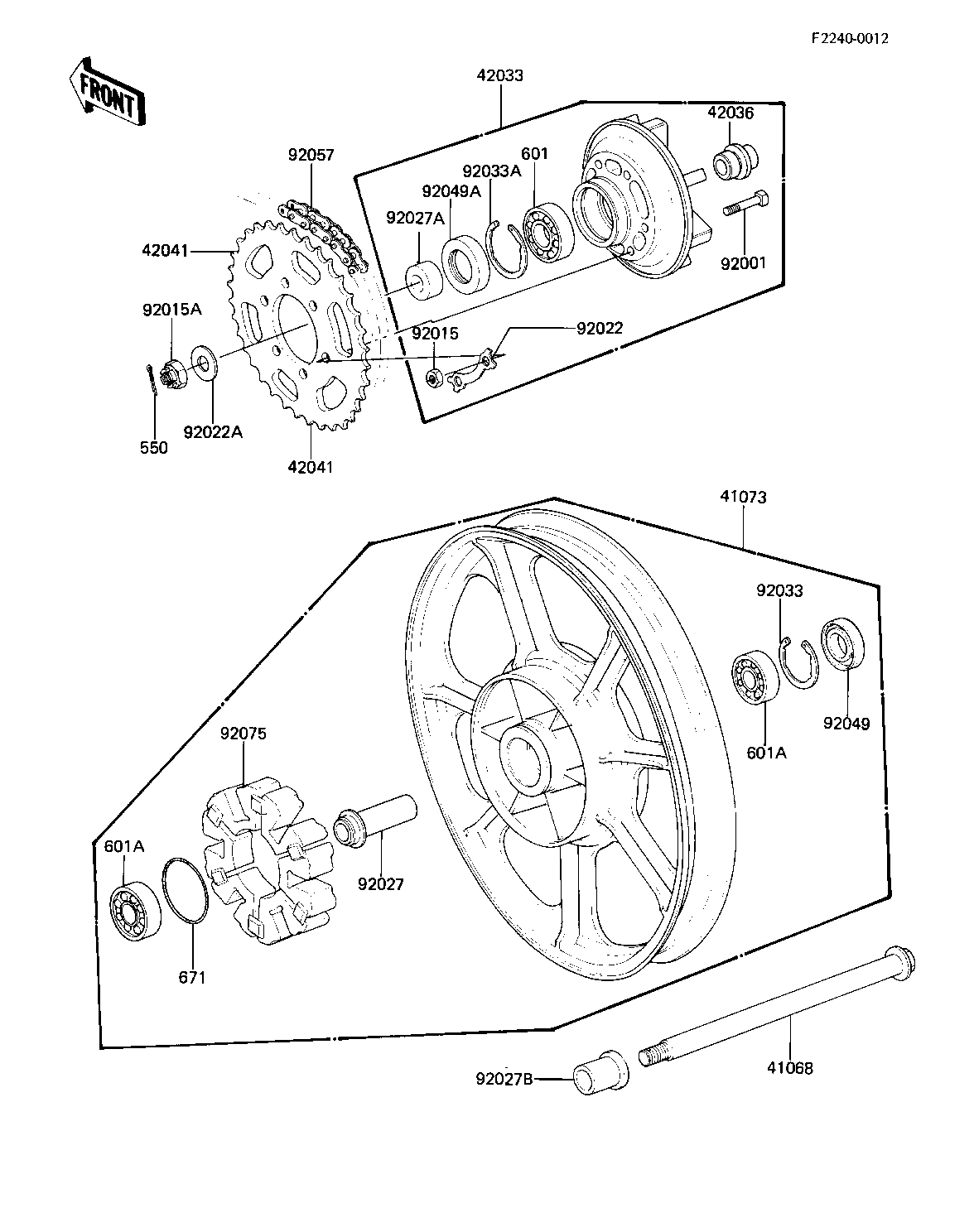

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
AXLE,RR,L=300 | 41068 | 41068-1087 | 1 | ||
WHEEL-ASSY | 41073 | 41073-1090 | 1 | ||
COUPLING-ASSY | 42033 | 42033-1024 | 1 | ||
SPROCKET-HUB,39T | 42036 | 42041-1059 | 1 | ||
SPROCKET-HUB,39T | 42041 | 42041-1059 | 1 | ||
BOLT | 92001 | 92001-161 | 6 | ||
NUT 10MM | 92015 | 42045-005 | 6 | ||
NUT CASTLE,18MM | 92015A | 42045-018 | 1 | ||
WASHER,LOCK | 92022 | 92022-1212 | 3 | ||
WASHER,PLAIN,20MM | 92022A | 92022-248 | 1 | ||
COLLAR,L=89.5 | 92027 | 92027-1286 | 1 | ||
COLLAR,20X40X18 | 92027A | 92027-1287 | 1 | ||
COLLAR,L=31 | 92027B | 92027-1288 | 1 | ||
RING,SNAP,56.2M/M | 92033 | 92033-1043 | 1 | ||
CIRCLIP,62M/M | 92033A | 92033-1044 | 1 | ||
SEAL-OIL | 92049 | 92049-1061 | 1 | ||
OIL SEAL | 92049A | 92050-027 | 1 | ||
DR CHAIN 630X96 | 92057 | 92057-1053 | 1 | ||
SHOCK DAMPER,REAR HU | 92075 | 42014-033 | 1 | ||
PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
BALL BEARING,#6206 | 601 | 601B6206 | 1 | ||
BEARING,BALL,#6304ZZ | 601A | 601B6304ZZ | 2 | ||
"0" RING,65MM | 671 | 671B2565 | 1 |
