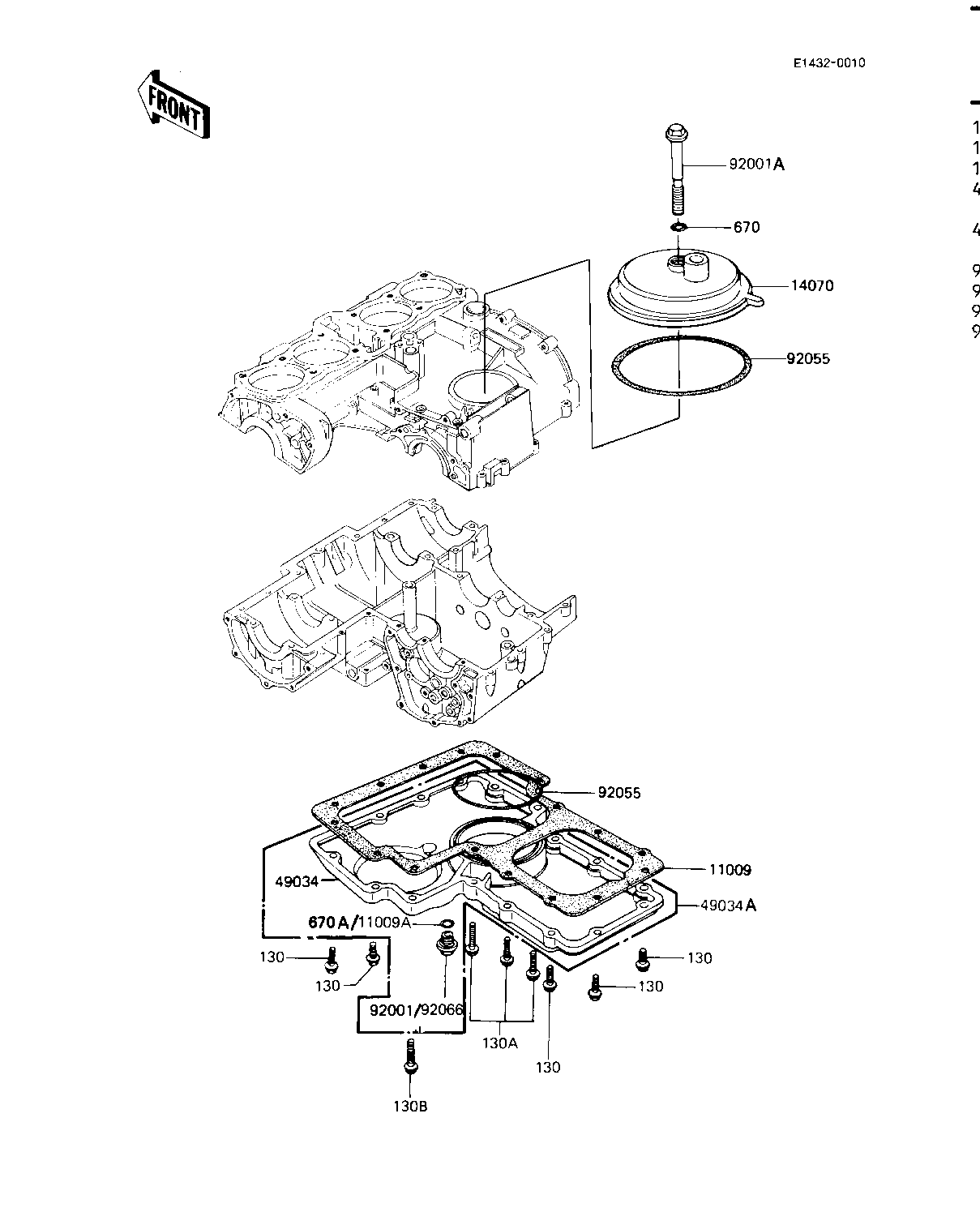

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11009 11060-1074 1
GASKET,DRIN PLUG 11009A 92065-097 1
BODY-BREATHER 14070 14070-1008 1
PAN-OIL 49034 49034-5020 1
PAN-OIL 49034A 49034-5014 1
PLUG,OIL DRAIN 92001 92001-1183 1
BOLT,HEX HEAD,8X72 92001A 92003-107 1
"O" RING,91MM 92055 92055-052 2
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
BOLT,FLANGED,6X25 130 130G0625 13
BOLT,FLANGED,6X35 130A 130H0635 3
BOLT,FLANGED,6X45 130B 130G0645 1
"O" RING,8MM 670 670B1508 1
"O" RING,22MM 670A 670B2022 1
