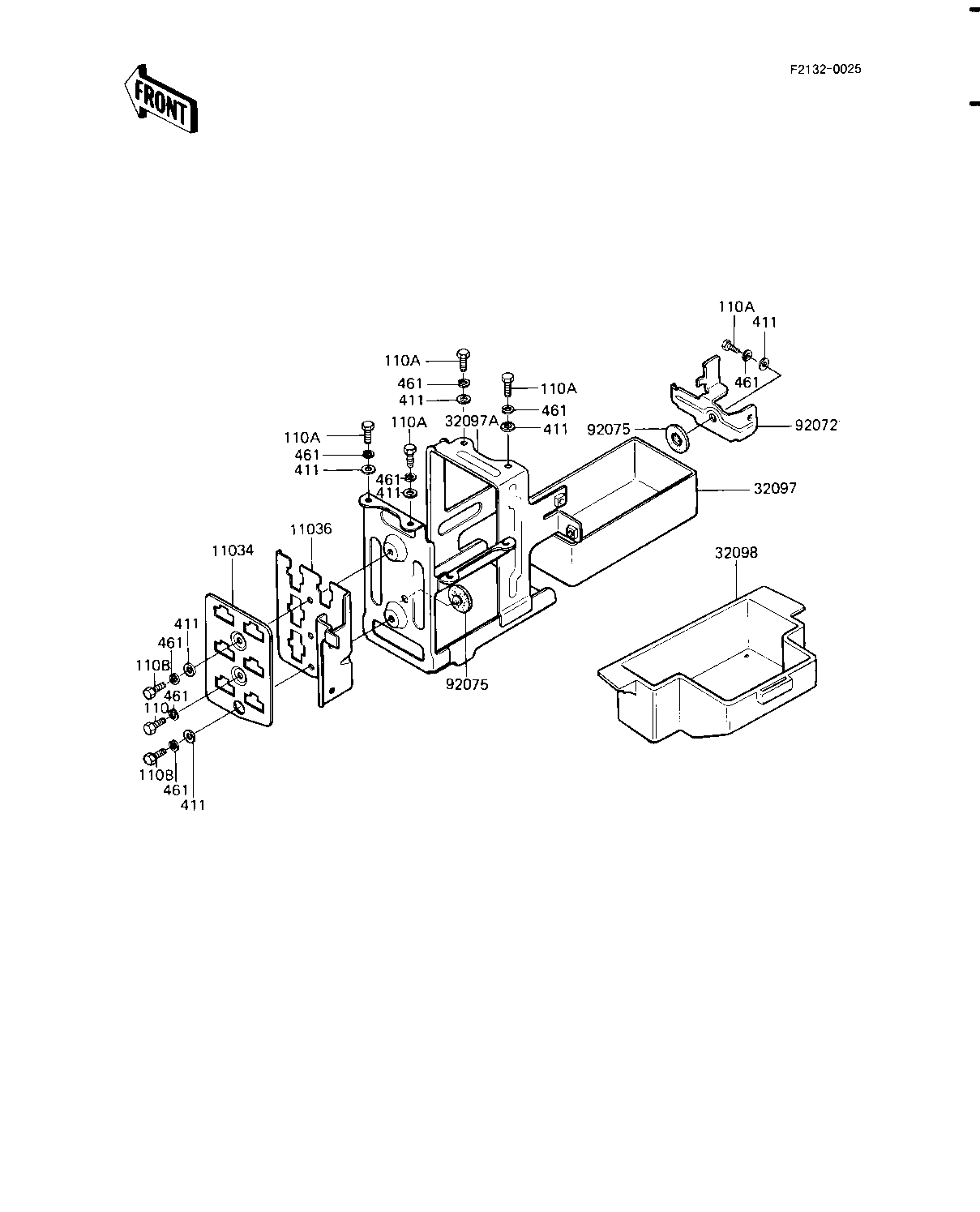

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11034 11034-1918 1
BRACKET-A,COUPLER 11036 11036-1783 1
CASE-BATTERY 32097 32097-1034 1
CASE-BATTERY 32097A 32097-1045 1
CASE-TOOL 32098 32098-1015 1
BAND,BATTERY CASE 92072 92072-1213 1
DAMPER RUBBER 92075 92075-078 2
BOLT,6X10 110 112G0610 1
BOLT-UPSET 6X14 110A 112B0614 5
BOLT 6X22 110B 112B0622 2
WASHER PLAIN 6MM 411 411B0600 7
WASHER SPRING 6MM 461 461F0600 8
