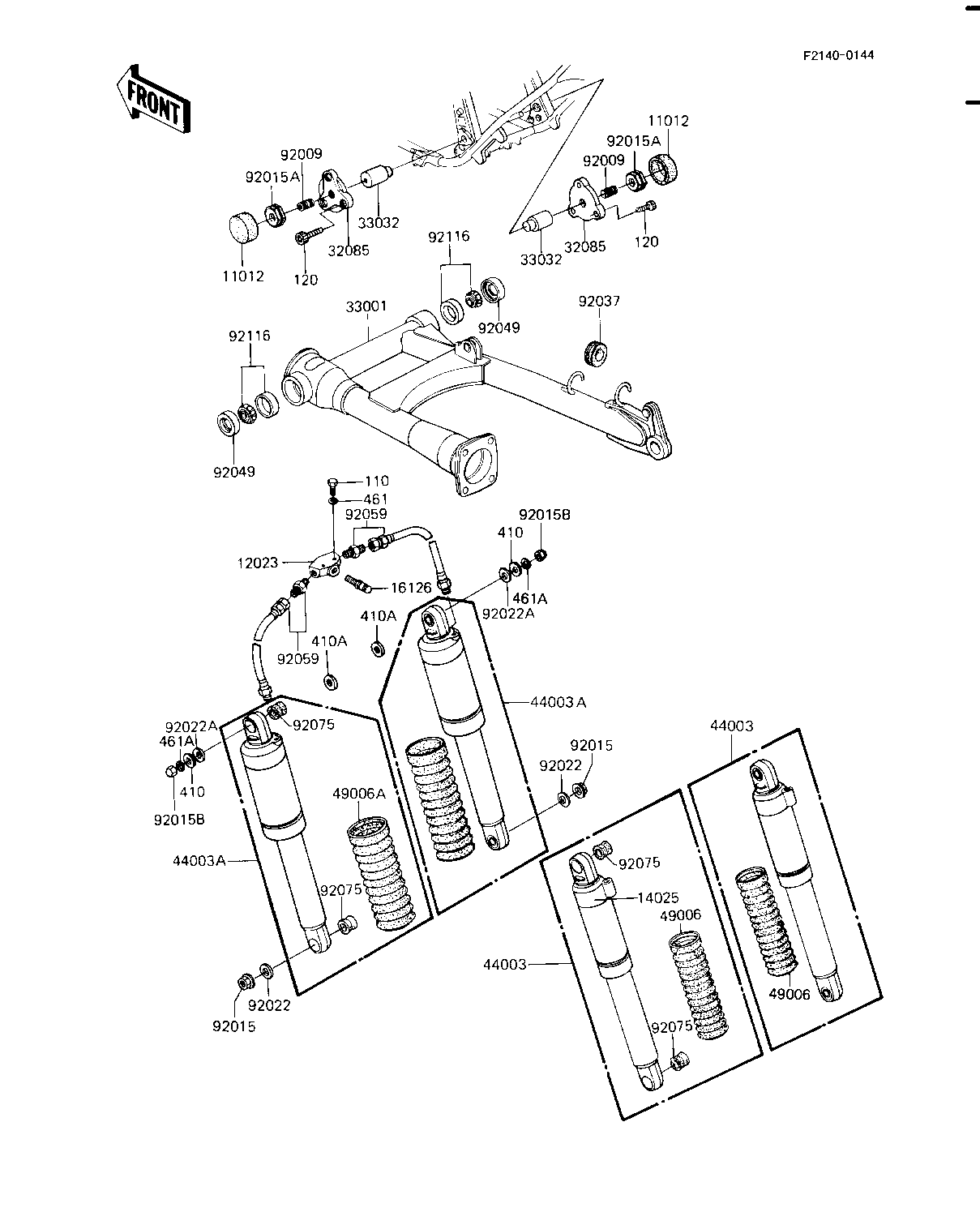

1982 Shaft - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 11012-1069 2
HOLDER-VALVE,AIR 12023 12023-1012 1
COVER,DAMPER,RR 14025 14025-1298 2
VALVE AIR 16126 16126-1052 1
STOPPER,SWING ARM 32085 32085-1071 2
ARM-COMP-SWING 33001 33001-1102 1
SHAFT-SWING ARM 33032 33032-1021 2
SHOCKABSORBER,RR 44003 44003-1132 2
BOOT,DAMPER 49006 49006-1155 2
SCREW,14X22 92009 92009-1087 2
NUT,10MM 92015 92015-1415 2
NUT,14MM 92015A 92015-1135 2
NUT 12MM 92015B 92020-014 2
WASHER,10.5X30X2.3 92022 92022-1193 2
WASHER,12.4X28X2.3 92022A 92022-1239 2
DAMPER RUBBER 92037 43064-007 2
OIL SEAL,26406 92049 92049-1030 2
TUBE,SHOCKABSORBER,RR 92059 92059-1194 2
BUSHING,SHOCK ABSORBE 92075 92075-1141 4
BRG,ROLLER,4T30203E1 92116 92116-1001 2
BOLT-UPSET 6X14 110 112B0614 2
BOLT-SOCKET,8X20 120 120S0820 6
WASHER PLAIN 12MM 410 410B1200 2
WASHER PLAIN 14MM 410A 410B1400 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 12MM 461A 461F1200 2
