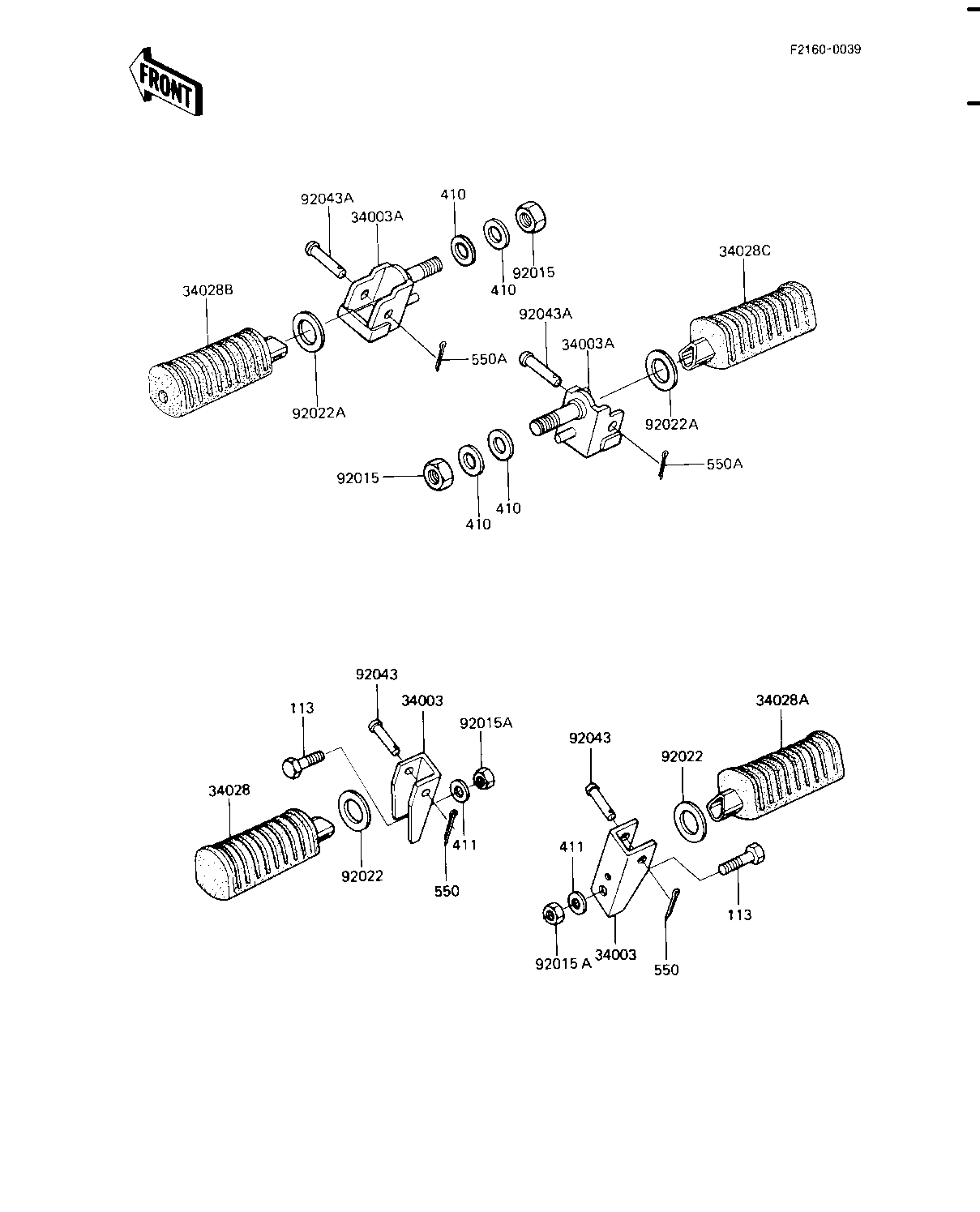

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,REAR FOOTREST 34003 34003-1025 2
HOLDER-STEP 34003A 34003-1091 2
STEP,RR FOOTREST,L.H 34028 34028-1024 1
STEP,RR FOOTREST,R.H 34028A 34028-1025 1
STEP-ASSY,FR,LH 34028B 34027-1106 1
STEP-ASSY,FR,RH 34028C 34027-1107 1
NUT-LOCK,12MM 92015 92019-009 2
NUT,LOCK,10MM 92015A 92019-021 2
WASHER-PLAIN 92022 92022-181 2
WASHER,PLAIN 92022A 92022-250 2
PIN 92043 92043-1464 2
PIN,FOOTREST BAR FIT 92043A 92043-115 2
BOLT,HEX HEAD 10X40 113 92001-1253 2
WASHER PLAIN 12MM 410 410B1200 4
WASHER PLAIN 10MM 411 411B1000 2
PIN,COTTER,2.0X12 550 550D2012 2
PIN,COTTER,2.5X15 550A 550D2515 2
