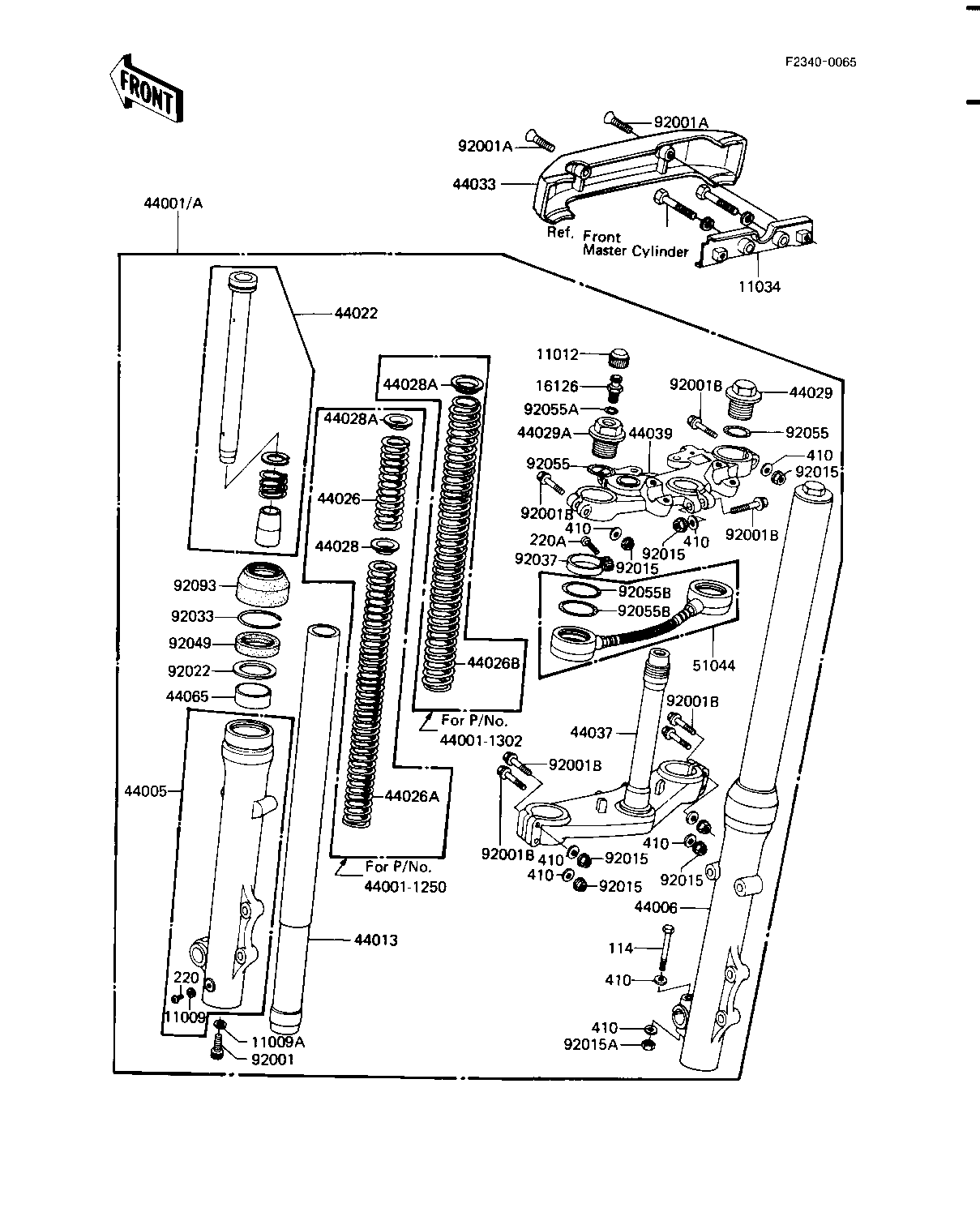

1981 Shaft - FRONT FORK (KZ1100-A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET FORK DRAIN PLG 11009 44045-002 2
GASKET,FORK CYLINDER 11009A 44045-057 2
CAP,AIR VALVE 11012 11012-1241 1
BRACKET,FORK COVER 11034 11034-1842 1
VALVE AIR 16126 16126-1052 1
FORK-FRONT 44001 44001-1302 1 SUBSTITUTES 44001-1302
FORK-FRONT 44001A 44001-1302 1 (JKAKZBA1 BA003574-)
TUBE,LH,FORK OUTER 44005 44005-1067 1
TUBE,RH,FORK OUTER 44006 44006-1067 1
PIPE-FORK INNER 44013 44013-1064 2
CYLINDER-FORK 44022 44022-1045 2
SPRING-FR FORK,UPP 44026 44026-1082 2
SPRING-FRONT FORK 44026A 44026-1113 2
SPRING-FRONT FORK 44026B 44026-1114 2
GUIDE-FORK SPRING 44028 44028-029 2
GUIDE,FORK SPRING 44028A 44028-1004 2
CAP,FORK TOP 44029 44029-1015 1
SEAT-FORK SPRING 44029A 44029-1026 1
COVER,FORK 44033 44033-1054 1
HOLDER-FORK UNDER 44037 44037-1074 1
HOLDER-FORK UPPER 44039 44039-1046 1
BUSHING-FRONT FORK,OU 44065 44065-1091 2
TUBE ASSY,AIR FORK 51044 51044-1008 1
BOLT-FORK CYLINDER 92001 44041-040 2
SCREW-CSK-RD-CROS 92001A 222C0518 2
BOLT,FLANGED,8X57 92001B 92001-1358 7
NUT-8MM 92015 92015-1022 7
NUT,LOCK,8MM 92015A 92015-1124 1
WASHER,FORK OUT PIPE 92022 92022-1262 2
SNAP RING,FORK OUTER 92033 92033-1047 2
CLAMP,FRONT FORK 92037 92037-1277 2
SEAL-OIL,FORK OUTER T 92049 92049-1295 2
"0" RING,FORK TOP 92055 92055-1051 2
"0" RING,AIR VALVE 92055A 92055-1094 1
RING-O,ROD 92055B 92055-1369 4
SEAL 92093 92093-1051 2
BOLT,HEX HEAD,8X55 114 114G0855 1
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW-PAN-CROS 220A 220B0414 2
WASHER PLAIN 8MM 410 410B0800 9
