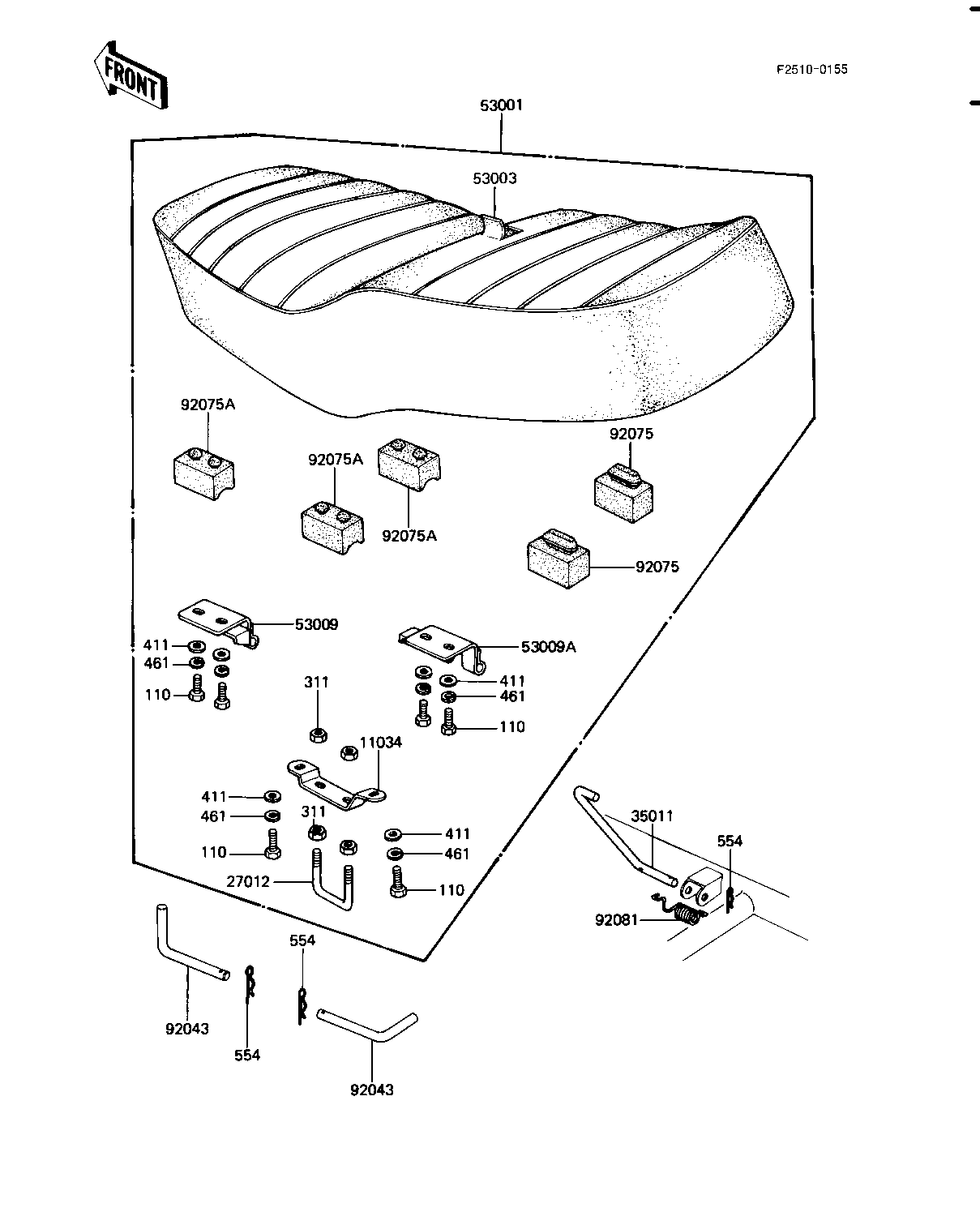

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT CATCH 11034 11034-1329 1
CATCH, SEAT 27012 53056-002 1
STAY,SEAT STAND 35011 35011-1034 1
SEAT-ASSY 53001 53001-1104 1
LEATHER 53003 53003-1025 1
HINGE,SEAT,FRONT 53009 53009-1010 1
HING,RR 53009A 53009-1021 1
PIN,SEAT PIVOT 92043 92043-1021 2
DAMPER RUBBER 92075 92075-099 2
DAMPER RUBBER,SEAT 92075A 92075-139 3
SPRING,SEAT HOOK 92081 92081-1053 1
BOLT-UPSET,6X16 110 112G0616 6
NUT 6MM 311 311B0600 4
WASHER PLAIN 6MM 411 411B0600 6
WASHER SPRING 6MM 461 461F0600 6
PIN,SNAP 554 554A0600 3
