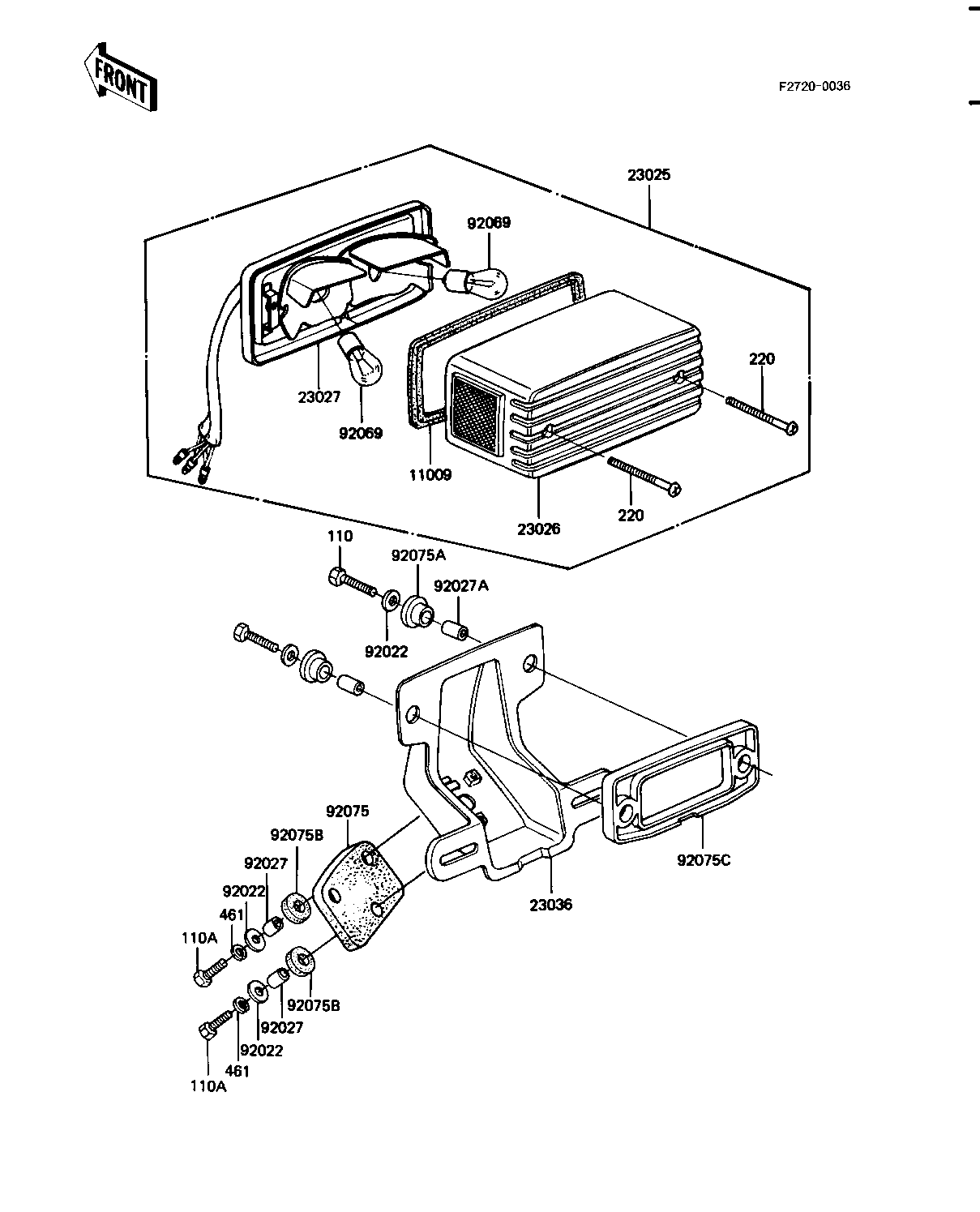

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP 11009 11009-1221 1
LAMP-TAIL 23025 23025-1025 1
LENS,TAIL LAMP 23026 23026-1021 1
BODY-COMP-TAIL LAMP 23027 23027-1013 1
BRACKET-TAIL LAMP 23036 23036-1033 1
WASHER 6.5X20X1.6T 92022 92022-125 5
COLLAR 6.8X10X14.5 92027 92027-156 3
COLLAR 92027A 92027-169 2
BULB,12V 32/3CP 92069 92069-059 2
DAMPER RUBBER,RR FEND 92075 35039-004 1
DAMPER RUBBER 92075A 92075-1092 2
DAMPER RUBBER,RR FEND 92075B 92075-121 3
DAMPER 92075C 92075-1282 1
BOLT 6X22 110 112B0622 2
BOLT-UPSET 110A 112G0625 3
SCREW-PAN-CROS 220 220C0465 2
WASHER SPRING 6MM 461 461F0600 3
