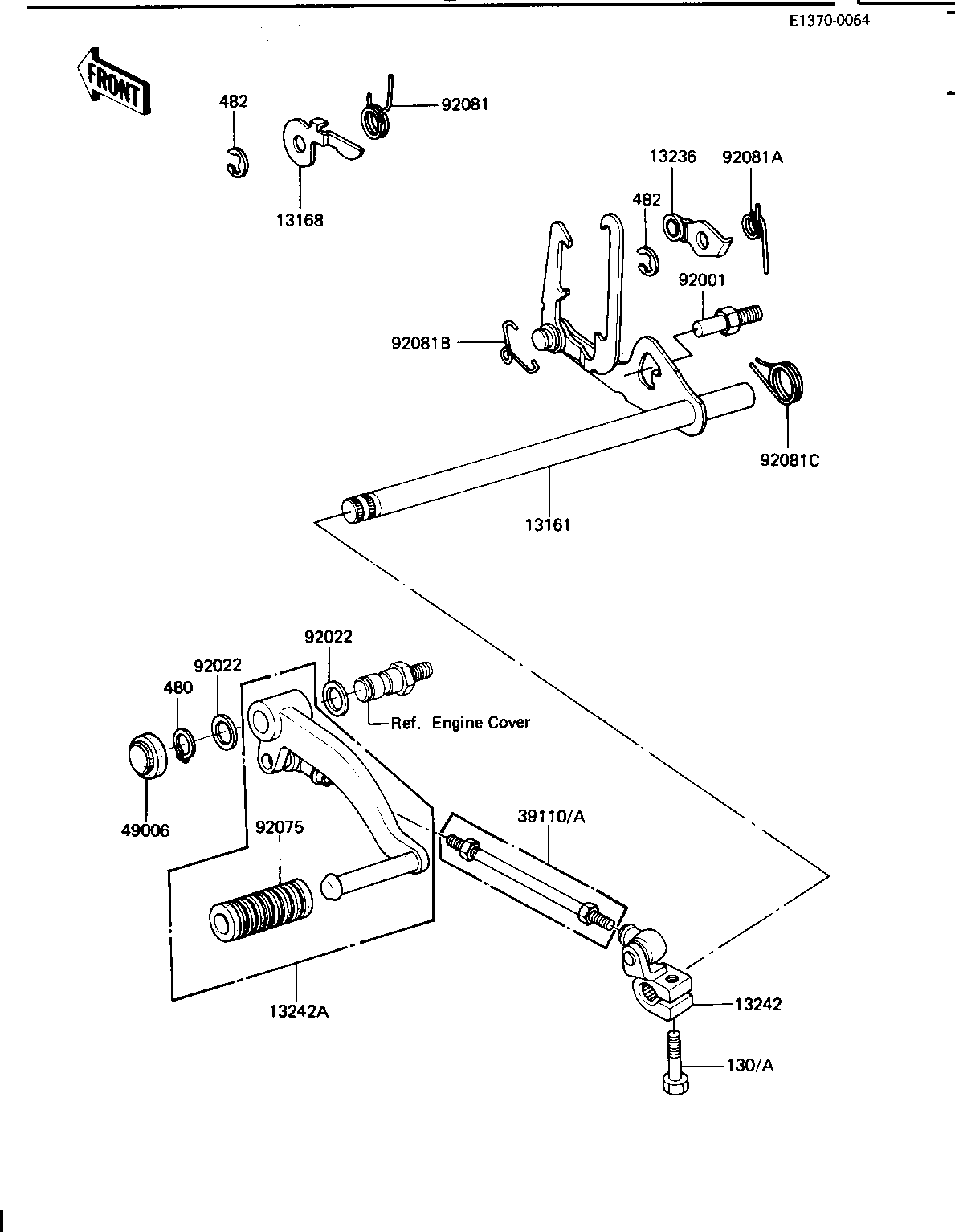

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHA 13161 13161-1023 1
LEVER,GEAR POSITIONIN 13168 13168-1074 1
LEVER-COMP,NEUTRAL PO 13236 13236-1029 1
LEVER-ASSY-CHANGE,ROD 13242 13242-1048 1
LEVER-ASSY-CHANGE,PDL 13242A 13242-1049 1
ROD-ASSY-TIE,L=90,BLA 39110A 39110-1008 1
BOOT,CHANGE LEVER 49006 49006-1061 1
BOLT,RETURN SPRING 92001 92001-1401 1
WASHER PLAIN 12MM 92022 92022-072 2
RUBBER CHANGE PEDAL 92075 13157-004 1
SPRING,POSITIONING LE 92081 92081-1284 1
SPRING 92081A 92081-1285 1
SPRING,KICK PAWL 92081B 92083-018 1
SPRING,CHG PEDL RTRN 92081C 92083-028 1
BOLT-FLANGED,6X20,BLA 130A 130S0620 1
CIRCLIP 12MM 480 480J1200 1
CIRCLIP 6MM 482 482J6000 2
