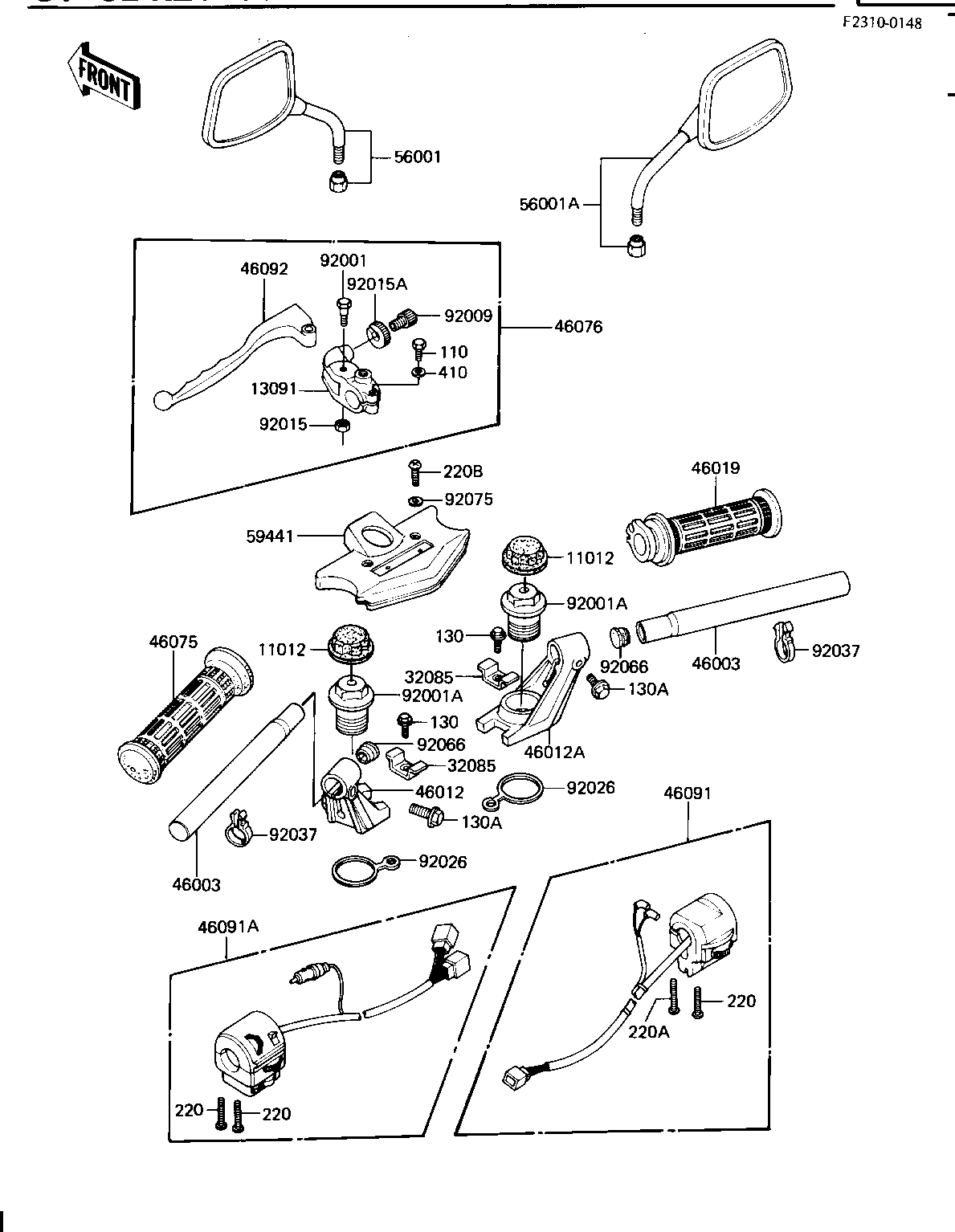

1982 GPz - HANDLEBAR (KZ1100-B2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,BOLT,PP,BLACK 11012 11012-1250 2
HOLDER,CLUTCH LEVER 13091 13091-1046 1
STOPPER 32085 32085-1092 2
HANDLEBAR 46003 46003-1094 2
HOLDER-HANDLE,LH 46012 46012-1022 1
HOLDER-HANDLE,RH 46012A 46012-1023 1
GRIP-ASSY,THROTTLE 46019 46019-1015 1
GRIP,LH 46075 46075-1022 1
LEVER-ASSY-GRIP,CLUTC 46076 46076-1026 1
HOUSING-ASSY-CNTRL,RH 46091 46091-1214 1
HOUSING-ASSY-CNTRL,LH 46091A 46091-1228 1
LEVER-GRIP,CLUTCH 46092 46092-1024 1
MIRROR-ASSY,LH 56001 56001-1352 1
MIRROR-ASSY,RH 56001A 56001-1353 1
COVER-HANDLE 59441 59441-1004 1
BOLT,CLUTCH LEVER,BLA 92001 92001-1548 1
BOLT,FLANGED,34X40,BL 92001A 92001-1563 2
SCREW,CABLE ADJUST,8 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK 92015A 92015-1197 1
SPACER,HANDLE HOLDER 92026 92026-1116 2
CLAMP,ID=16,PP 92037 92037-1334 2
PLUG,HANDLE 92066 92066-1093 2
WASHER-PLAIN,4MM 92075 23058-002 2
BOLT,6X22,BLACK 110 110C0622 1
BOLT-FLANGED,6X16 130 130J0616 2
BOLT-FLANGED,8X25,BLA 130A 130S0825 2
SCREW-PAN-CROS 220 220B0535 3
SCREW-PAN-CROS 220A 220B0540 1
SCREW-PAN-CROS 220B 220C0430 2
