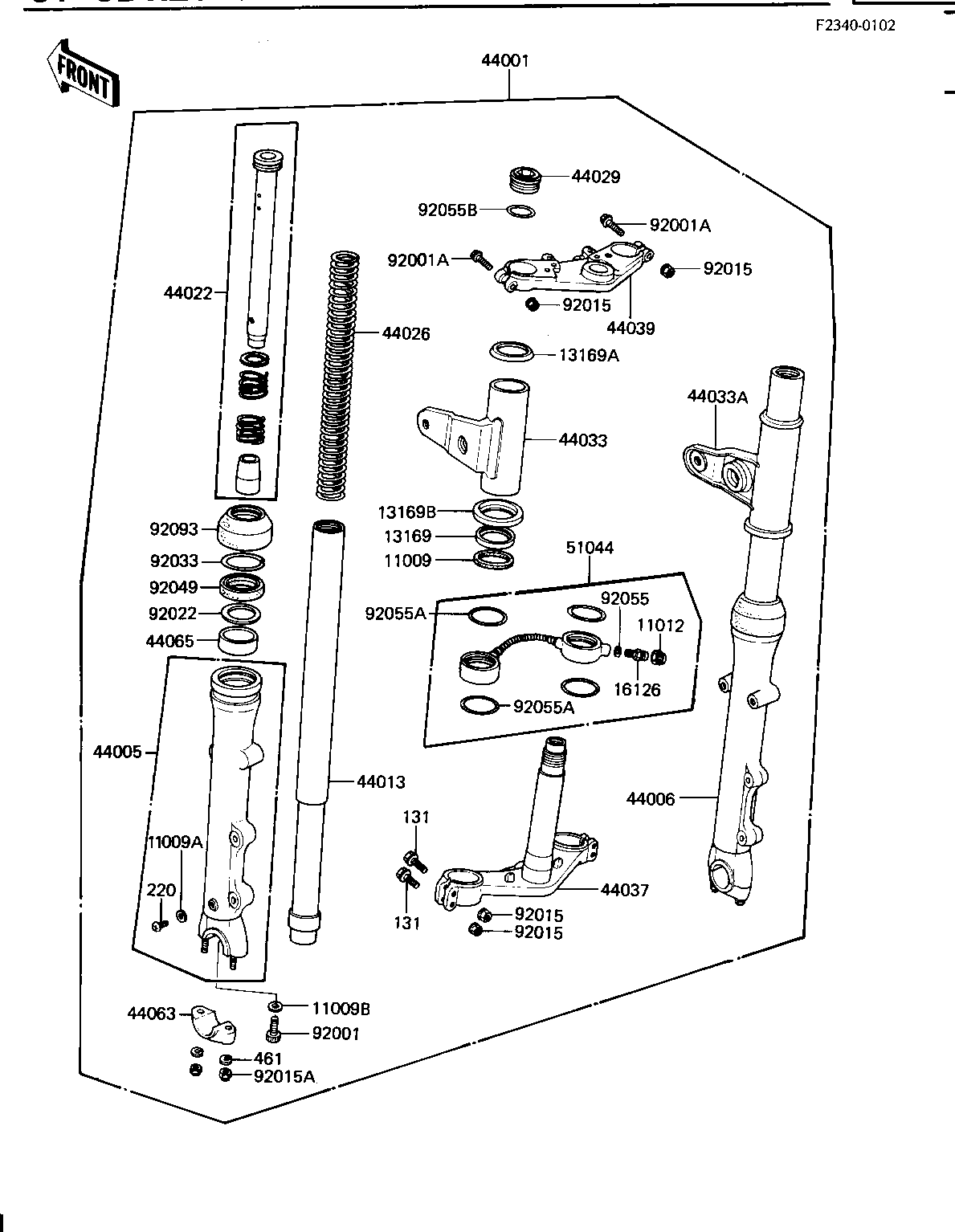

1982 GPz - FRONT FORK (KZ1100-B2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK COVER 11009 11009-1015 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
GASKET,FORK CYLINDER 11009B 44045-057 2
CAP,AIR VALVE 11012 11012-1241 2
WASHER,FRK COVER GIDE 13169 13169-1020 2
PLATE,FORK COVER,UPP 13169A 13169-1498 2
PLATE,FORK COVER,LWR 13169B 13169-1499 2
VALVE AIR 16126 16126-1052 1
FORK-FRONT 44001 44001-1338 1
TUBE,LH,FORK OUTER 44005 44005-1094 1
TUBE,RH,FORK OUTER 44006 44006-1094 1
PIPE-FORK INNER,INNER 44013 44013-1094 2
CYLINDER-FORK 44022 44022-1063 2
SPRING-FRONT FORK 44026 44026-1147 2
SEAT-FORK SPRING 44029 44029-1036 2
COVER-FORK-LH,F.BLACK 44033 44033-1085 1
COVER-FORK,RH,F.BLACK 44033A 44033-1086 1
HOLDER-FORK UNDER 44037 44037-1072 1
HOLDER-FORK UPPER 44039 44039-1052 1
HOLDER-FRONT AXLE 44063 44063-1006 2
BUSHING-FRONT FORK,OU 44065 44065-1091 2
TUBE-ASSY,AIR,FORK 51044 51044-1021 1
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,FLANGED,8X57,BLA 92001A 92001-1572 2
NUT,FLANGED,8MM 92015 92015-1408 6
NUT,U,8MM,BLACK 92015A 92015-1205 4
WASHER,FORK OUT PIPE 92022 92022-1262 2
SNAP RING,FORK OUTER 92033 92033-1047 2
SEAL-OIL,FORK OUTER T 92049 92049-1295 2
"0" RING,AIR VALVE 92055 92055-1094 1
RING-O,ROD 92055A 92055-1369 4
RING-O,FORK SPRING SE 92055B 92055-1135 2
SEAL 92093 92093-1051 2
BOLT-FLANGED,8X55,BLA 131 131J0855 4
SCREW PAN HEAD 4X8 220 220B0408 2
WASHER-SPRING,8MM,BLA 461 461K0800 4
