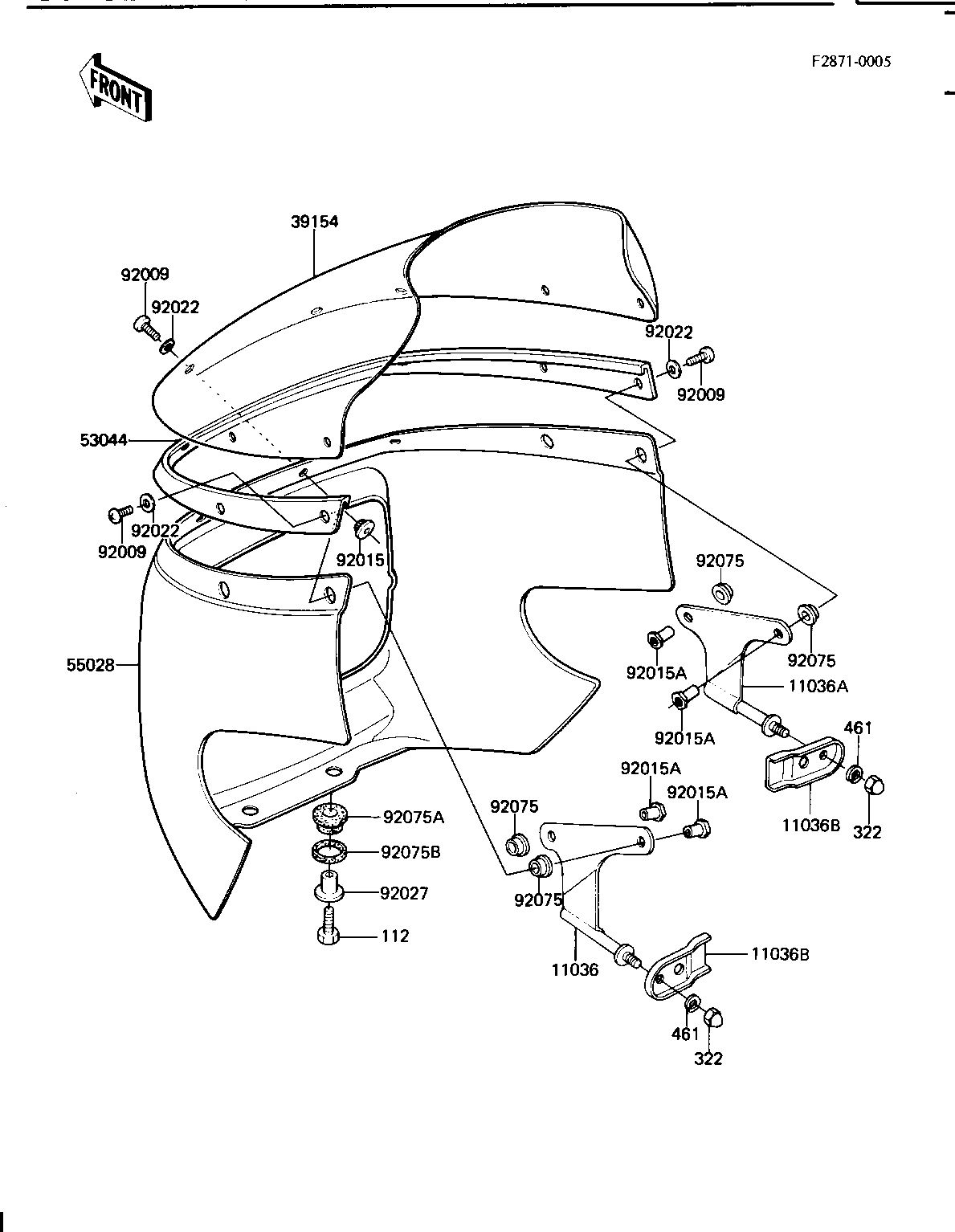

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-A,COWLING,LH, 11036 11036-1349 1
BRACKET-A,COWLING,RH, 11036A 11036-1350 1
BRACKET-A,COWLING 11036B 11036-1439 2
WINDSHIELD 39154 39154-1008 1
TRIM,COWLING 53044 53044-1036 1
COWLING,F.RED 55028 55028-1012-B1 1
SCREW-PAN-CROS,5X12,B 92009 220C0512 7
NUT,5M/M 92015 92015-1025 3
NUT,5MM 92015A 92015-1150 4
WASHER,PLAIN 92022 92022-1038 7
COLLAR,L=13.1,BLACK 92027 92027-1450 2
DAMPER,PILOT LAMP 92075 92075-1138 4
RUBBER,FENDER COVER 92075A 92075-174 2
DAMPER RUBBER 92075B 92075-175 2
BOLT-UPSET,6X25,BLACK 112 112C0625 2
NUT-CAP,6MM,BLACK 322 322C0600 2
WASHER-SPRING,6MM,BLA 461 461K0600 2
