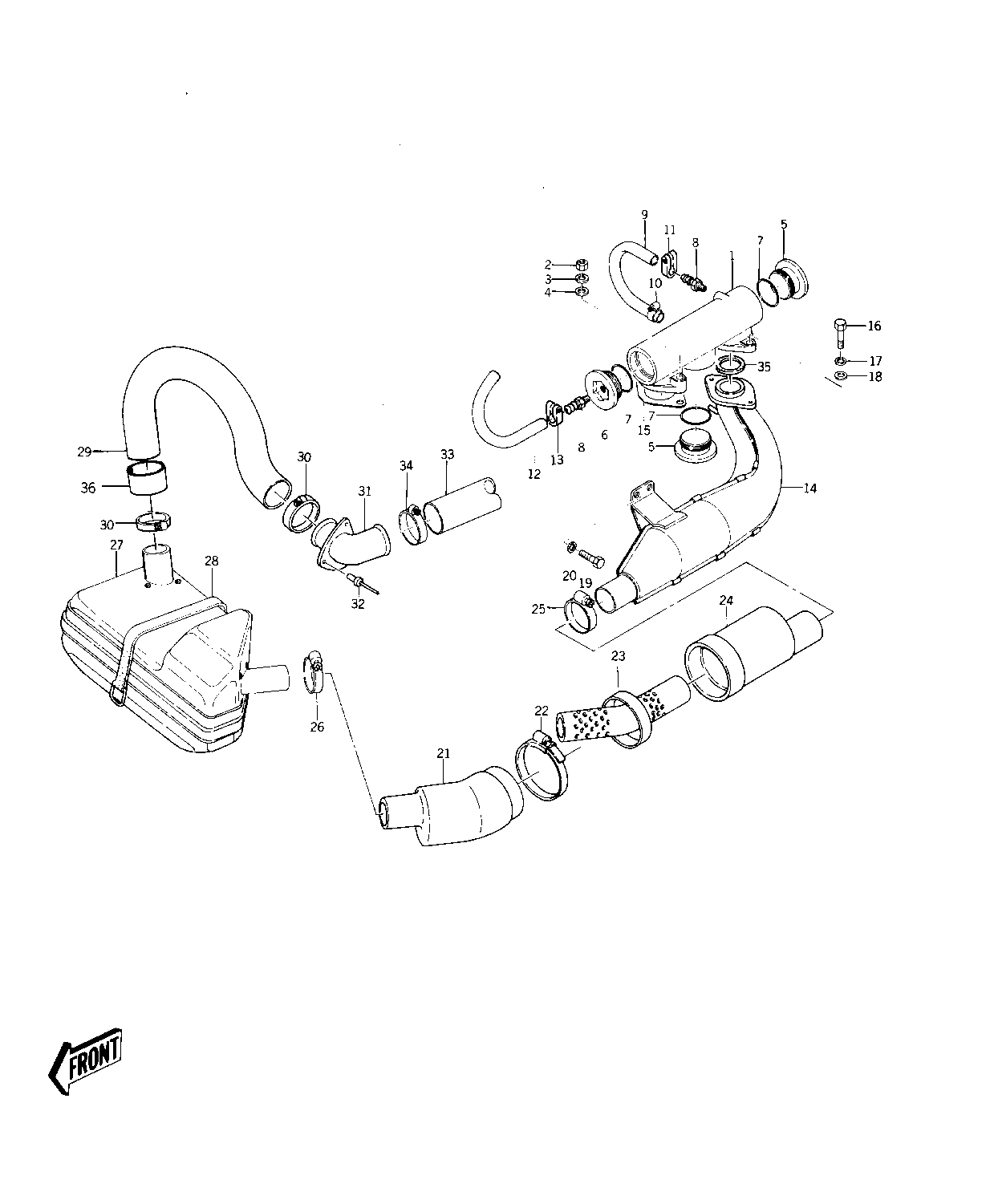

1976 JS400 - MUFFLER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-EXHAUST 1 18049-3006-YR 1
NUT,8 M/M 2 311M0800 2
WASHER SPRING 8MM 3 461S0800 2
WASHER 4 410S0800 2
PLUG,EXHAUST(1) 5 92066-501-9G 2
PLUG,EXHAUST(2) 6 92066-502-9G 1
"0" RING 7 671B2545 3
JOINT,HOSE 8 92005-3001 2
HOSE 9 92059-523 1
CLAMP,HOSE 10 92037-504 1
CLAMP,HOSE 11 92037-504 1
HOSE 12 92059-523 1
CLAMP,HOSE 13 92037-504 2
EXPANSION CHAMBER 14 18001-520 1
GASKET,EXHAUST 15 11060-3710 1
BOLT,8X45 16 110R0845 2
WASHER SPRING 8MM 17 461S0800 2
WASHER 18 410S0800 2
BOLT,8X20 19 110R0820 2
WASHER SPRING 8MM 20 461S0800 2
TUBE 21 92059-543 1
CLAMP 22 92037-541 1
PIPE-RESNTR. CONNECTR 23 59151-528 1
TUBE 24 92059-542 1
CLAMP,HOSE 25 92037-506 1
CLAMP 26 92037-509 1
MUFFLER-COMP,WATERBOX 27 49070-3714 1
BAND 28 92072-511 1
HOSE 29 92059-528 1
CLAMP 30 92037-509 2
PIPE,TAIL 31 59156-505-9G 1
RIVET-TAIL PIPE 32 59281-501 3
HOSE,TAIL 33 92059-529 1
CLAMP 34 92037-509 1
GASKET,EXHAUST 35 11009-3784 1
TUBE 36 92059-550 1
