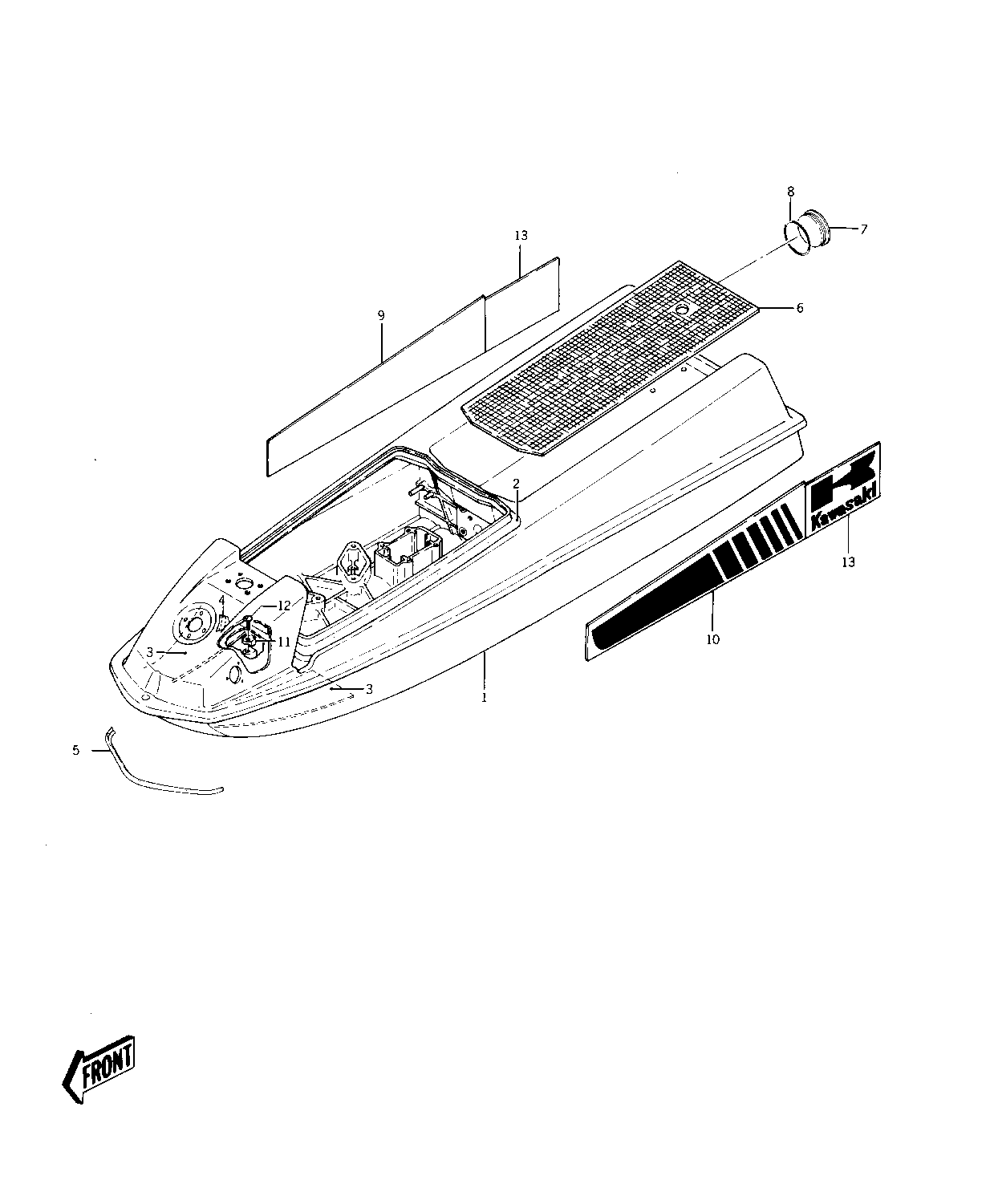

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HULL-ASSY,JET-WHITE 1 59431-3704-8C 1
GASKET,ENGINE COVER 2 92065-539 1
DAMPER 3 92075-512 2
LABEL-FUEL 4 56022-503 1
BUMPER 5 59201-502 1
MAT 6 59131-502 1
CAP,FIRE EXT.BLACK 7 11012-3724 1
"0" RING 8 671B2585 1
LABEL-HULL-RT 9 56027-521 1
LABEL-HULL-LEFT 10 56027-520 1
HOOK 11 27012-501 10
SCREW 0.22 X 0.563 12 92011-561 10
LABEL-HULL,"K" 13 56027-522 2
