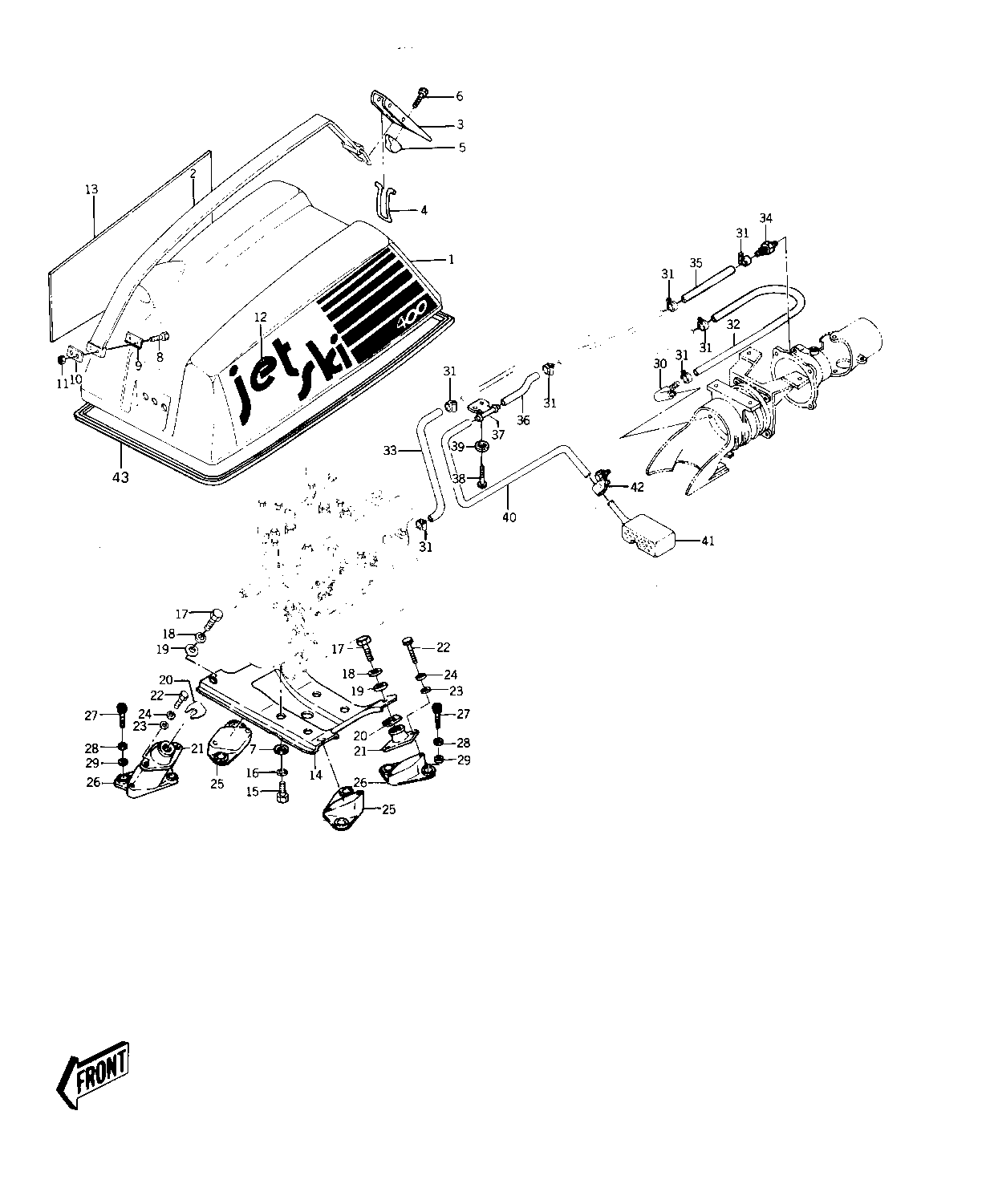

1976 JS400 - ENGINE HOOD/COOLING & BILGE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ENGINE COVER 1 59246-3001-8A 1
BAND,HOOD 2 92072-3746 1
LEVER 3 59126-506 1
HINGE-HOOD LEVER 4 53009-503 1
DETENT-HOOD LEVER 5 59346-503 1
SCREW 0.16X0.5 6 92011-562 1
WASHER 7 411S1400 4
BOLT,6X30 8 92001-3022 2
WASHER,BAND 9 92022-509 1
PLATE-ENG. CVR. STRAP 10 59086-501 1
NUT,6M/M 11 311R0600 2
LABEL-ENG COVER-LH 12 56027-512 1
LABEL-ENG COVER-RH 13 56027-513 1
BED,ENGINE 14 59181-509-9G 1
BOLT 1/2 IN.X31 15 92003-533 4
WASHER-SPRING,14MM 16 461S1400 4
BOLT 10X25 17 110R1025 4
WASHER-SPRING,10MM 18 461S1000 4
WASHER,O32XO10.5X4T 19 92022-3023 4
SHIM-1.0T 20 92025-529 AR
SHIM 0.3T 20 92025-510 AR
SHIM 0.5T 20 92025-511 AR
SHIM 1.0T 20 92025-512 AR
DAMPER,ENGINE MOUNT 21 92160-3756 4
BOLT,8X20 22 110R0820 8
WASHER 23 411S0800 8
WASHER SPRING 8MM 24 461S0800 8
BRACKET-ENGINE BED 25 59016-532 2
BRACKET-ENGINE BED 26 59016-533 2
BOLT 8X22 27 92003-528 8
WASHER SPRING 8MM 28 461S0800 8
WASHER 29 411S0800 8
ELBOW 30 52014-503 1
CLAMP,HOSE 31 92037-504 7
HOSE,WATER (1) 32 92059-503 1
HOSE,WATER (3) 33 92059-534 1
JOINT,HOSE 34 92005-3001 1
HOSE,BILGE (3) 35 92059-536 1
HOSE,BILGE (2) 36 92059-535 1
BREATHER-BILGE LINE 37 43056-501 1
SCREW 0.16X0.5 38 92011-562 2
WASHER 39 92022-563 2
HOSE,BILGE (1) 40 92059-506 1
FILTER,BILGE PUMP 41 59236-504 1
CLAMP 42 92037-537 1
GROMMET 43 92071-532 1
