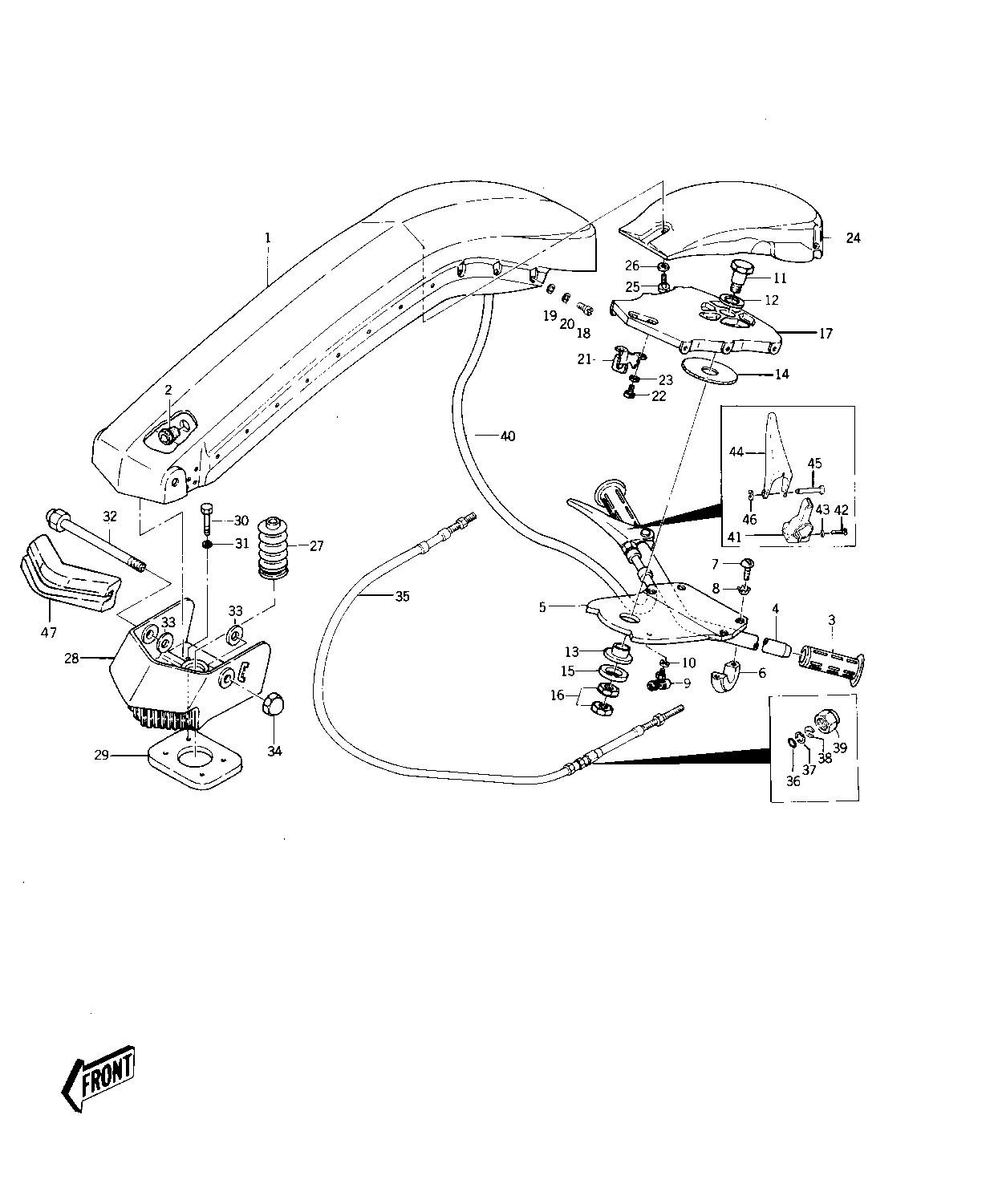

1976 JS400 - HANDLE POLE/CABLES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 59166-513-8A 1
GROMMET 2 92071-530 1
GRIP,HANDLE,RH 3 46075-3704 2
HANDLEBAR 4 32032-3017 1
PLATE,HANDLE BAR 5 59086-534 1
CLAMP,HANDLE PIPE 6 92037-503 2
SCREW,8X25 7 221R0825 4
WASHER 8 92095-511 4
JOINT-BALL 9 59266-3707 1
WASHER-SPRING,6MM 10 461S0600 1
BOLT 18X46 11 92003-527 1
WASHER 12 92022-511 1
BUSH 13 92028-508 1
BUSH 14 92028-501 1
WASHER 15 92022-571 1
NUT 18M/M 16 92015-506 2
BRACKET,HANDLE SUPORT 17 59016-552 1
SCREW,6X18 18 220R0618 6
WASHER 19 411S0600 6
WASHER-SPRING,6MM 20 461S0600 6
HOLDER,CABLE 21 16065-509 1
SCREW,PAN HEAD,6X12 22 220R0612 2
WASHER-SPRING,6MM 23 461S0600 2
FLOAT ASSY, HANDLE 24 16031-506 1
SCREW 0.16X0.5 25 92011-562 3
WASHER 26 92022-563 3
COVER,WIRE 27 59176-512 1
BRACKET,POLE 28 59016-548-9H 1
PLATE 29 59086-518 1
BOLT-8X30MM 30 110R0830 4
WASHER 31 411S0800 4
BOLT,14X183 32 92001-3018 1
WASHER 33 92022-507 2
NUT 14M/M 34 92015-507 1
CABLE,STEERING 35 59406-3001 1
"O" RING 36 670B2011 1
WASHER 37 92022-535 1
'C'RING 38 92036-501 1
NUT 20 M/M 39 92015-526 1
THROTTLE CABLE ASS'Y 40 59206-502 1
BRACKET,THROTTLE LEV 41 11034-3009 1
SCREW 6X30 42 214R0630 1
WASHER-SPRING,6MM 43 461S0600 1
LEVER,THROTTLE 44 59126-509 1
PIN,THROTTLE 45 92043-508 1
RING,SNAP 46 92036-518 1
DAMPER 47 92075-519 1
