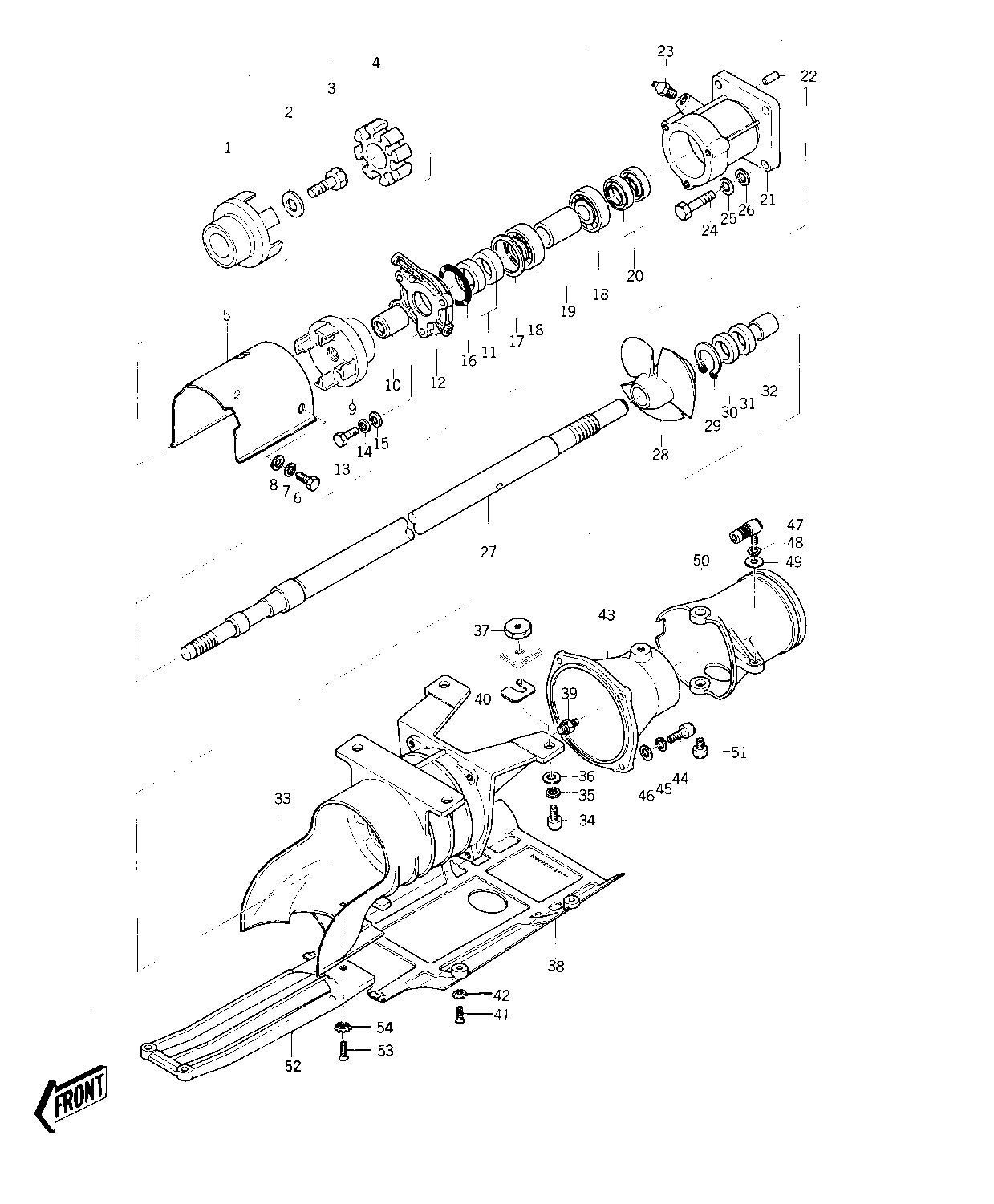

1976 JS400 - DRIVE SHAFT/JET PUMP

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COUPLING ASSY,DRIVER 1 42053-3004 1
WASHER 2 92022-514 1
BOLT,1/2 INCHX27 3 92003-537 1
RUBBER,COUPLING 4 92075-501 1
COVER,COUPLING 5 59036-567 1
BOLT 6X12 6 110R0612 3
WASHER-SPRING,6MM 7 461S0600 3
WASHER 8 411S0600 3
COUPLING,DRIVEN 9 42034-501 1
SLEEVE,BEARING 10 42036-501 1
SEAL,OIL AC1799EX 11 92050-501 2
COVER,BEARING 12 14025-3008 1
BOLT,8X25 13 110R0825 3
WASHER SPRING 8MM 14 461S0800 3
WASHER 15 411S0800 3
"0" RING 16 92055-501 1
SHIM 0.15T 17 92025-502 AR
SHIM 0.3T 17 92025-503 AR
BEARING BALL #6305 18 601B6305 2
COLLAR 19 92027-502 1
SEAL,OIL AC1799EX 20 92050-501 2
HOLDER 21 41046-502 1
PIN,DOWEL 22 551R0612 2
NIPPLE,GREASE 23 92005-501 1
BOLT,8X25 24 110R0825 4
WASHER SPRING 8MM 25 461S0800 4
WASHER 26 411S0800 3
SHAFT,DRIVE 27 59111-515 1
IMPELLER 28 59256-504 1
RING,SNAP 29 92036-502 1
SEAL,OIL SC20367 30 92050-503 1
SEAL,OIL SCY20368 31 92050-502 1
BUSH 32 92028-503 1
CASE-PUMP 33 59336-3701 1
BOLT-SOCKET 34 120R1025 4
WASHER-SPRING,10MM 35 461S1000 4
WASHER 36 411S1000 4
NUT 10M/M 37 92015-527 4
COVER,PUMP 38 59036-558 1
NIPPLE,GREASE 39 92005-501 1
SHIM 0.15T 40 92025-504 AR
SHIM 0.3T 40 92025-505 AR
SHIM 0.5T 40 92025-506 AR
SHIM 1.0T 40 92025-507 AR
SCREW 6X16 41 92011-563 4
WASHER 42 92095-512 4
NOZZLE,PUMP 43 59136-3001 1
BOLT 8X22 44 92003-528 4
WASHER SPRING 8MM 45 461S0800 4
WASHER 46 92022-562 4
JOINT-BALL 47 59266-3707 1
WASHER-SPRING,6MM 48 461S0600 1
WASHER 49 92022-567 1
NOZZLE-STRG 50 59476-3702 1
BOLT 6X11 51 92003-532 2
GRATE 52 59366-3001 1
SCREW 6X16 53 92011-563 3
WASHER 54 92095-512 3
BUSH 55 92028-511 2
