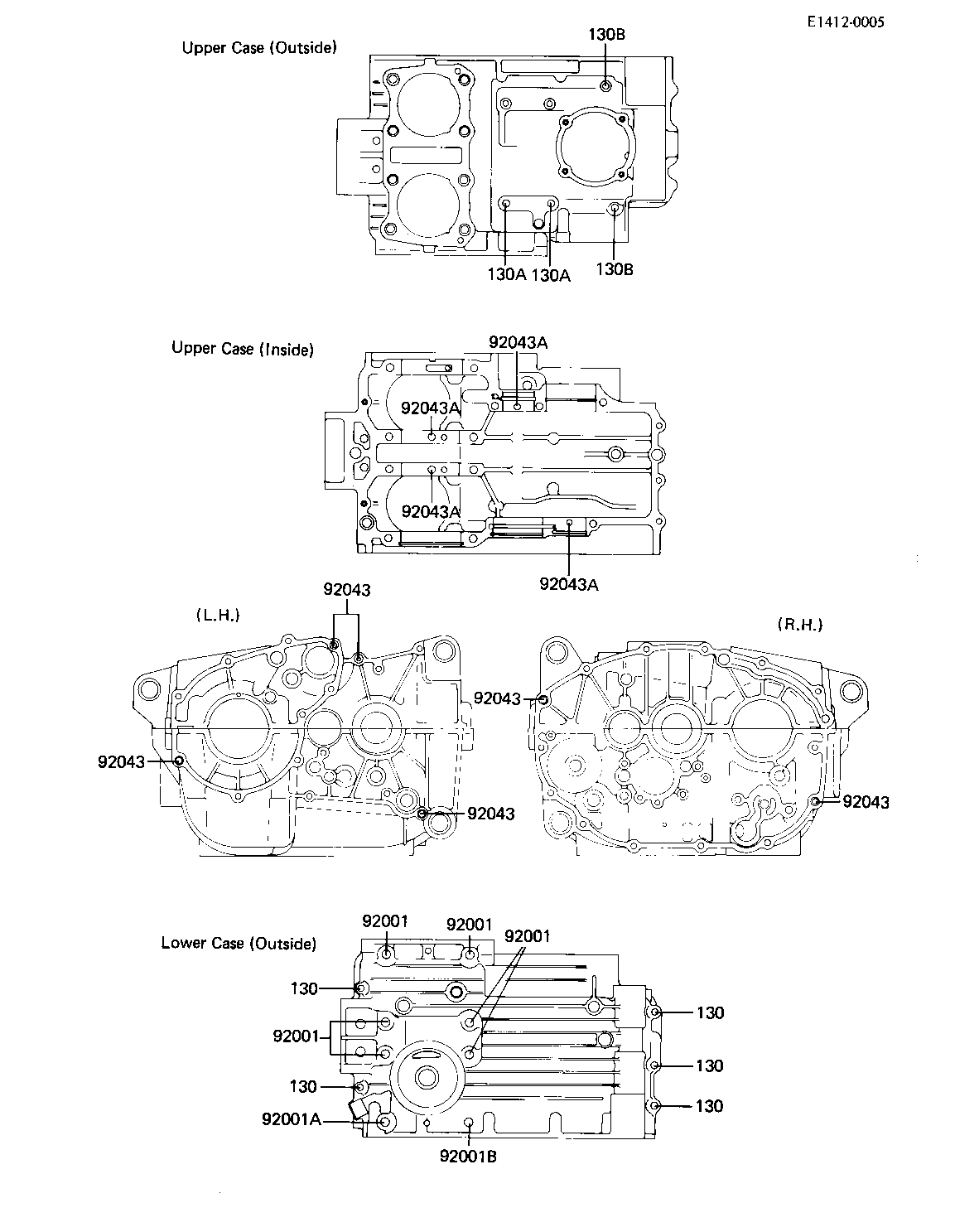

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 92001 92001-1480 6
BOLT 92001A 92001-1481 1
BOLT,8X140 92001B 92002-1059 1
PIN-DOWEL 92043 92042-007 6
PIN DOWEL 6MM 92043A 92042-016 4
BOLT,FLANGED,6X35 130 130H0635 5
BOLT,FLANGED,6X55 130A 130G0655 2
BOLT-FLANGED,6X90 130B 130G0690 2
