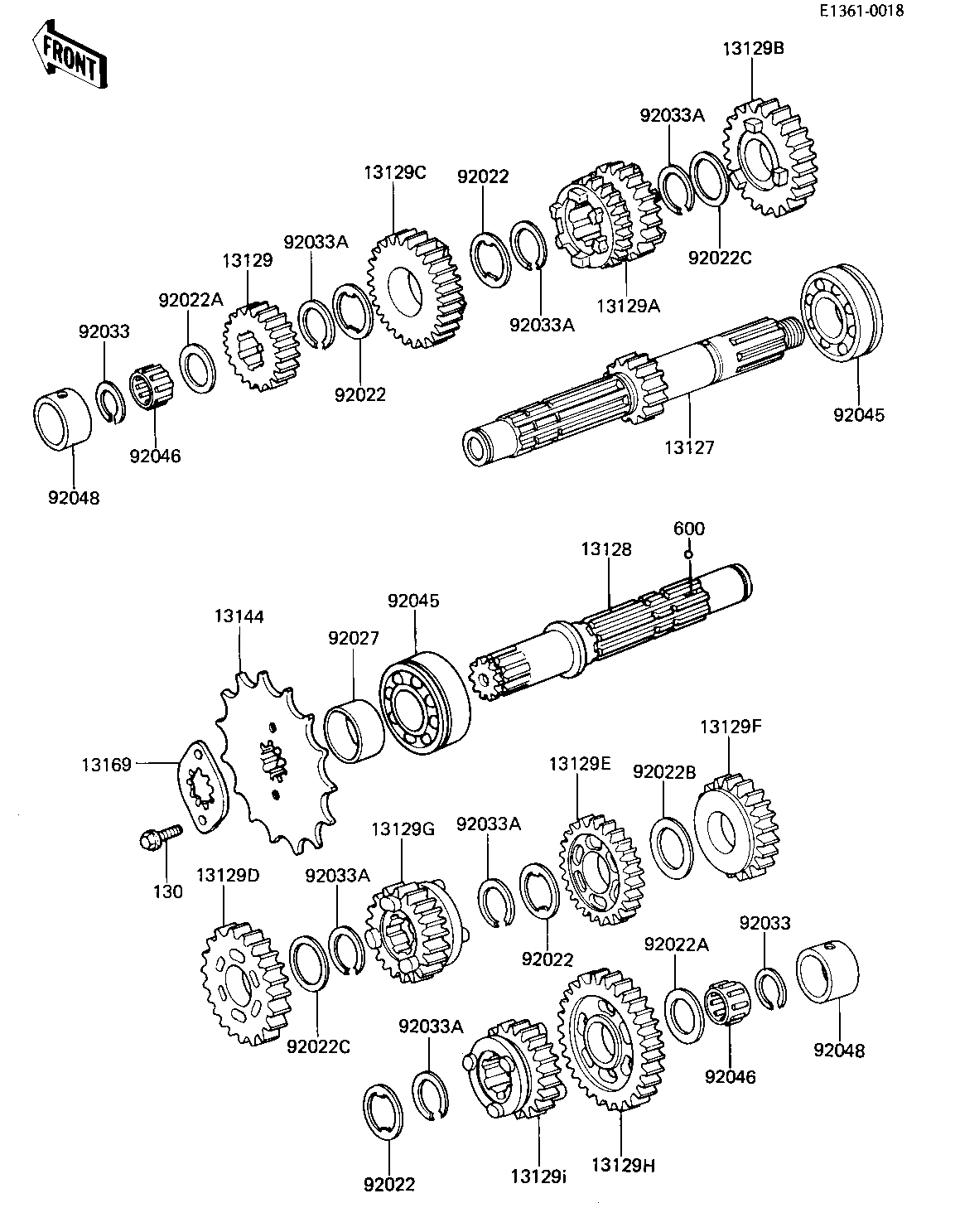

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT,DRIVE,15T | 13127 | 13127-1009 | 1 | ||
| SHAFT,OUTPUT | 13128 | 13128-1032 | 1 | ||
| 2ND GEAR,DRIVE,19T | 13129 | 13129-1086 | 1 | ||
| GEAR,INPUT 3RD&4TH,22 | 13129A | 13260-1098 | 1 | ||
| 5TH GEAR,DRIVE,27T | 13129B | 13129-1088 | 1 | ||
| TOP GEAR,DRIVE,28T | 13129C | 13129-1089 | 1 | ||
| 2ND GEAR, OUTPUT,34T | 13129D | 13129-1091 | 1 | ||
| 3RD GEAR,OUTPUT,31T | 13129E | 13129-1092 | 1 | ||
| 4TH GEAR,OUTPUT,29T | 13129F | 13129-1093 | 1 | ||
| GEAR,OUTPUT TOP,25T | 13129G | 13260-1099 | 1 | ||
| LOW GEAR,OUTPUT,39T | 13129H | 13129-1254 | 1 | ||
| GEAR,OUTPUT 5TH,27T | 13129I | 13260-1112 | 1 | ||
| SPROCKET-OUTPUT,ENG | 13144 | 13144-1046 | 1 | ||
| PLATE,SPROCKET | 13169 | 13270-1060 | 1 | ||
| WASHER,LOCK,30X1.OT | 92022 | 92022-1072 | 4 | ||
| WASHER THRUST | 92022A | 92022-112 | 2 | ||
| WASHER TH 25.5X38X1T | 92022B | 92022-145 | 1 | ||
| WASHER-PLAIN 25MM | 92022C | 92022-159 | 2 | ||
| COLLAR,ENG SPROCKET | 92027 | 92027-1322 | 1 | ||
| CIRCLIP | 92033 | 92033-015 | 2 | ||
| CIRCLIP | 92033A | 92033-026 | 6 | ||
| BEARING-BALL,#6205NX3 | 92045 | 92045-1013 | 2 | ||
| BRG,N,20R25139 | 92046 | 92046-044 | 2 | ||
| RACE,NEEDLE BEARING | 92048 | 92048-1003 | 2 | ||
| BOLT,FLANGED,6X12 | 130 | 130G0612 | 2 | ||
| BALL STEEL 5/32' | 600 | 600A0500 | 3 |
