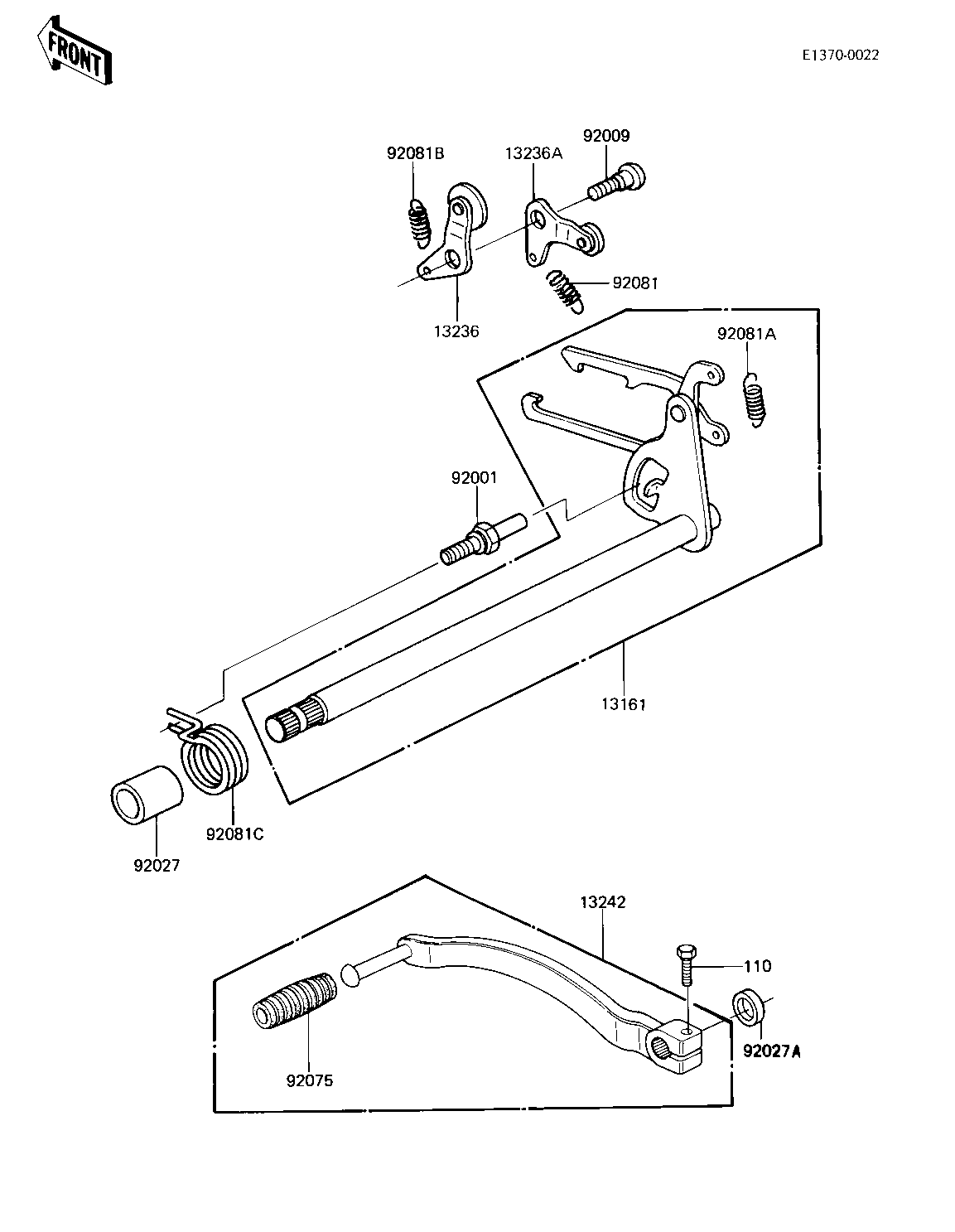

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHA 13161 13161-1007 1
LEVER ASSY,GEAR POSIT 13236 13236-1037 1
LEVER-COMP,NEUTRAL 13236A 13236-1038 1
LEVER-ASSY-CHANGE,PED 13242 13242-1038 1
BOLT,RETURN SPRING 92001 92001-1401 1
SCREW-PAN HEAD 92009 92011-023 1
COLLAR,13X18.3X21.5 92027 92027-1440 1
DAMPER,CHANGE PEDAL 92075 92160-1036 1
SPRING CHNG DRUM LEV 92081 92081-051 1
SPRING-CHANGE LEVER 92081A 92081-076 1
SPRING,GEAR POSITION 92081B 92081-1354 1
SPRING,GEAR CHANGE 92081C 92083-031 1
BOLT-UPSET,6X20 110 112G0620 1
