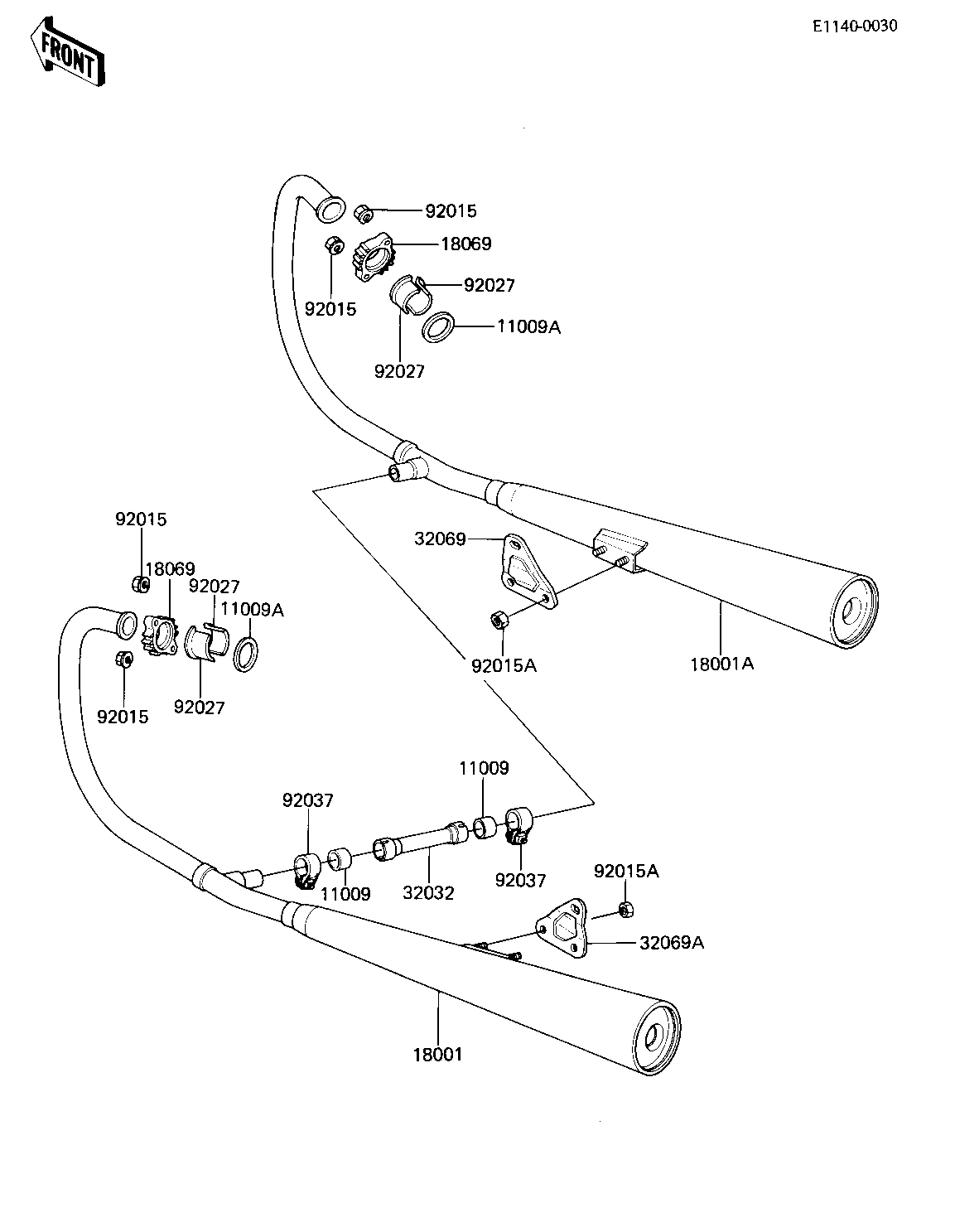

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNEC 11009 11060-1051 2
GASKET,EXHAUST PIPE H 11009A 11009-1866 2
MUFFLER,LH 18001 18001-1296 1
MUFFLER,RH 18001A 18001-1297 1
HOLDER,EXHAUST PIPE 18069 18069-1006 2
PIPE,MUFFLER CONNECTI 32032 32032-1669 1
BRACKET,MUFFLER,R.H. 32069 32069-1065 1
BRACKET,MUFFLER,LH 32069A 32069-1076 1
NUT-6MM 92015 92015-1078 4
NUT,LOCK,8MM 92015A 92017-013 4
COLLAR,EXHAUST PIPE 92027 92027-264 4
CLAMP,MUFFLER,37MM 92037 92037-1243 2
