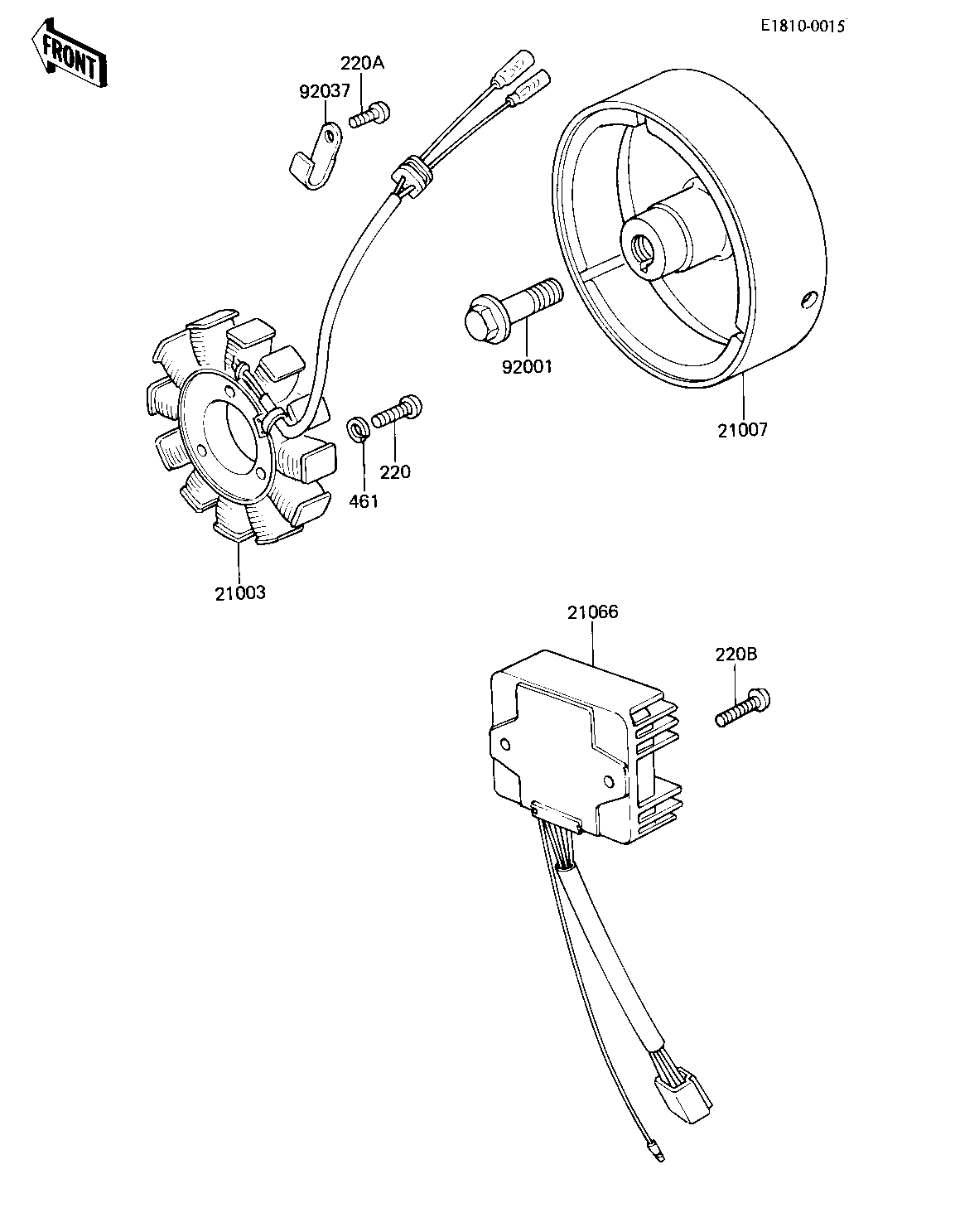

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR,GENERATOR 21003 21003-1012 1
ROTOR,GENERATOR 21007 21007-1009 1
REGULATOR-VOLTAGE 21066 21066-1013 1
BOLT,10X40 92001 92001-1201 1
CLAMP,WIRING HARNESS 92037 21126-008 1
SCREW PAN HEAD 5X30 220 220B0530 3
SCREW PAN HEAD 6X12 220A 220B0612 1
SCREW PAN HEAD 6X14 220B 220B0614 2
WASHER SPRING 5MM 461 461F0500 3
