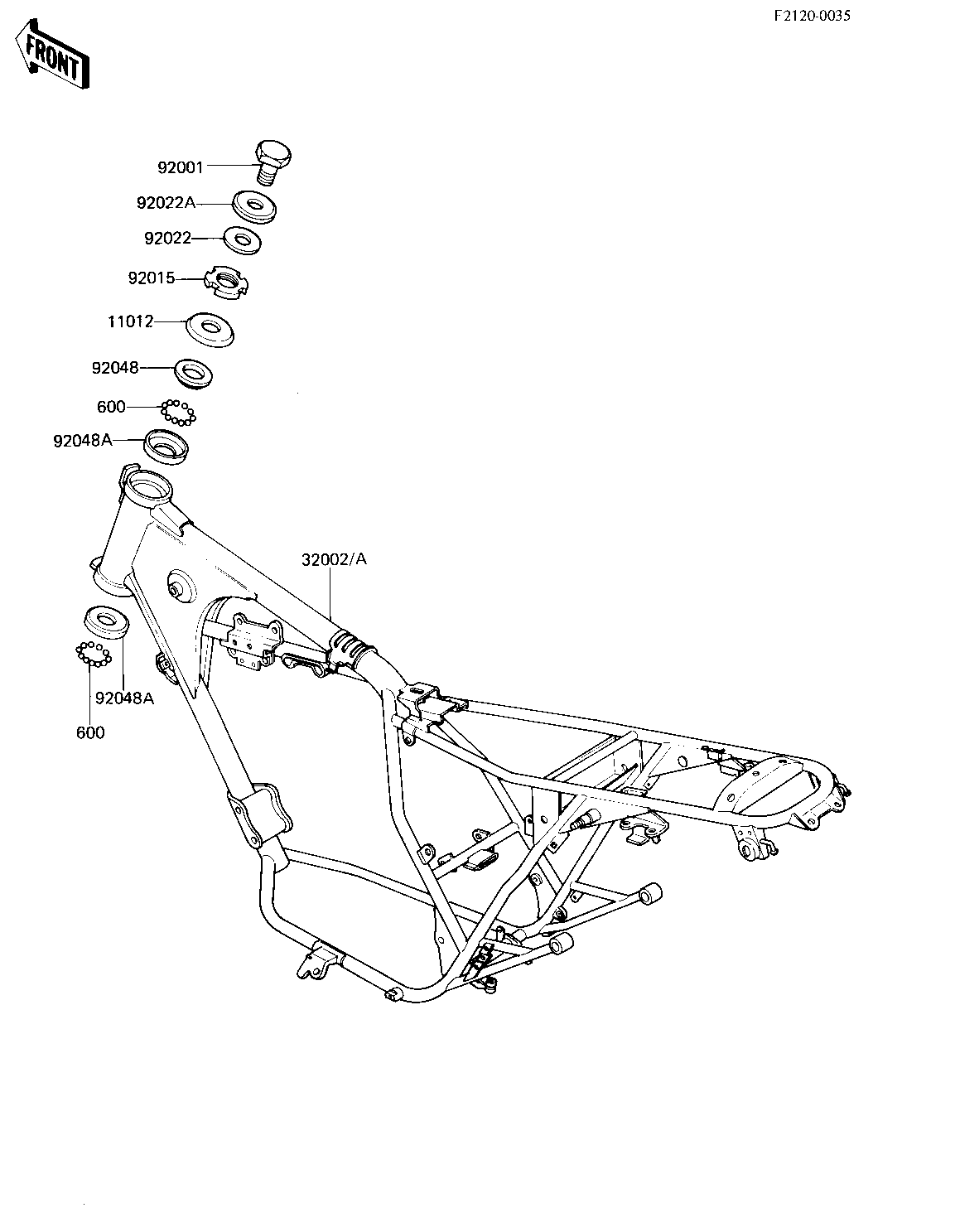

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP, STEERING STEM 11012 46098-016 1
FRAME-COMP 32002A 32002-1498 1
BOLT,STEERG STEM HEAD 92001 92007-031 1
NUT STEERING STEM LCK 92015 92090-007 1
WASHER,WAVE 92022 46100-003 1
WASHER,STEERG STM HD 92022A 92022-230 1
CONE STRNG STEM BERNG 92048 92047-006 1
RACE STRNG STEM BERNG 92048A 92048-006 2
BALL STEEL 1/4' 600 600A0800 38
