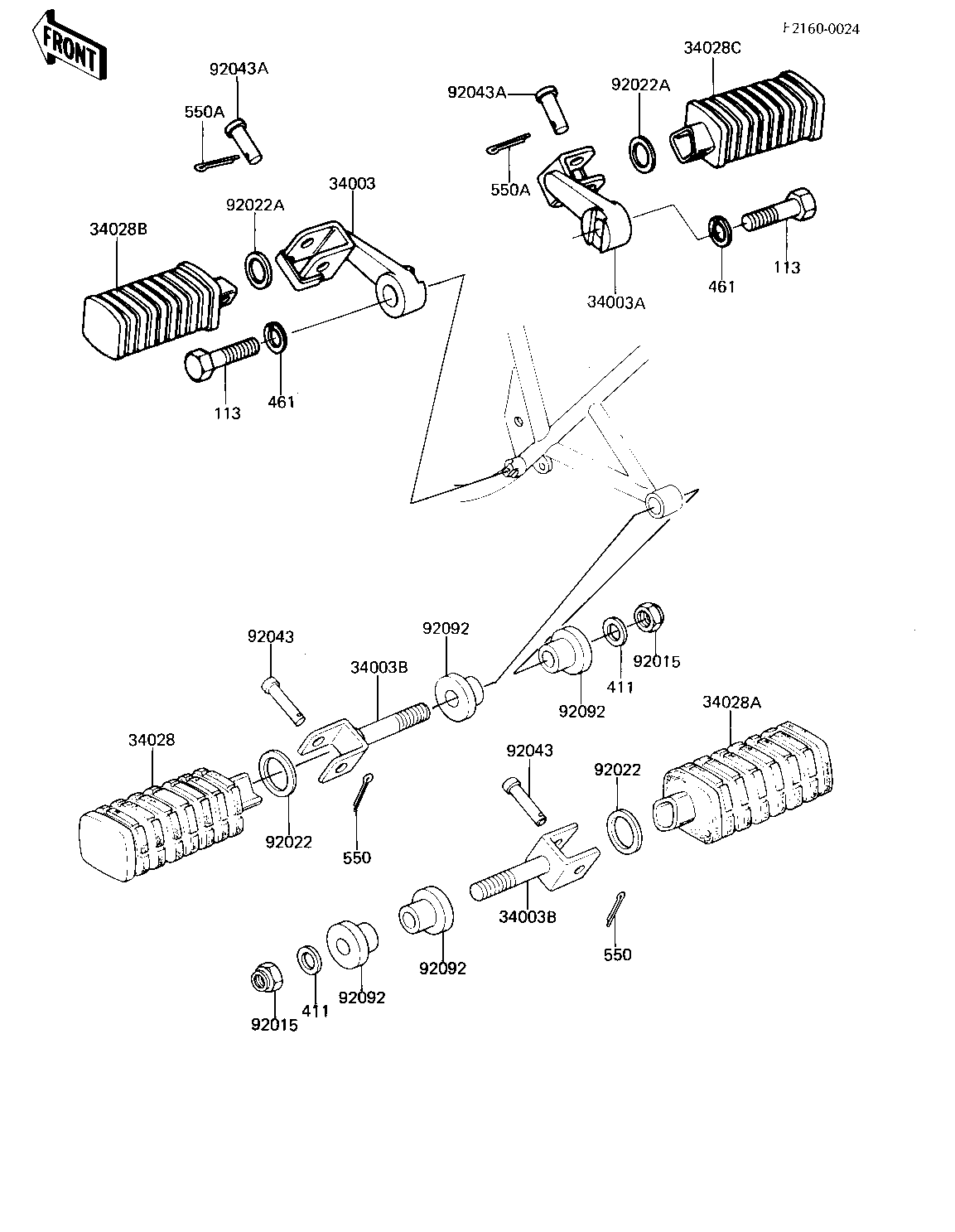

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,FR,LH 34003 34003-1099 1
HOLDER-STEP,FR,RH 34003A 34003-1117 1
BRACKET,REAR FOOTREST 34003B 34029-011 2
STEP,FOOTREST,REAR,LH 34028 34028-1009 1
STEP,FOOTREST,REAR,RH 34028A 34028-1010 1
STEP-ASSY,FR,RH 34028B 34028-1018 1
STEP-ASSY,FR,RH 34028C 34028-1018 1
NUT,LOCK,10MM 92015 92019-021 2
WASHER-PLAIN 92022 92022-181 2
WASHER,PLAIN 92022A 92022-250 2
PIN 92043 92043-1464 2
PIN,FOOTREST BAR FIT 92043A 92043-115 2
BUSHING,MUFFLER FITT 92092 92092-010 4
BOLT,HEX HEAD,12X25 113 113G1225A 2
WASHER PLAIN 10MM 411 411B1000 2
WASHER SPRING 12MM 461 461F1200 2
PIN,COTTER,2.0X12 550 550D2012 2
PIN,COTTER,2.5X15 550A 550D2515 2
