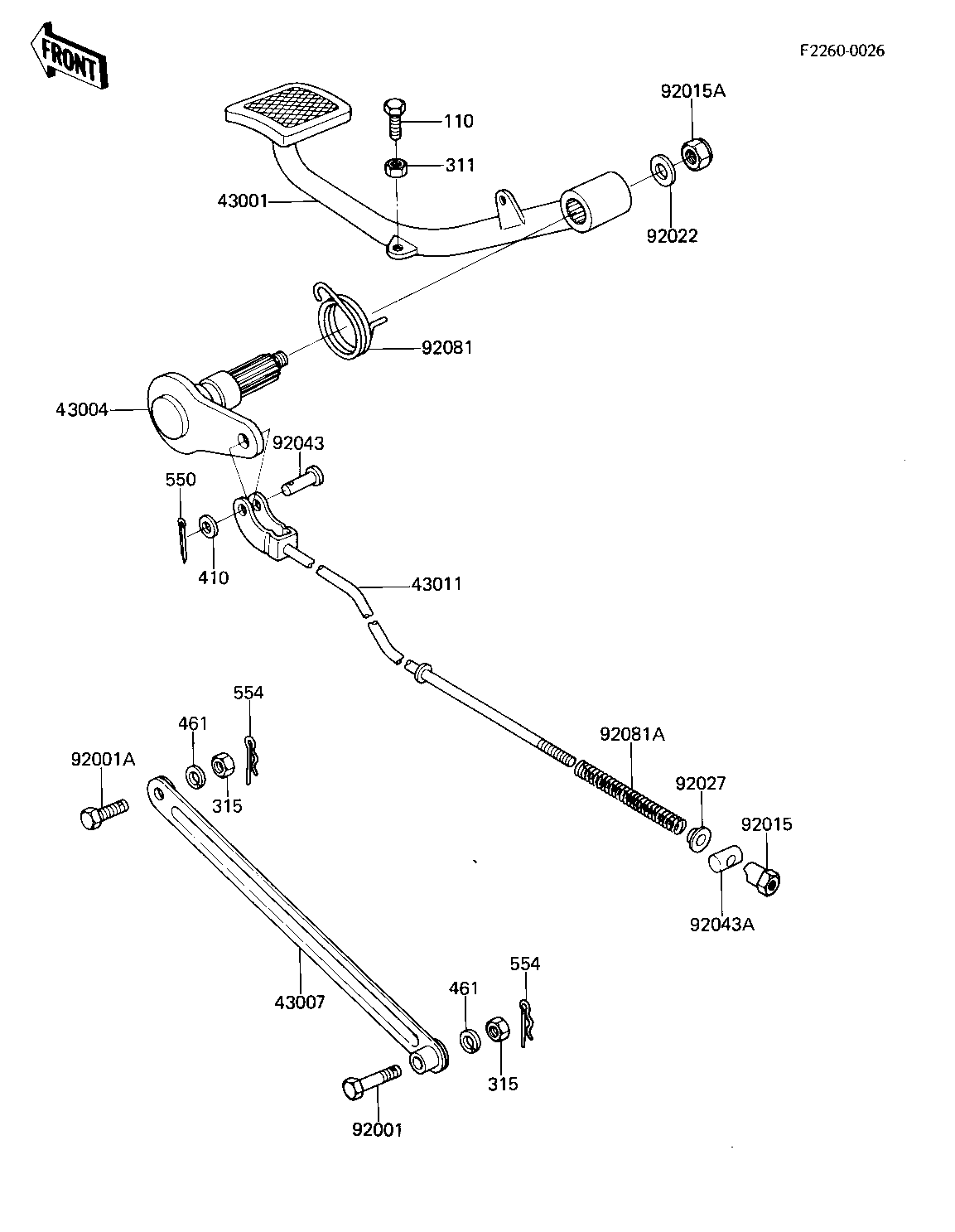

1982 CSR - BRAKE PEDAL/TORQUE LINK (KZ305-A1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVEL-BRAKE,PEDAL | 43001 | 43001-1116 | 1 | ||
SHAFT-BRAKE | 43004 | 43004-1023 | 1 | ||
ROD-TORQUE | 43007 | 43007-1022 | 1 | ||
ROD-BRAKE | 43011 | 43011-1032 | 1 | ||
BOLT,10X45 | 92001 | 92001-1423 | 1 | ||
BOLT TORQUE LINK FIT | 92001A | 92003-017 | 1 | ||
NUT-BRAKE ROD ADJUST | 92015 | 92015-042 | 1 | ||
NUT,CAP,LOCK,8MM | 92015A | 92015-1131 | 1 | ||
WASHER,8.5X20X1.6 | 92022 | 92022-1561 | 1 | ||
COLLAR | 92027 | 92027-122 | 1 | ||
PIN-BRAKE ROD FITTING | 92043 | 92043-064 | 1 | ||
PIN-BRAKE ROD | 92043A | 92043-065 | 1 | ||
SPRING,BRAKE PEDAL | 92081 | 43005-022 | 1 | ||
SPRING,BRAKE ROD | 92081A | 43012-001 | 1 | ||
BOLT-UPSET,6X20 | 110 | 112G0620 | 1 | ||
NUT 6MM | 311 | 311B0600 | 1 | ||
NUT 10MM | 315 | 315B1000 | 2 | ||
WASHER PLAIN 6MM | 410 | 410B0600 | 1 | ||
WASHER SPRING 10MM | 461 | 461F1000 | 2 | ||
PIN COTTER 2.0X15 | 550 | 550D2015 | 1 | ||
PIN,SNAP | 554 | 554A0800 | 2 |
