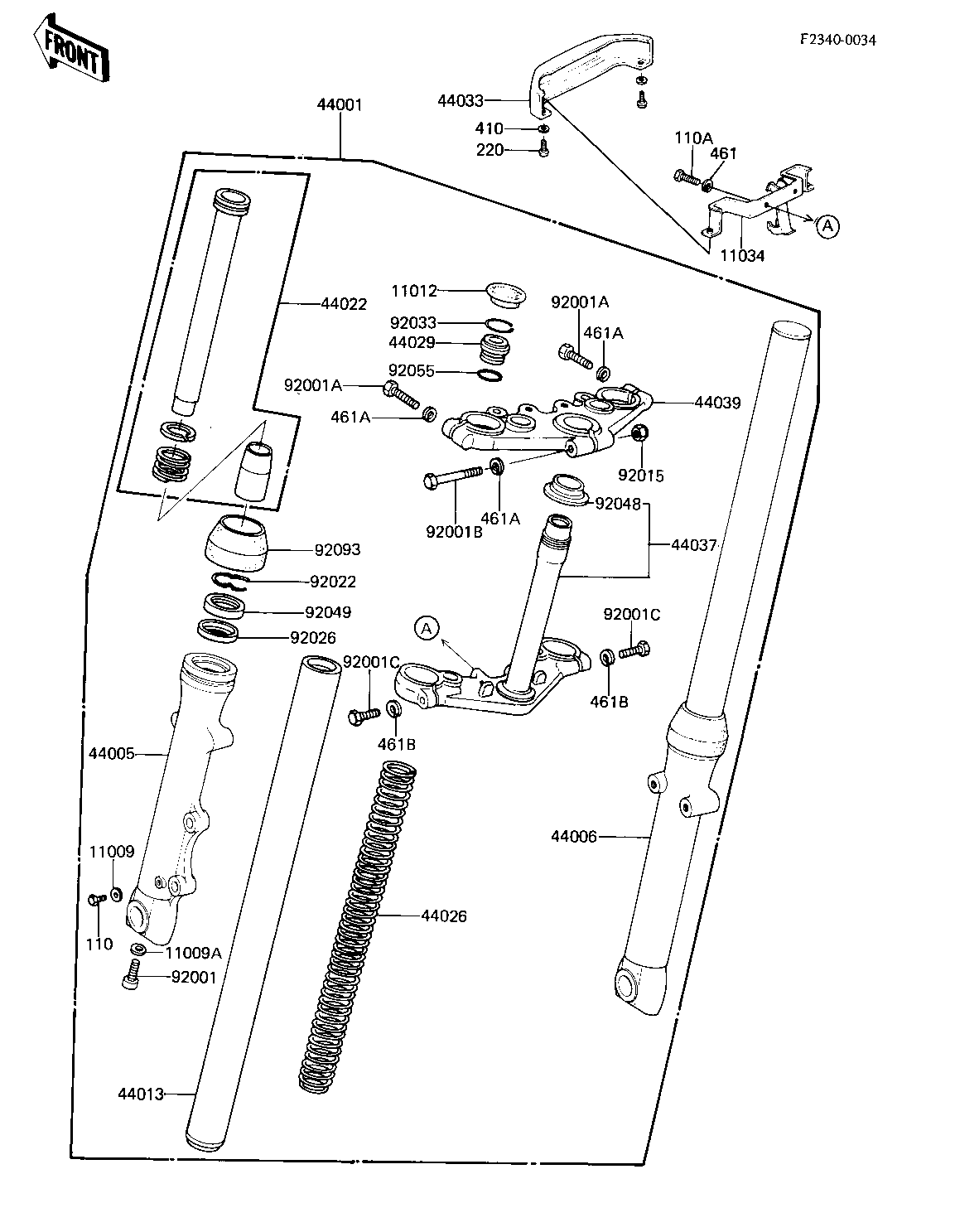

1982 CSR - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN PLUG 11009 44045-047 2
GASKET,FORK CYL BOLT 11009A 44045-051 2
CAP,RUBBER,FORK TOP 11012 11012-1021 2
BRACKET,FORK COVER 11034 11034-1758 1
FORK-FRONT 44001 44001-1196 1
TUBE,LH,FORK OUTER 44005 44005-1053 1
TUBE,RH,FORK OUTER 44006 44006-1053 1
TUBE,FORK INNER 44013 44013-1025 2
CYLINDER-FORK 44022 44022-1048 2
SPRING,FORK INNER 44026 44026-1102 2
GUIDE,SPRING 44029 44029-022 1
COVER-FORK 44033 44033-1062 1
STEM,STEERING 44037 44037-1014 1
HOLDER-FORK UPPER 44039 44039-1012 1
BOLT,FORK CYLINDER 92001 44041-078 2
BOLT,HEX HEAD,8X40 92001A 92001-1063 2
BOLT,HEX HEAD,8X55 92001B 92001-1064 1
BOLT,HEX HEAD 10X35 92001C 92001-1252 2
NUT,LOCK,8MM 92015 92015-1124 1
RING,OIL SEAL STOPER 92022 44043-057 2
SPACER,FORK 92026 92026-1005 2
CIRCLIP 92033 44044-023 2
CONE STRNG STEM BERNG 92048 92047-006 1
OIL SEAL,FORK 92049 92049-1077 2
"O" RING 92055 44046-025 2
DUST SHIELD,FORK 92093 92093-1063 2
BOLT HEX HEAD 6X8 110 110B0608 2
BOLT-UPSET,6X12 110A 112G0612 2
SCREW PAN HEAD 4X10 220 220B0410 2
WASHER PLAIN 4MM 410 410B0400 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 8MM 461A 461F0800 3
WASHER SPRING 10MM 461B 461F1000 2
