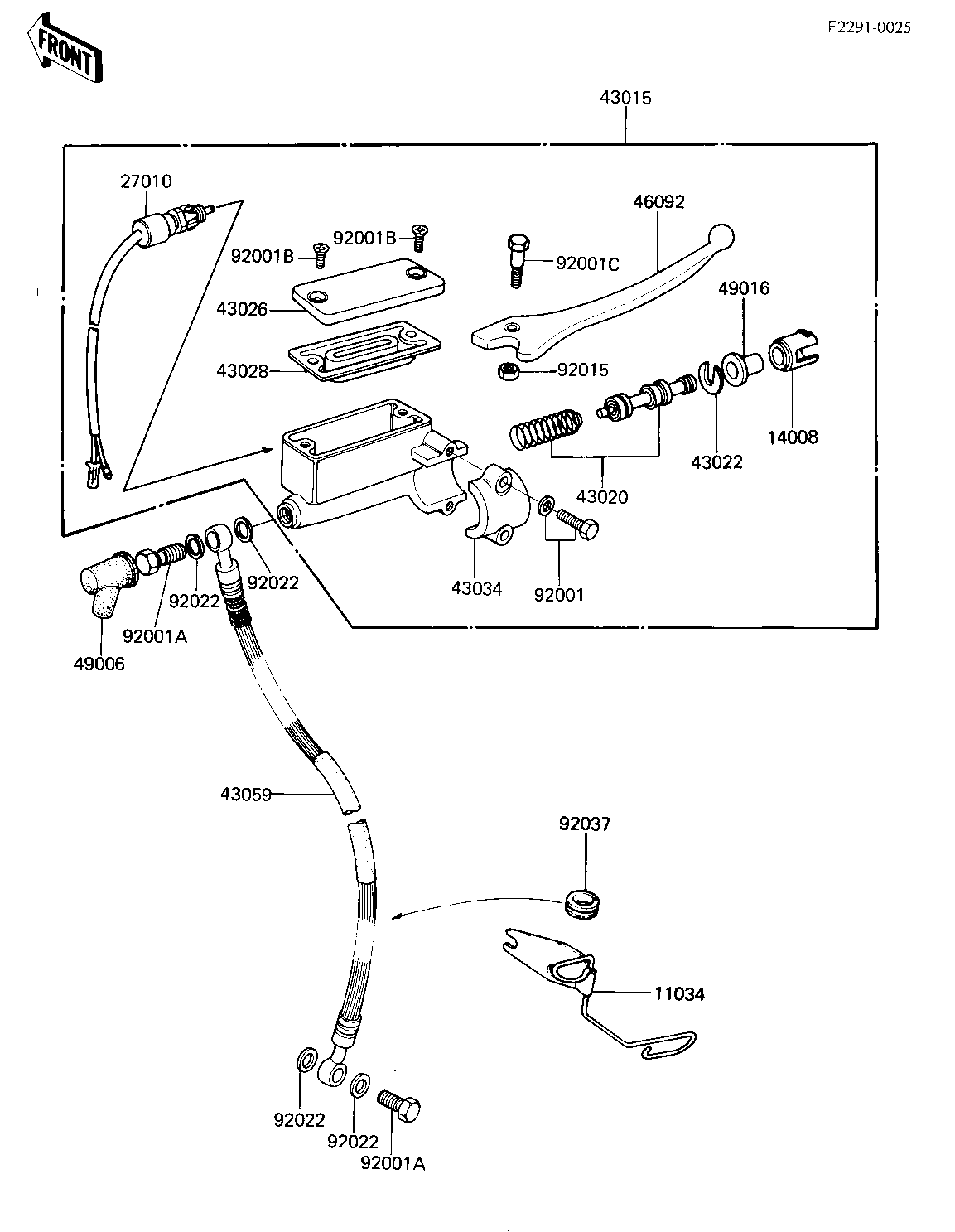

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET,FRONT FENDER | 11034 | 11034-1573 | 1 | ||
LINER,PISTON | 14008 | 14008-1007 | 1 | ||
SWITCH,BRAKE | 27010 | 27010-1028 | 1 | ||
CYLINDER ASSY,MASTER | 43015 | 43015-1044 | 1 | ||
PISTON-COMP-BRAKE | 43020 | 43020-1026 | 1 | ||
STOPER,PISTON | 43022 | 43022-1001 | 1 | ||
CAP,OIL CUP | 43026 | 43026-1006 | 1 | ||
DIAPHRAGM | 43028 | 43028-1008 | 1 | ||
HOLDER,MASTER CYLINDR | 43034 | 43034-1001 | 1 | ||
HOSE-BRAKE,FR,L=1010 | 43059 | 43059-1207 | 1 | ||
LEVER,FRONT BRAKE | 46092 | 46092-1009 | 1 | ||
BOOT,DUST | 49006 | 49006-1041 | 1 | ||
DUST COVER | 49016 | 49016-1010 | 1 | ||
BOLT,HEX HEAD,6X25 | 92001 | 43033-003 | 2 | ||
BOLT,OIL,L=23 | 92001A | 92002-1888 | 2 | ||
SCREW,COUNTERSUNK HED | 92001B | 92001-1055 | 2 | ||
BOLT,CLUTCH LEV FITT | 92001C | 92001-1056 | 1 | ||
NUT 6MM | 92015 | 312B0600 | 1 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
DAMPER RUBBER,CYL HSE | 92037 | 43064-006 | 1 |
BRACKET,FRONT FENDER | |
REF # | 11034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LINER,PISTON | |
REF # | 14008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SWITCH,BRAKE | |
REF # | 27010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER ASSY,MASTER | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON-COMP-BRAKE | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPER,PISTON | |
REF # | 43022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,OIL CUP | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,MASTER CYLINDR | |
REF # | 43034 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,FR,L=1010 | |
REF # | 43059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER,FRONT BRAKE | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOOT,DUST | |
REF # | 49006 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUST COVER | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,6X25 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,COUNTERSUNK HED | |
REF # | 92001B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH LEV FITT | |
REF # | 92001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT 6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-OIL BOLT | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,CYL HSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
