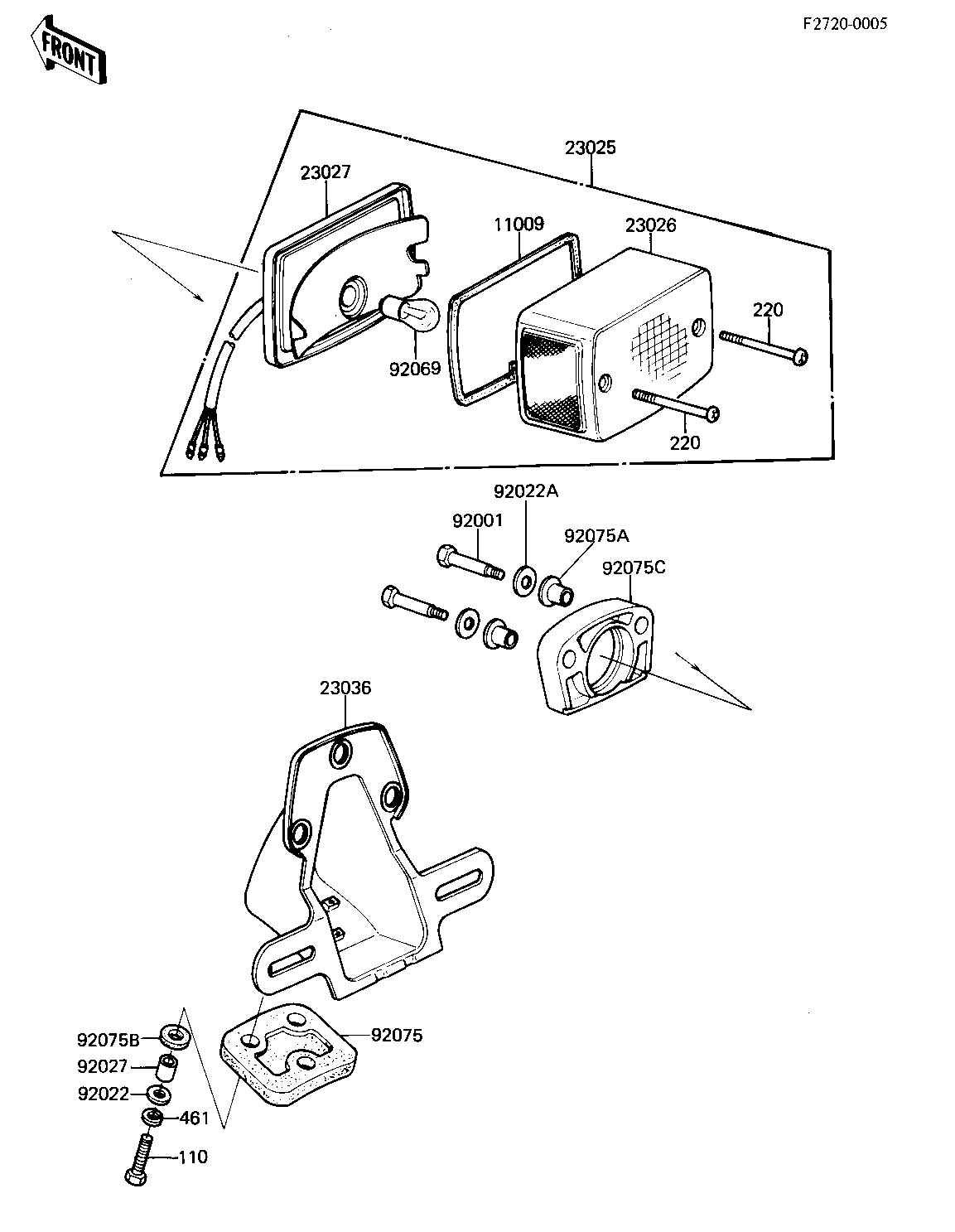

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP LENS 11009 11009-1078 1
TAIL LAMP UNIT 23025 23025-1033 1
LENS,TAIL LAMP 23026 23026-1003 1
CASE,TAIL LAMP 23027 23027-1020 1
BRACKET,TAIL LAMP 23036 23036-1024 1
BOLT,TAIL LAMP FITTNG 92001 92001-1322 2
WASHER 6.5X20X1.6T 92022 92022-125 3
WASHER,8.5X20X1.6 92022A 92022-1561 2
COLLAR 6.8X10X14.5 92027 92027-156 3
BULB,12V 32/3CP 92069 92069-059 1
DAMPER RUBBER,RR FEND 92075 35039-004 1
DAMPER RUBBER 92075A 92075-1162 2
DAMPER RUBBER,RR FEND 92075B 92075-121 3
DAMPER RUBBER,TAIL 92075C 92075-1251 1
BOLT-UPSET 110 112G0625 3
SCREW-PAN-CROS,4X40 220 220R0440 2
WASHER SPRING 6MM 461 461F0600 3
