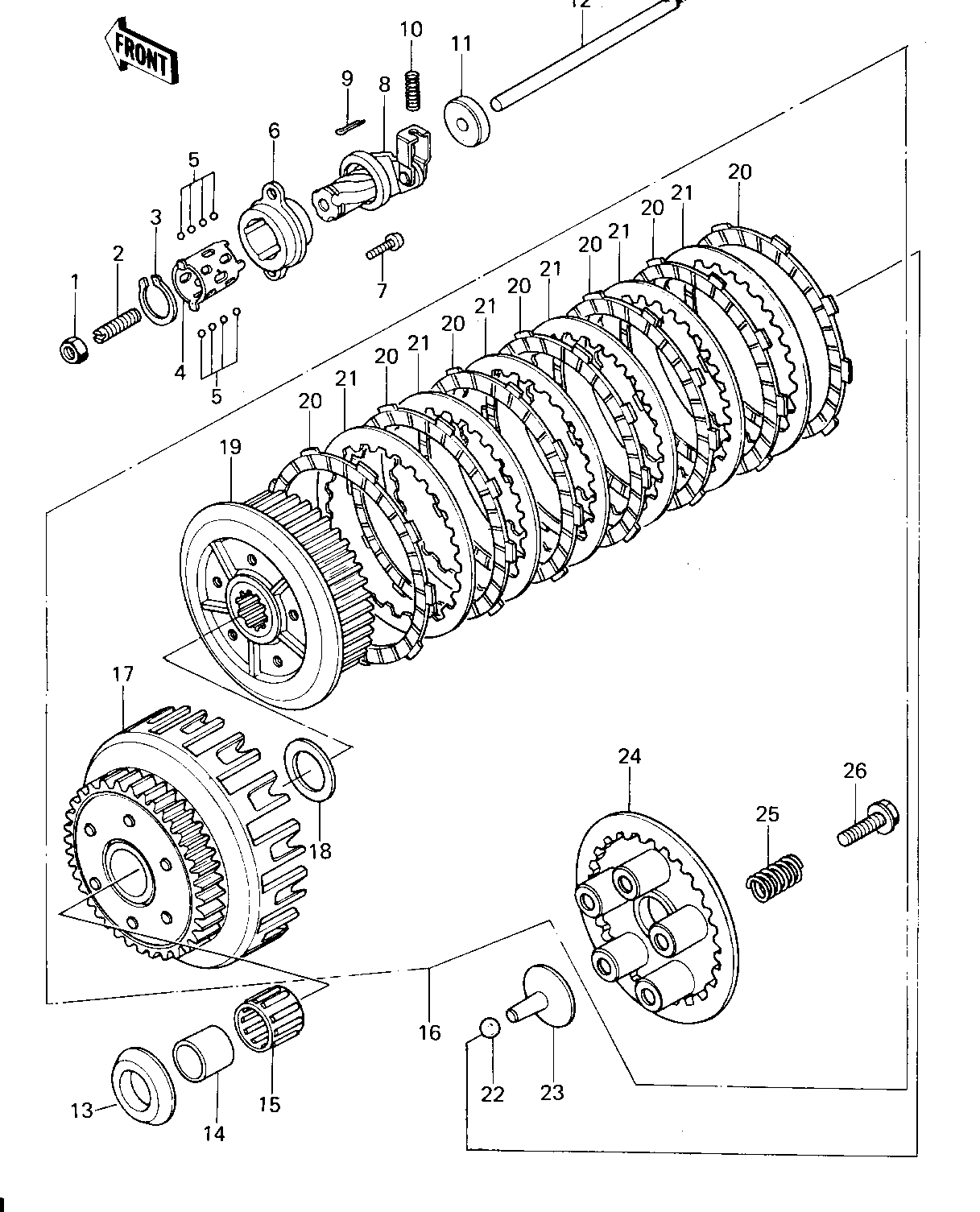

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT 8MM | 1 | 318B0800 | 1 | ||
SCREW,SLOTTED,8X25 | 2 | 92014-014 | 1 | ||
CIRCLIP 15MM | 3 | 480J1500 | 1 | ||
RETAINER | 4 | 13197-004 | 1 | ||
BALL,STEEL,1/8" | 5 | 600A0400 | 11 | ||
OUTER,CLUTCH RELEASE | 6 | 13118-011 | 1 | ||
SCREW PAN HEAD 6X16 | 7 | 220B0616 | 2 | ||
INNER,CLUTCH RELEASE | 8 | 13102-027 | 1 | ||
PIN COTTER 1.6X15 | 9 | 550D1615 | 1 | ||
SPRING-CLUTCH RELEASE | 10 | 92081-069 | 1 | ||
OIL SEAL,TC7187 | 11 | 92050-048 | 1 | ||
ROD,CLUTCH PUSH | 12 | 13116-035 | 1 | ||
SPACER,THRUST,T=5.5MM | 13 | 92026-116 | 1 | ||
BUSHING,CLUTCH | 14 | 92028-178 | 1 | ||
BEARING,KTV323723 | 15 | 92046-028 | 1 | ||
CLUTCH-ASSY | 16 | 13081-1043 | 1 | ||
CLUTCH-ASSY | 16 | 13081-1043 | 1 | ||
HOUSING,CLUTCH | 17 | 13095-1022 | 1 | ||
HOUSING,CLUTCH | 17 | 13095-1022 | 1 | ||
WASHER TH 25.5X47X2.5 | 18 | 92026-022 | 1 | ||
HUB,CLUTCH | 19 | 13087-043 | 1 | ||
PLATE,CLUTCH FRICTION | 20 | 13088-030 | 7 | ||
PLATE,CLUTCH STEEL | 21 | 13089-022 | 6 | ||
BALL STEEL 3/8' | 22 | 600A1200 | 1 | ||
PUSHER,CLUTCH SPRG PL | 23 | 13116-022 | 1 | ||
PLATE,CLUTCH SPRING | 24 | 13187-006 | 1 | ||
SPRING,CLUTCH | 25 | 92081-1033 | 5 | ||
SPRING,CLUTCH | 25 | 92081-1033 | 5 | ||
BOLT,CLUTCH SPR FITT | 26 | 92001-1066 | 5 |
