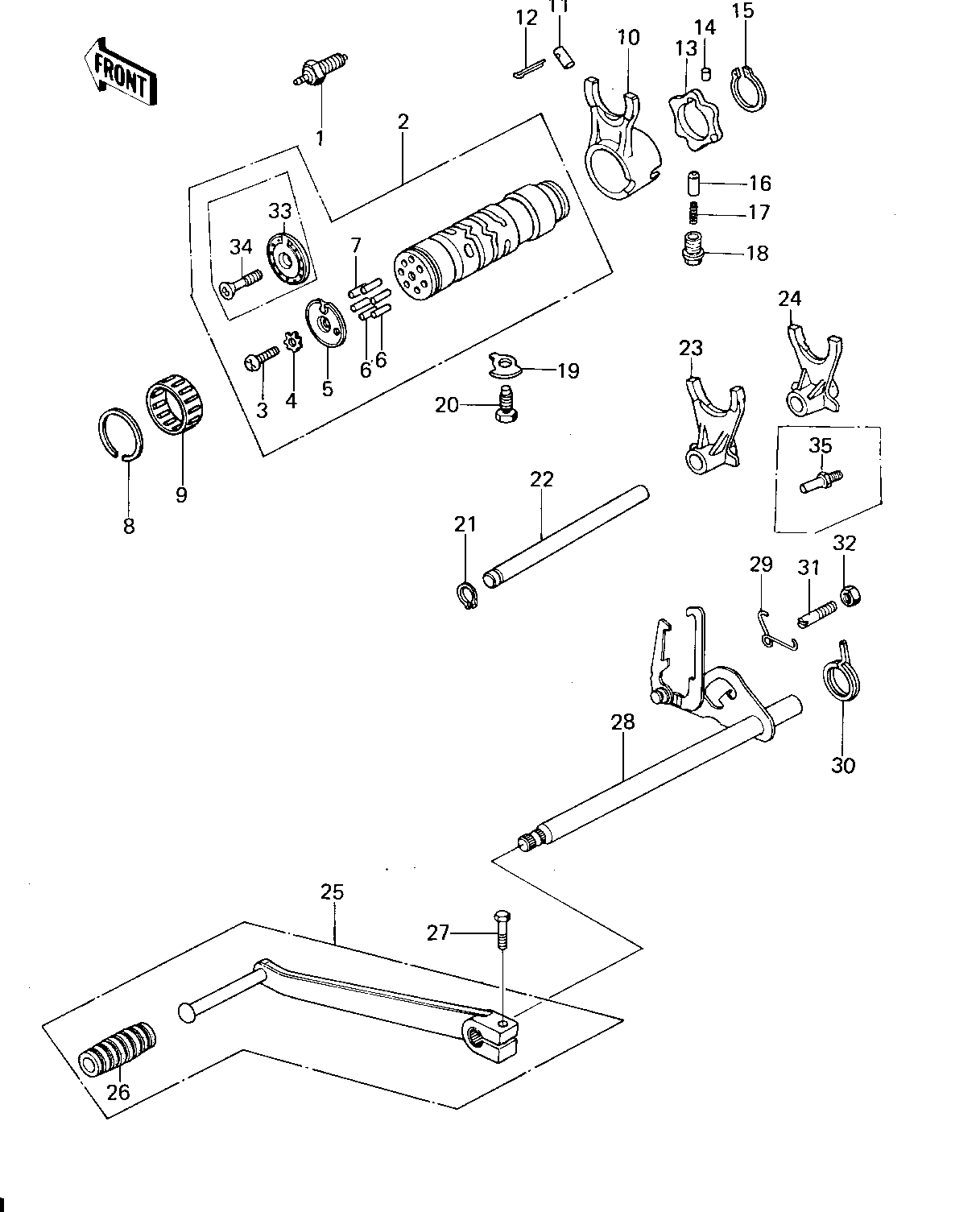

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SWITCH,NEUTRAL | 1 | 13151-5002 | 1 | ||
DRUM ASSY,SHIFT | 2 | 13239-1005 | 1 | E/NO.000101~045147 | |
DRUM ASSY,SHIFT | 2 | 13239-1005 | 1 | ||
DRUM-ASSY-CHANGE | 2 | 13239-1069 | 1 | E/NO.046001~078381 | |
DRUM-ASSY-CHANGE | 2 | 13239-1069 | 1 | E/NO.078382~ | |
SCREW PAN HEAD 6X14 | 3 | 220B0614 | 1 | USE FOR 13239-025/-1005/-1008 | |
WASHER LOCK 6MM | 4 | 464G0600 | 1 | USE FOR 13239-025/-1005/-1008 | |
PLATE,SHIFT DRUM PIN | 5 | 13142-020 | 1 | USE FOR 13239-025/-1005/-1008 | |
PIN,GEAR CHNGE DRUM | 6 | 92042-030 | 5 | ||
PIN GEAR CHANGE DRUM | 7 | 92042-014 | 1 | ||
CIRCLIP,37MM | 8 | 92033-035 | 1 | ||
BRG,NEDL,37BTM4312 | 9 | 92046-051 | 1 | ||
SHIFT FORK,4TH & TOP | 10 | 13140-1009 | 1 | KZ650-B1 | |
SHIFT FORK,4TH & TOP | 10 | 13140-1009 | 1 | KZ650-B2~ | |
DOWEL PIN,8X18 | 11 | 92042-021 | 1 | ||
PIN COTTER 3.0X20 | 12 | 550D3020 | 1 | ||
CAM-CHANGE DRUM | 13 | 13145-1058 | 1 | ||
PIN-DOWEL,4X6 | 14 | 610A0406 | 1 | ||
CIRCLIP,30MM | 15 | 480J3000 | 1 | ||
PIN-NEUTRAL POSITION | 16 | 92043-076 | 1 | ||
SPRING | 17 | 92081-112 | 1 | ||
BOLT,10MM | 18 | 92001-131 | 1 | ||
WASHER,LOCK,10MM | 19 | 92024-074 | 1 | ||
BOLT,HEX HEAD,10X26 | 20 | 92001-174 | 1 | ||
CIRCLIP 12MM | 21 | 480J1200 | 1 | ||
ROD-SHIFT | 22 | 49047-5003 | 1 | ||
SHIFT FORK,LOW,2&3RD | 23 | 13140-1008 | 1 | KZ650-B1 | |
SHIFT FORK,LOW,2&3RD | 23 | 13140-1008 | 1 | KZ650-B2~ | |
SHIFT FORK,LOW | 24 | 13140-069 | 1 | KZ650-B1 | |
SHIFT FORK,LOW,2&3RD | 24 | 13140-1008 | 1 | KZ650-B2~ | |
PEDAL ASSY,GEAR SHIFT | 25 | 13242-022 | 1 | ||
DAMPER,CHANGE PEDAL | 26 | 92160-1036 | 1 | ||
BOLT-UPSET,6X20 | 27 | 112G0620 | 1 | ||
LEVER ASSY,GEAR SFT | 28 | 13161-042 | 1 | ||
SPRING,KICK PAWL | 29 | 92083-018 | 1 | ||
SPRING,CHG PEDL RTRN | 30 | 92083-028 | 1 | ||
PIN CHANGE PEDAL SPRG | 31 | 92043-057 | 1 | KZ650-B1/B2/B2A | |
NUT 8MM | 32 | 312B0800 | 1 | KZ650-B1/B2/B2A | |
HOLDER,CHANGE DRUM PI | 33 | 13091-1104 | 1 | USE FOR 13239-1019 | |
SCREW CNTSNK HD 6X20 | 34 | 221B0620 | 1 | USE FOR 13239-1019 | |
BOLT,RETURN SPRING | 35 | 92001-1401 | 1 | KZ650-B3 |
