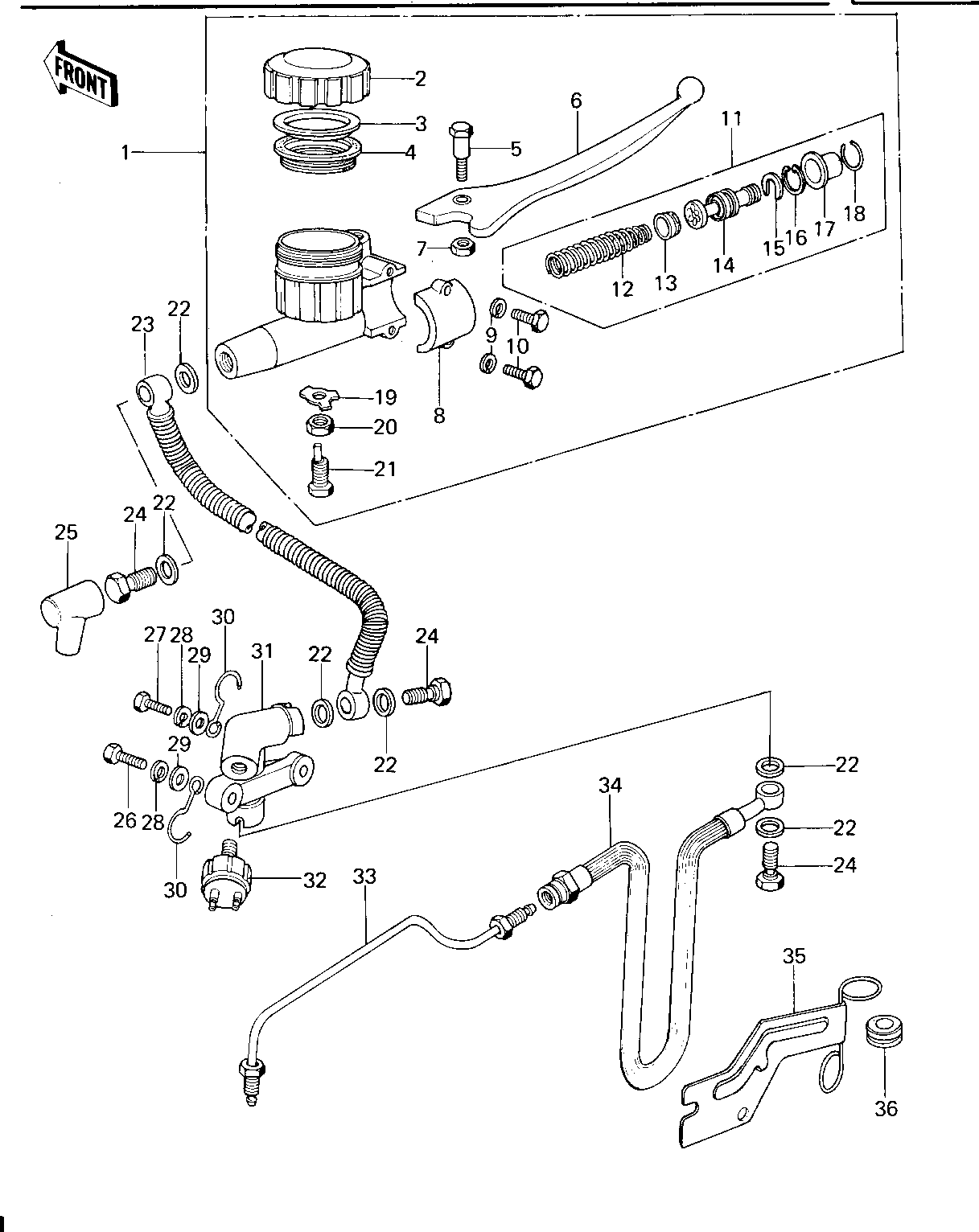

1979 KZ650-B3 - FRONT MASTER CYLINDER (KZ650-B1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CYLINDER ASSY,MASTER | 1 | 43015-032 | 1 | ||
CAP,OIL CUP | 2 | 43026-003 | 1 | ||
PLATE-MASTER CYLINDER | 3 | 43027-001 | 1 | ||
DIAPHRAGM | 4 | 43028-001 | 1 | ||
BOLT | 5 | 43033-004 | 1 | ||
LEVER,FRONT BRAKE | 6 | 43029-003 | 1 | ||
NUT 6MM | 7 | 312B0600 | 1 | ||
HOLDER-MASTER CYL | 8 | 43034-001 | 1 | ||
WASHER PLAIN 6MM | 9 | 411B0600 | 2 | ||
BOLT HEX HEAD 6X25 | 10 | 110N0625 | 2 | ||
REPAIR SET-MASTER CYL | 11 | 43073-001 | 1 | ||
SPRING ASSY-RETURN | 12 | 43018-001 | 1 | ||
CUP-PRIMARY | 13 | 43019-001 | 1 | ||
PISTON ASSY | 14 | 43072-001 | 1 | ||
STOPPER-PISTON | 15 | 43022-001 | 1 | ||
CIRCLIP,18MM | 16 | 481J1800 | 1 | ||
BOOTS | 17 | 43024-001 | 1 | ||
STOPPER-BOOTS | 18 | 43025-001 | 1 | ||
WASHER-LOCK,8MM | 19 | 43031-001 | 1 | ||
NUT,8MM | 20 | 311B0800 | 1 | ||
BOLT,LEVER ADJUSTING | 21 | 43030-003 | 1 | ||
WASHER-OIL BOLT | 22 | 43067-001 | 6 | ||
HOSE,M/C BRAKE | 23 | 43059-032 | 1 | L=360 M/M | |
BOLT,OIL,L=23 | 24 | 92002-1888 | 3 | ||
BOOT,DUST | 25 | 49006-1041 | 1 | ||
BOLT-HEX HEAD,6X32 | 26 | 110N0632 | 1 | ||
BOLT, HEX HEAD 6X22 | 27 | 110N0622 | 1 | ||
WASHER SPRING 6MM | 28 | 461F0600 | 2 | ||
WASHER PLAIN 6MM | 29 | 411B0600 | 2 | ||
CLAMP,CABLE | 30 | 92037-092 | 2 | ||
JOINT,THREE WAY | 31 | 43061-002 | 1 | ||
SWITCH-FRONT BRAKE | 32 | 43065-001 | 1 | ||
PIPE,BRIDGE | 33 | 43060-021 | 1 | ||
HOSE-BRAKE,L=350 | 34 | 43059-1262 | 1 | ||
BRACKET-BRAKE HOSE | 35 | 43063-001 | 1 | ||
GROMMET-HOSE BRACKET | 36 | 43064-001 | 1 |
