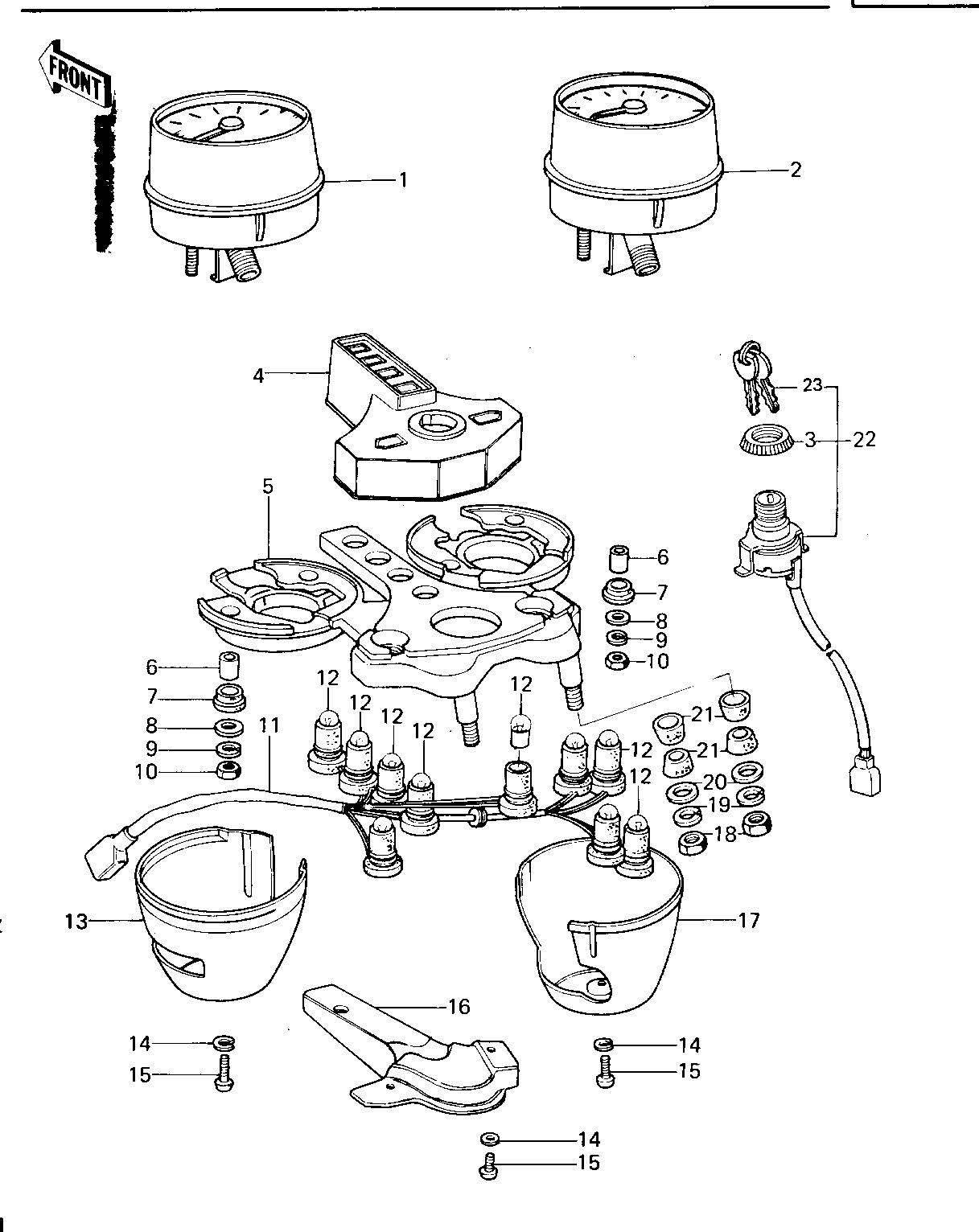

1978 KZ650-B2A - METERS/IGNITION SWITCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER,MPH 1 25006-052 1 KZ650-B1
SPEEDOMETER ASSY,KPH (Canada) 1 25005-1013 1 KZ650-B2 ~
SPEEDO ASSY,KPH (Canada) 1 25006-054 1 KZ650-B1
SPEEDOMETER,MPH 1 25005-1037 1 KZ650-B2/B2A
SPEEDOMETER,MPH 1 25005-1037 1 KZ650-B3
TACHOMETER 2 25027-011 1 KZ650-B1
TACHOMETER ASSY 2 25015-1011 1 KZ650-B2 ~
NUT,IGNITION SW LOCK 3 27007-004 1
COVER,METER,INDICATER 4 25023-015 1
BRACKET,METER 5 25008-045 1
COLLAR,METER 6 92027-211 4
RUBBER,METER 7 92075-172 4
WASHER,PLAIN,5MM 8 92022-241 4
WASHER SPRING 5MM 9 461F0500 4
NUT 5MM 10 312B0500 4
SOCKET,SPEEDOMETER 11 25011-049 1
SOCKET,SPEEDOMETER 12 25011-049 10
COVER,SPEEDOMETER 13 25012-010 1
WASHER SPRING 3MM 14 461F0300 5
SCREW PAN HEAD 3X8 15 220B0308 5
COVER,METER BRACKET 16 25024-006 1
COVER,TACHOMETER 17 25012-011 1
NUT,8MM 18 311B0800 2
WASHER SPRING 8MM 19 461F0800 2
WASHER PLAIN 8MM 20 411B0800 2
DAMPER RUBBER 21 92075-080 4
SWITCH,IGNITION 22 27005-083 1 KZ650-B1
SWITCH ASSY,IGNITION 22 27005-5001 1 KZ650-B2/B2A
SWITCH ASSY,IGNITION 22 27005-5007 1 KZ650-B3
KEY SET,#801 23 27008-068-01 1
KEY SET,#845 23 27008-068-45 1
KEY,BLANK 23 27008-1014 AR KZ650-B1/B2/B2A
KEY-LOCK,BLANK 23 27008-1103 AR KZ650-B3
