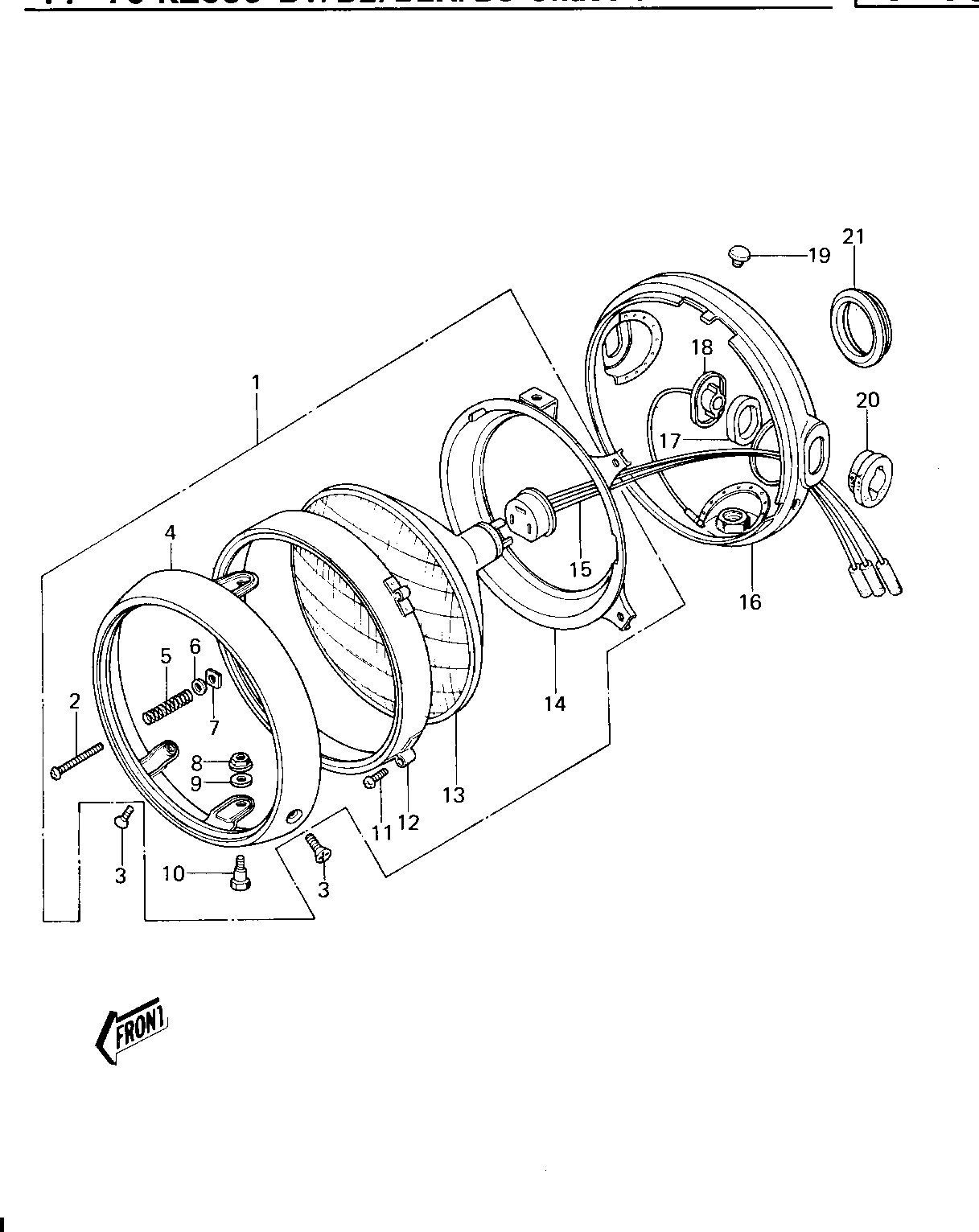

1978 KZ650-B2A - HEADLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT,HEAD 1 23003-017 1
SCREW FORCUS ADJUST 2 23019-021 1
SCREW,PAN HEAD,5X14 3 23019-022 2
RIM,HEAD LAMP 4 23006-038 1
SPRING FOCUS ADJUST 5 23014-005 1
WASHER 6 23021-004 1
NUT,4MM 7 23020-018 1
NUT,HEAD LAMP RIM FIT 8 23020-023 2
WASHER-PLAIN,5MM 9 23021-012 2
SCREW-PAN HEAD,5X12 10 23019-023 2
SCREW PAN HEAD 3X12 11 220B0312 2
RING,HEAD LAMP MOUNT 12 23072-001 1
SEALD BEAM UNIT 13 23007-041 1
RING,HEAD LAMP MOUNT 14 23074-001 1
SOCKET ASSY,HEAD LAMP 15 23008-037 1
BODY-COMP-HEAD LAMP 16 23005-1015-21 1 FLAT BLACK
BODY-COMP-HEAD LAMP 16 23005-1015-21 1 FLAT BLACK
DAMPER RUBBER 17 23066-016 2
COLLAR 18 23076-005 2
PLUG REAR FENDER RUBB 19 92074-006 1
DAMPER RUBBER 20 23066-015 2
GROMMET 21 92071-1008 1 USE FOR 23005-1004-21
