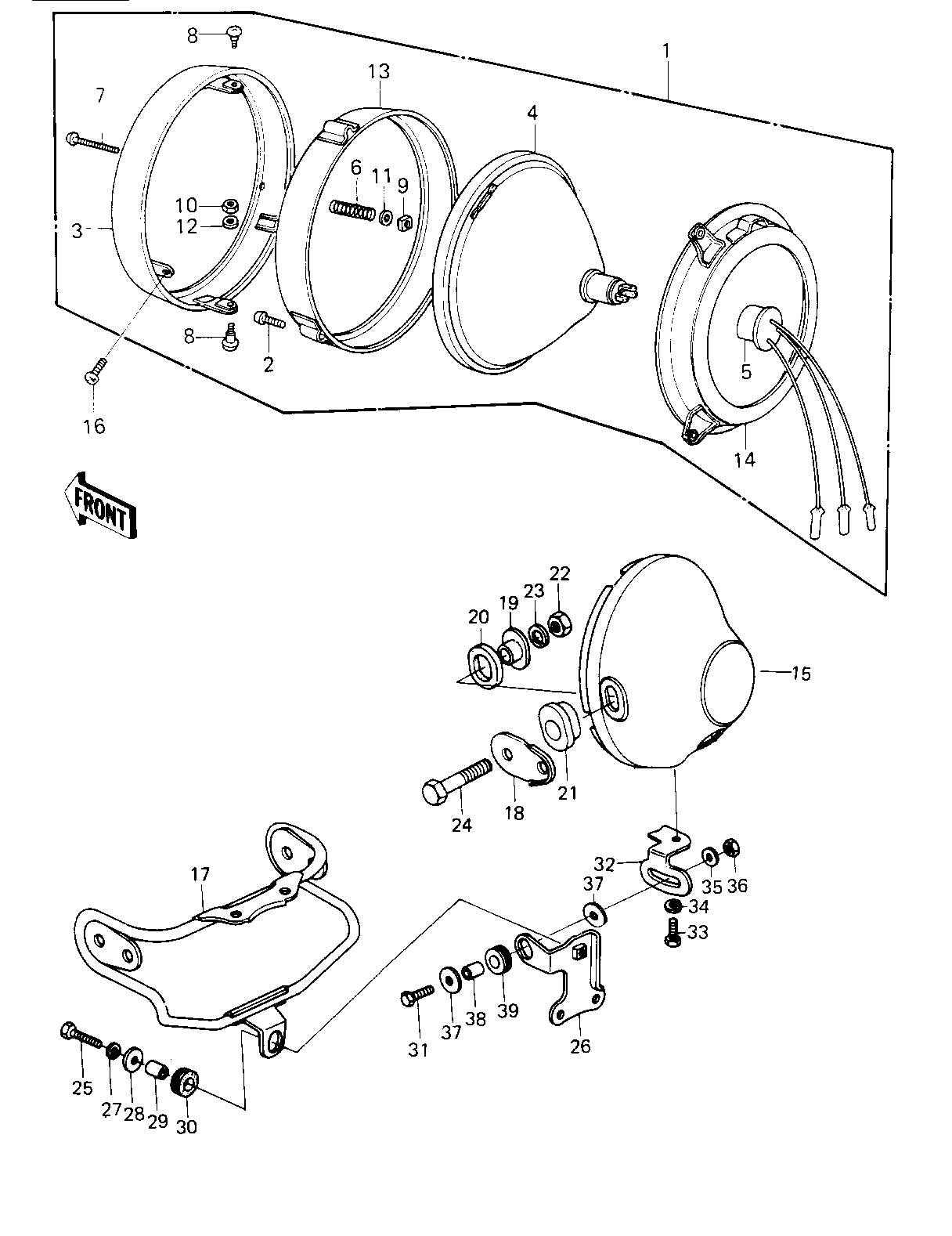

1980 LTD II - HEADLIGHT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP UNIT,HEAD 1 23003-017 1
SCREW PAN HEAD 3X12 2 220B0312 2
RIM,HEAD LAMP 3 23006-038 1
SEALD BEAM UNIT 4 23007-041 1
SOCKET ASSY,HEAD LAM 5 23008-037 1
SPRING FOCUS ADJUST 6 23014-005 1
SCREW FORCUS ADJUST 7 23019-021 1
SCREW-PAN HEAD,5X12 8 23019-023 2
NUT,4MM 9 23020-018 1
NUT,HEAD LAMP RIM FI 10 23020-023 2
WASHER 11 23021-004 1
WASHER-PLAIN,5MM 12 23021-012 2
RING,HEAD LAMP MOUNT 13 23072-001 1
RING,HEAD LAMP MOUNT 14 23074-001 1
BODY-COMP-HEAD LAMP 15 23005-1016 1
SCREW,PAN HEAD,5X14 16 23019-022 2
BRACKET HEAD LAMP 17 11034-1365 1
PLATE,METER BRACKET 18 13169-1141 2
COLLAR,HEAD LIGHT 19 23052-011 2
DAMPER RUBBER 20 23066-021 2
DAMPER RUBBER 21 23066-022 2
NUT 10MM 22 315B1000 2
WASHER SPRING 10MM 23 461F1000 2
BOLT,10MM 24 92007-024 2
BOLT-UPSET 25 112G0625 1
BRACKET,METER 26 11034-1366 1
WASHER SPRING 6MM 27 461F0600 1
WASHER 6.5X20X1.6T 28 92022-125 1
COLLAR 29 92027-241 1
DAMPER RUBBER,RR FEN 30 92075-209 1
BOLT-UPSET 31 112G0630 1
BRACKET 32 11034-1676 1
BOLT-SMALL-UPSET,8X1 33 115G0816 1
WASHER SPRING 8MM 34 461F0800 1
WASHER PLAIN 6MM 35 411B0600 1
NUT,LOCK 6MM 36 92017-014 1
WASHER 6.5X20X1.6T 37 92022-125 2
COLLAR 38 92027-241 1
DAMPER RUBBER,RR FEN 39 92075-209 1
