Parts Diagrams |

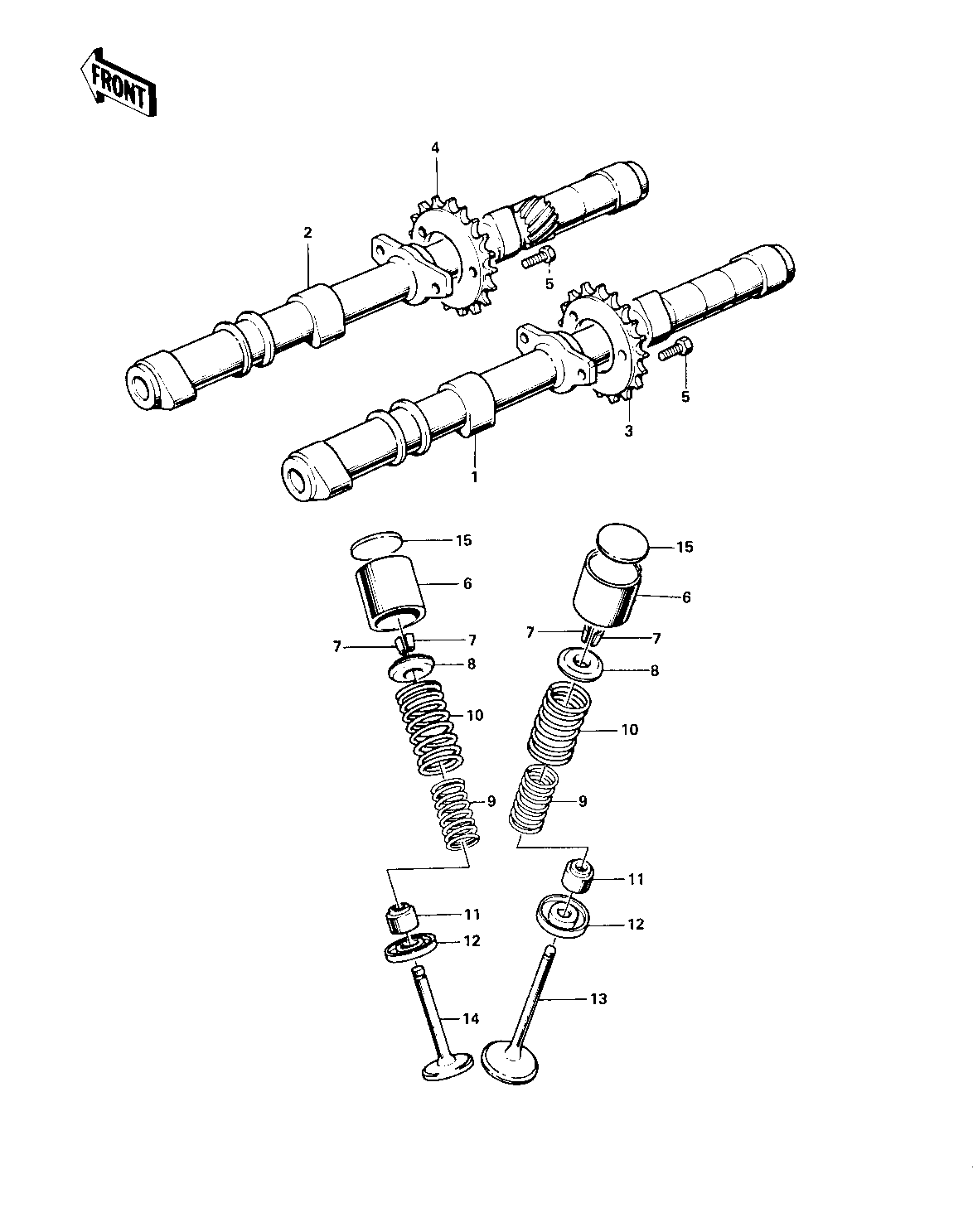

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT,INLET | 1 | 12044-014 | 1 | ||
CAMSHAFT,INLET | 1 | 12044-014 | 1 | ||
CAMSHAFT,EXHAUST | 2 | 12044-015 | 1 | ||
CAMSHAFT,EXHAUST | 2 | 12044-015 | 1 | ||
SPROCKET,INLET CAMSHAFT | 3 | 12046-001 | 1 | ||
SPROCKET,EXHAUST CAMSHAFT | 4 | 12046-002 | 1 | ||
BOLT,HEX HEAD 6X10 | 5 | 92003-141 | 6 | ||
TAPPET | 6 | 12032-005 | 8 | ||
COLLAR,VALUE SPRING | 7 | 12011-002 | 16 | ||
RETAINER,VALVE SPRING | 8 | 12009-005 | 8 | ||
SPRING,INNER VALVE | 9 | 12007-011 | 8 | ||
SPRING,OUTER VALVE | 10 | 12007-012 | 8 | ||
OIL SEAL,RV371295 | 11 | 92049-016 | 8 | ||
SEAT,VALVE SPRING | 12 | 12010-004 | 8 | ||
VALVE,INLET | 13 | 12004-012 | 4 | ||
VALVE,EXHAUST | 14 | 12005-005 | 4 | ||
SHIM,TAPPET,2.00T | 15 | 12037-001 | AR | ||
SHIM,TAPPET,2.05T | 15 | 12037-002 | AR | ||
SHIM,TAPPET,2.10T | 15 | 12037-003 | AR | ||
SHIM,TAPPET,2.15T | 15 | 12037-004 | AR | ||
SHIM,TAPPET,2.20T | 15 | 12037-005 | AR | ||
SHIM,TAPPET,2.25T | 15 | 12037-006 | AR | ||
SHIM,TAPPET,2.30T | 15 | 12037-007 | AR | ||
SHIM,TAPPET,2.35T | 15 | 12037-008 | AR | ||
SHIM,TAPPET,2.40T | 15 | 12037-009 | AR | ||
SHIM,TAPPET,2.45T | 15 | 12037-010 | AR | ||
SHIM,TAPPET,2.50T | 15 | 12037-011 | AR | ||
SHIM,TAPPET,2.55T | 15 | 12037-012 | AR | ||
SHIM,TAPPET,2.60T | 15 | 12037-013 | AR | ||
SHIM,TAPPET,2.65T | 15 | 12037-014 | AR | ||
SHIM,TAPPET,2.70T | 15 | 12037-015 | AR | ||
SHIM,TAPPET,2.75T | 15 | 12037-016 | AR | ||
SHIM,TAPPET,2.80T | 15 | 12037-017 | AR | ||
SHIM,TAPPET,2.85T | 15 | 12037-018 | AR | ||
SHIM,TAPPET,2.90T | 15 | 12037-019 | AR | ||
SHIM,TAPPET,2.95T | 15 | 12037-020 | AR | ||
SHIM,TAPPET,3.00T | 15 | 12037-021 | AR | ||
SHIM,TAPPET,3.05T | 15 | 12037-022 | AR | ||
SHIM,TAPPET,3.10T | 15 | 12037-023 | AR | ||
SHIM,TAPPET,3.15T | 15 | 12037-024 | AR | ||
SHIM,TAPPET 3.20T | 15 | 12037-025 | AR |
