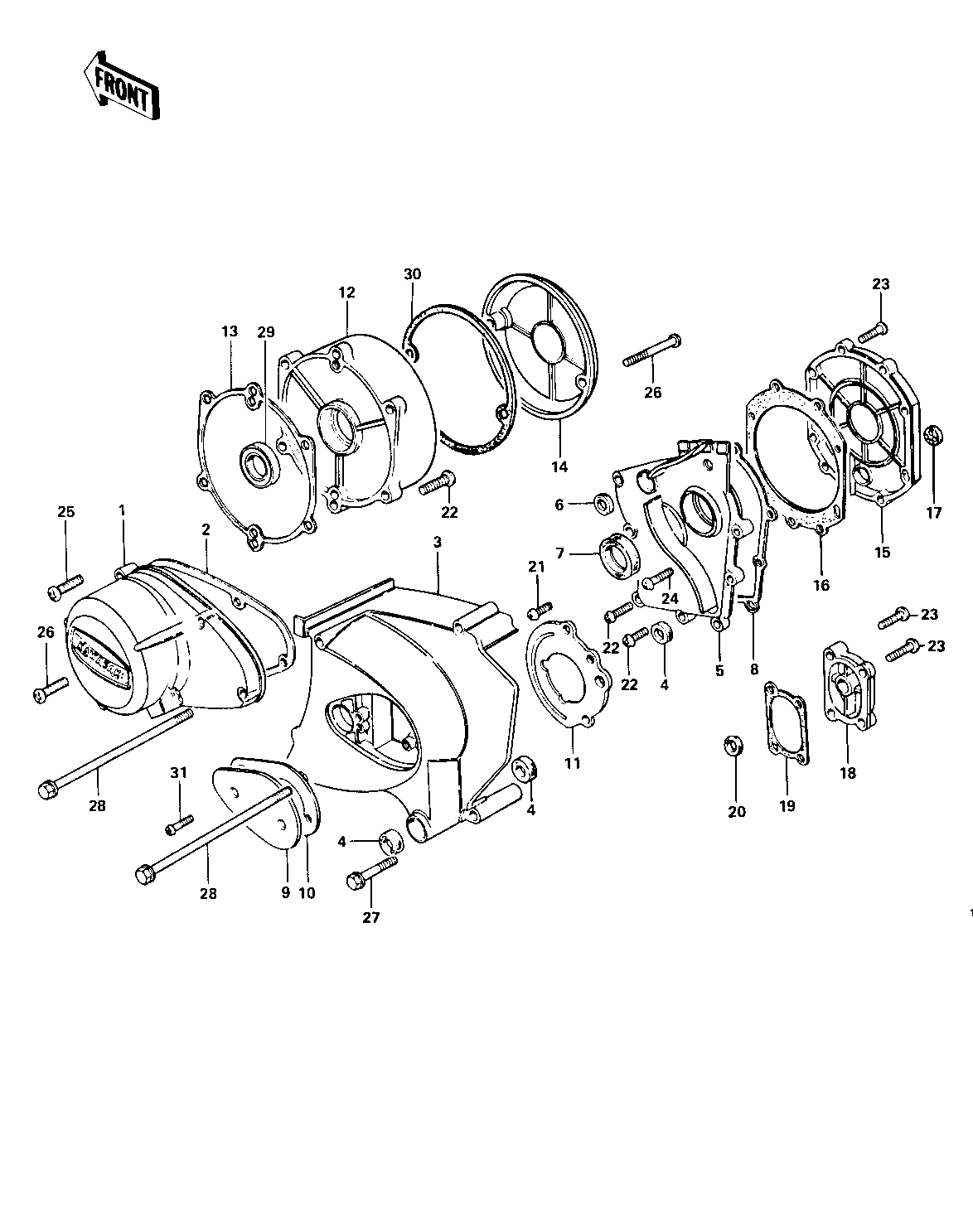

1976 KZ900-A4 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,L.H ENGINE 1 14031-1020 1
COVER,L.H ENGINE 1 14031-1020 1
GASKET,L.H. ENGINE COVER 2 14045-014 1
COVER,FRONT CHAIN 3 14026-026 1
OIL SEAL SB12205 4 92049-004 3
COVER,TRANSMISSION 5 14025-1106 1
OIL SEAL,TC7187 6 92050-048 1
OIL SEAL SC325210 7 92050-024 1
GASKET,MISSION COVER 8 14058-004 1
COVER,CLUTCH ADJUSTER 9 14026-012 1
GASKET,ADJUSTER COVER 10 14045-015 1
COVER,ENGINE SPROCKET 11 14024-008 1
COVER,R.H ENGINE 12 14032-083 1
GASKET,RH ENGINE COVE 13 14046-023 1
COVER,CONTECT BREAKER 14 14027-023-80 1
COVER,CLUTCH 15 14032-121 1
GASKET,CLUTCH 16 14046-024 1
GAUGE,OIL LEVEL 17 52015-004 1
COVER,KICK SHAFT,BARL 18 14032-075-2H 1
GASKET,KICK COVER 19 14046-025 1
OIL SEAL,SB22325.5 20 92049-1048 1
SCREW,PAN HEAD,6X12 21 220B0612 2
SCREW PAN HEAD 6X22 22 220B0622 11
SCREW PAN HEAD 6X25 23 220B0625 11
SCREW PAN HEAD 6X28 24 220B0628 1
SCREW PAN HEAD 6X30 25 220B0630 7
SCREW PAN HEAD 6X40 26 220B0640 8
BOLT,6X71 27 110G0671 2
BOLT-UPSET,6X125 28 110G06125 2
OIL SEAL,S25407R 29 92050-047 1
GASKET,POINT CAP 30 14050-006 1
SCREW PAN HEAD 6X12 31 220B0612 2
