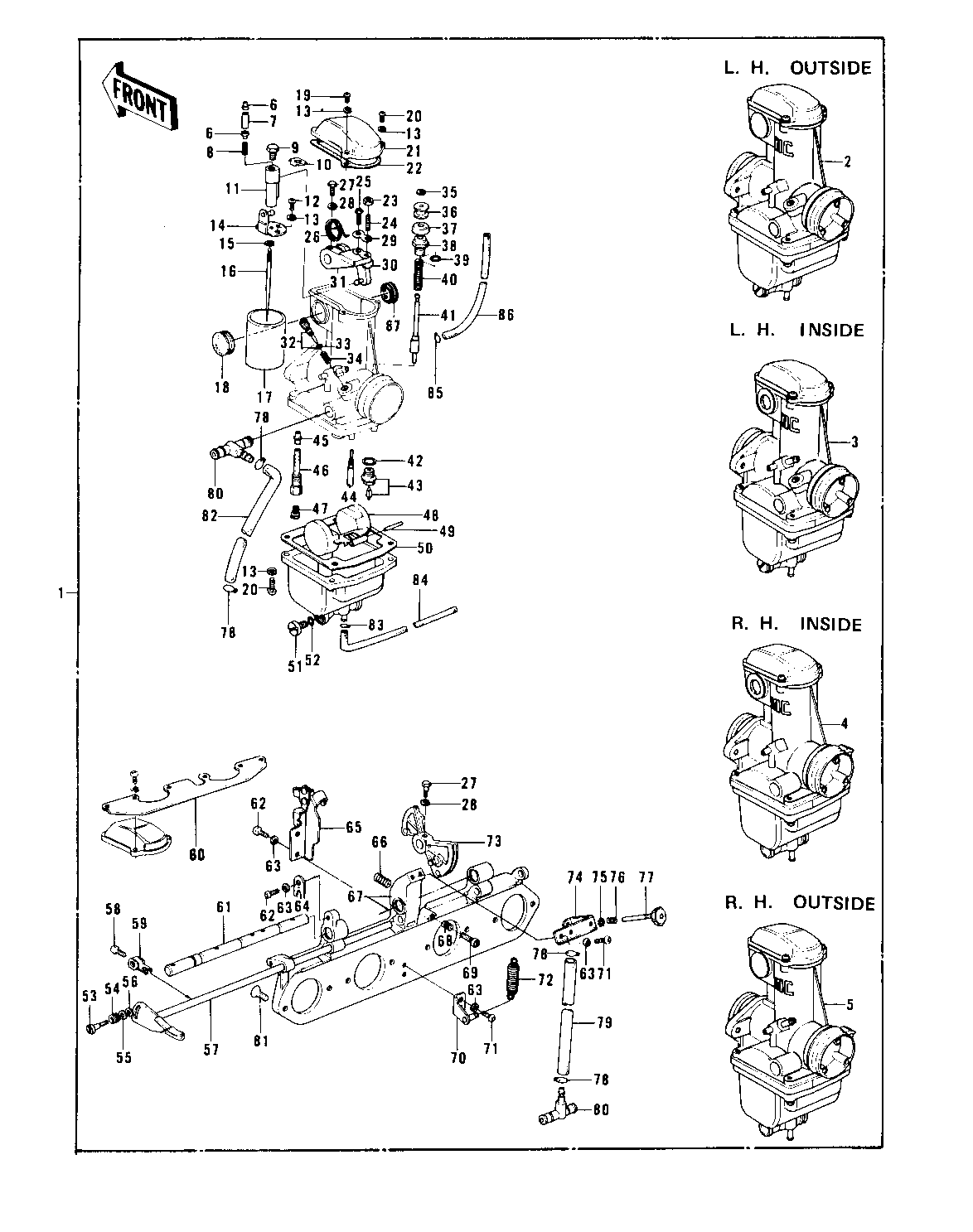

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CARBURETOR ASSY | 1 | 16001-255 | 1 | ||
CARBURETOR,L.H OUTSID | 2 | 16001-268 | 1 | ||
CARBURETOR,L.H INSIDE | 3 | 16001-269 | 1 | ||
CARBURETOR,R.H INSIDE | 4 | 16001-270 | 1 | ||
CARBURETOR,R.H OUTSID | 5 | 16001-271 | 1 | ||
SEAT,SPRING | 6 | 16057-002 | 8 | ||
PIN | 7 | 16042-009 | 4 | ||
SPRING | 8 | 16040-004 | 4 | ||
BOLT | 9 | 16067-008 | 4 | ||
WASHER,LOCK | 10 | 16054-003 | 4 | ||
SHAFT,THROTTLE VALVE | 11 | 16052-003 | 4 | ||
SCREW,PAN HEAD 4X12 | 12 | 16033-015 | 8 | ||
WASHER SPRING 4MM | 13 | 461F0400 | 36 | ||
PLATE,THROTTLE VALVE | 14 | 16007-018 | 4 | ||
CIRCLIP,JET NEEDLE | 15 | 16008-004 | 4 | ||
JET NEEDLE,5DL3 | 16 | 16009-071 | 4 | ||
VALVE,THROTTLE CAL,5 | 17 | 16025-075 | 4 | ||
CAP,RUBBER | 18 | 16039-042 | 2 | ||
SCREW ,PAN HEAD 4X14 | 19 | 16033-013 | 6 | ||
SCREW ,PAN HEAD 4X16 | 20 | 16033-009 | 22 | ||
TOP,MIXING CHAMBER | 21 | 16005-027 | 4 | ||
GASKET,CHAMBER TOP | 22 | 16019-031 | 4 | ||
NUT,5MM | 23 | 16003-013 | 4 | ||
SCREW,LEVER | 24 | 16046-009 | 4 | ||
BOLT,4X16 | 25 | 16067-009 | 4 | ||
SPRING,LEVER | 26 | 16040-021 | 4 | ||
BOLT,HEX HEAD,5X14 | 27 | 16067-006 | 5 | ||
WASHER SPRING 5MM | 28 | 461F0500 | 5 | ||
WASHER,PLATE | 29 | 16054-008 | 4 | ||
LEVER,THROTTLE | 30 | 16068-013 | 4 | ||
LEVER | 31 | 16068-012 | 4 | ||
SCREW,PILOT ADJUSTING | 32 | 16014-017 | 4 | ||
"O" RING | 33 | 16038-022 | 4 | ||
SPRING-THR STOP SCREW | 34 | 16022-007 | 4 | ||
CIRCLIP | 35 | 16076-003 | 4 | ||
COLLAR | 36 | 16073-014 | 4 | ||
CAP,STARTER PLUNGER | 37 | 16039-015 | 4 | ||
CAP,STARTER PLUNGER | 38 | 16012-015 | 4 | ||
"O" RING,9MM | 39 | 670B1509 | 4 | ||
SPRING,STARTER PLUG | 40 | 16013-008 | 4 | ||
PLUNGER,STARTER | 41 | 16016-017 | 4 | ||
WASHER FLOAT VLV SEAT | 42 | 16029-004 | 4 | ||
FLOAT VALVE ASSY | 43 | 16030-027 | 4 | ||
PILOT JET,#17.5 | 44 | 92064-042 | 4 | ||
NEEDLE JET,0-6 | 45 | 16017-093 | 4 | ||
HOLDER,NEEDLE JET | 46 | 16047-004 | 4 | ||
JET-MAIN NO 115R | 47 | 92063-076 | 4 | STD | |
MAIN JET,#110R | 47 | 92063-074 | (4 | ||
JET-MAIN NO 112.5R | 47 | 92063-075 | (4 | ||
JET-MAIN NO 117.5R | 47 | 92063-077 | (4 | ||
MAIN JET NO 120R | 47 | 92063-078 | (4 | ||
FLOAT | 48 | 16031-031 | 4 | ||
FLOAT PIN | 49 | 16032-003 | 4 | ||
GASKET,FLOAT CHAMBER | 50 | 16019-030 | 4 | ||
SCREW GUIDE | 51 | 16049-005 | 4 | ||
"0" RING,GUIDE SCREW | 52 | 16038-016 | 4 | ||
SCREW | 53 | 16046-005 | 1 | ||
SPRING | 54 | 16040-009 | 1 | ||
WASHER,PLAIN,STEEL | 55 | 16039-020 | 1 | ||
WASHER,PLAIN,NYLON | 56 | 16039-019 | 1 | ||
SHAFT,STARTER PLUNGER | 57 | 16041-016 | 1 | ||
SCREW,PAN HEAD | 58 | 16046-007 | 4 | ||
LEVER,STARTER PLUNGER | 59 | 16068-014 | 4 | ||
PLATE,CARB CONNECTION | 60 | 16065-040 | 1 | ||
SHAFT,CARB CONNECTION | 61 | 16041-017 | 1 | ||
SCREW,PAN HEAD,5X14 | 62 | 16033-016 | 5 | ||
WASHER SPRING 5MM | 63 | 461F0500 | 7 | ||
PLATE,SHAFT STOPPER | 64 | 16055-012 | 1 | ||
BRACKET,CABLE PULLY | 65 | 16077-014 | 1 | ||
SPRING,CABLE PULLY | 66 | 16040-022 | 1 | ||
HOLDER,CARB MOUNTING | 67 | 16065-039 | 1 | ||
SPRING | 68 | 16022-010 | 1 | ||
ADJUSTER | 69 | 16021-020 | 1 | ||
BRACKET,CABLE PULLY | 70 | 16077-012 | 1 | ||
SCREW,BRACKET FITTING | 71 | 16033-016 | 2 | ||
SPRING,CABLE PULLY | 72 | 16040-020 | 1 | ||
PULLY,THROTTLE CABLE | 73 | 16068-011 | 1 | ||
HOLDER,THROTTLE SCREW | 74 | 16077-013 | 1 | ||
WASHER LOCK 5MM | 75 | 464H0500 | 1 | ||
SPRING,THR STOP SCREW | 76 | 16022-009 | 1 | ||
SCREW,THROTTLE STOP | 77 | 16021-028 | 1 | ||
CLAMP, FUEL HOSE | 78 | 92037-072 | 4 | ||
HOSE,FUEL I.D=6.5MM,L=260MM | 79 | 92059-084 | 1 | ||
NIPPLE,FUEL PIPE | 80 | 16046-002 | 2 | ||
SCREW,6X14 | 81 | 16033-029 | 8 | ||
HOSE,FUEL, I.D.=6.5MM, L=140MM | 82 | 92059-085 | 1 | ||
CLAMP,OVERFLOW HOSE | 83 | 92037-173 | 4 | ||
HOSE,FUEL OVERFLOW,I.D.=3.5MM | 84 | 92059-134 | 4 | ||
CLAMP,BREATHER HOSE | 85 | 92037-174 | 2 | ||
HOSE,BREATHER, I.D.=5MM | 86 | 92059-135 | 2 | ||
GROMMET,CARB | 87 | 92071-102 | 6 |
